Cladding Roll
Verified by manufacturer 2 months ago
Non-combustible insulation for built-up metal walls and roofs.
Application
Suitable for use as an economical solution for projects that require dimensionally stable, consistent thermal performance in both roof and wall applications.
Description

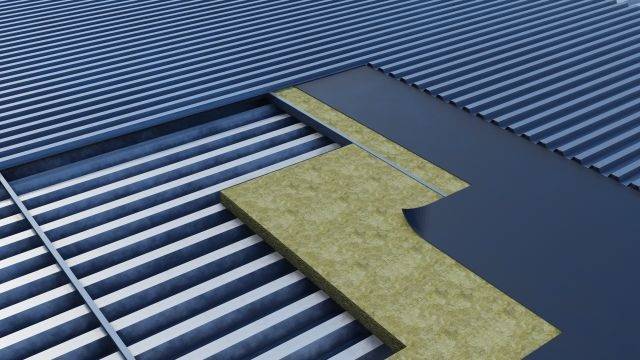

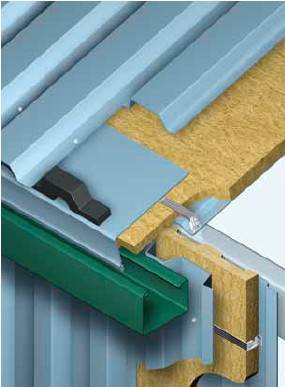

Cladding Roll is a stone wool insulation specifically developed for use within twin skin systems. In addition to thermal comfort, the product provides independently tested acoustic and fire resistance properties.
Features and benefits:
- Non-combustible Euroclass A1 Water repellent yet breathable.
- Tested to provide up to four hours' integrity in a typical twin-skin system.
- Acoustically tested in-situ to provide up to Rw 38 dB.
- Stone wool is dimensionally stable and will provide the same performance for more than 55 years after installation (consult manufacturer for further details).
- Can be recycled and reprocessed, reducing landfill costs, with zero ozone depletion potential (ODP) and global warming potential (GWP).
General information
Color | Brown |
Material | Mineral wool |
Shape | Rectangle |
Length | Bespoke 2700 mm 3200 mm 4000 mm 4800 mm |
Width | Bespoke 1000 mm 1200 mm |
Height | Bespoke 60 mm 80 mm 100 mm 120 mm |
Uniclass | |
CAWS | H30/10 Fibre cement H30/311 Mineral wool thermal insulation H30/40 Thermal insulation H31/254 Acoustic insulation H31/271 Mineral wool thermal insulation H31/50 Mineral wool thermal insulation P10/220 Sound insulation within timber framed separating wall |
Specification data - Mineral wool insulation
General requirements | Insulation products generally. |
Standard | To BS EN 13162 and ISO 14001. |
Thickness (minimum) | 60 mm.80 mm.100 mm.120 mm.150 mm.160 mm.180 mm. |
Thermal conductivity (maximum) | 0.040 W/mK. |
Fire performance | To BS EN 13501-1, class A1. |
Water vapour resistance | 5.9 MNs/gm. |
Size: | 60 x 1200 x 3200 mm. 80 x 1200 x 5000 mm. 100 x 1200 x 4800 mm. 120 x 1200 x 4000 mm. 150 x 1200 x 3200 mm. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Mineral wool |
Recyclability | Can be recycled Manufacturer guidanceROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 3 |
 ARCHICAD | - | 1 |
 Revit | Revit 2016 | 4 |
 AECOsim | - | 1 |
 Vectorworks | - | 1 |
