Circular Cycle Rack
Description

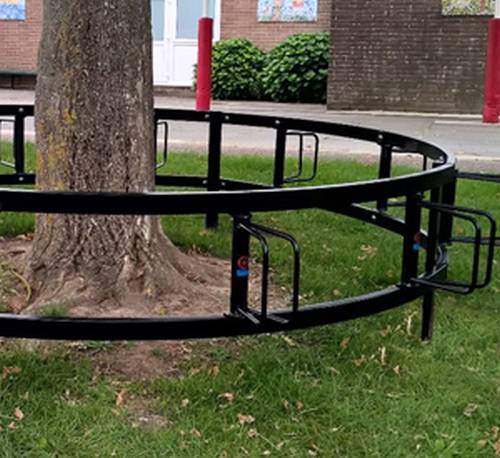

Based upon the highly popular R90 cycle holder, the Circular Cycle Rack provides secure cycle storage for up to 12 bicycles. An excellent way of incorporating cycle parking onto a busy site, this round cycle rack is manufactured from carbon steel which is galvanized as standard to ensure its longevity. The tyre of the bicycle is gripped by the holder’s arms and can be secured to the rack by the owner’s lock. The holders are positioned at 90° from the stand to allow for easy access from all angles.

Features:

  • Main construction of galvanized carbon steel.
  • Available flanged for only. Must be bolted to an appropriate concrete surface using 12 mm bolts (available separately).
  • Holders protrude 537 mm from the stand.

General information
Features

Main construction of galvanized carbon steel

Available flanged for only. Must be bolted to an appropriate concrete surface using 12 mm bolts (available separately)

Holders protrude 537 mm from the stand

Uniclass 2015
Pr_40_30_21_12 Carbon steel cycle standsPrimary
CAWS

Q50/210 Cycle stands

Specification data - Carbon steel cycle stands
Product Reference

F90 Curved Cycle Rack (3 holders): 138200075

Full Circle Cycle Rack (12 holders): 138200077

Reinforcement

Not required

Required

Standard product features

Dimensions:

  • Above ground: 525 mm.
  • Below ground: 300 mm.
  • Quarter circle width: 1665 mm.
  • Full circle width: 2650 mm.

Weight:

  • F90 Curved Cycle Rack (three holders): 17.5 kg.
  • Full Circle Cycle Rack (12 holders): 60.0 kg.

Product Options

Colour/ Finish:

Galvanized finish as standard. Colour coated options are available (please state RAL/BS numbers).
