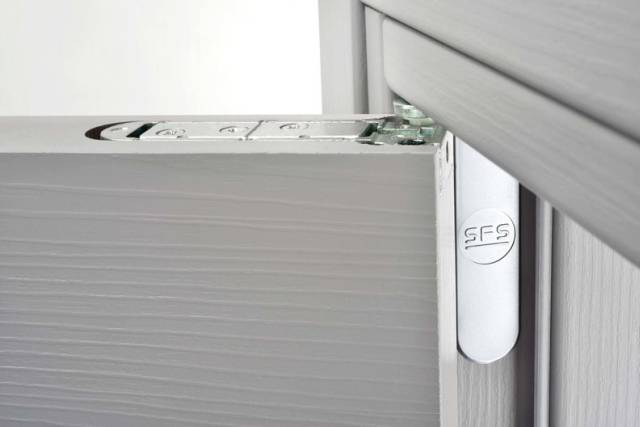

CIR Pivot Door Hinge

Application

Suitable for timber doors into timber frame applications; for applications where door openings do not need to exceed 110 degrees.


Description

CIR pivot door hinges, suitable for door leafs in excess of 40 mm.

Manufactured from steel and zamak.

The top and bottom pivots have self-lubricating bushes to offer unobstructed maintenance and free movement of the door leaf. The innovative design simplifies the installation process.

The hinges have passed the 200 000 cycle test with a 70 kg door. Suggested maximum load per pair of hinges is 70 kg.


Features and benefits:

  • Adjustable pivot hinge.
  • Designed to easily fit into the extreme top and bottom corners of the door set. Offering 110 degree opening of the door, whilst maintaining aesthetics.
  • Suitable for door leaf thickness of 40–45 mm.

General information

Color

Silver

Gold

Finish

Metallic

Material

Steel

Metal

WarrantyDescription

Consult manufacturer.

-

Uniclass 2015

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/385 Pivot hinges

Specification data - Cranked hinges Enhanced data

Material and finish

Steel/ zamak.

Various finishes contact manufacturer.

Colour

Brassed metallic effect.

Matt chrome metallic effect.

Product Reference

CIR Pivot Door Hinge

Environmental information

Country of material origin

Italy
