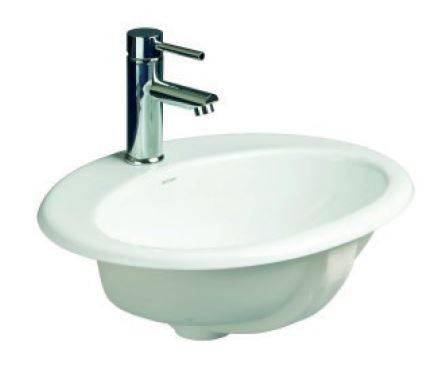

Chartham Counter Top 530 Washbasin
Verified by manufacturer 5 months ago
Chartham 530mm countertop vanity basin, central tap hole with overflow.
Application
Suitable for all sectors excluding healthcare.
Description
SanCeram Chartham 530mm countertop vanity basin with central tap hole and overflow.
Features and benefits:
- Sleek, modern design.
- Bottom outlet for ease of maintenance.
- Template provided in box.
- Suitable for all sectors excluding healthcare.
General information
Color | White Guidance for specification option: Alpine white. |
Finish | Smooth Guidance for specification option: Alpine white. |
Material | Vitreous china Guidance for specification option: To BS 3402. |
Length | 530 mm |
Width | 435 mm |
Height | 225 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/341 Vanity tops with formed washbasins N10/145 Vanity and washroom furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Countertop washbasins
Form | Vanity top (inset). |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Size | 530 x 435 x 225 mm.Guidance for specification option: L x B x H (bowl depth). |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. |
Weight | 8 kg. |
Waste options | TSWC101. Guidance for specification option: 1 ¼” strainer waste 80 mm, slotted. TSWC103. Guidance for specification option: 1 ¼” swivel waste, slotted. TSWC105. Guidance for specification option: 1 ¼” plug and chain waste, slotted tail. TSWC107. Guidance for specification option: 1 ¼” click clack waste, slotted. |
Trap | A10R. Guidance for specification option: 1 1/4” resealing plastic bottle trap. TSWC112. Guidance for specification option: 1 1/4” metal bottle trap. TSWC114. Guidance for specification option: 1 1/4” modern metal bottle trap. |
