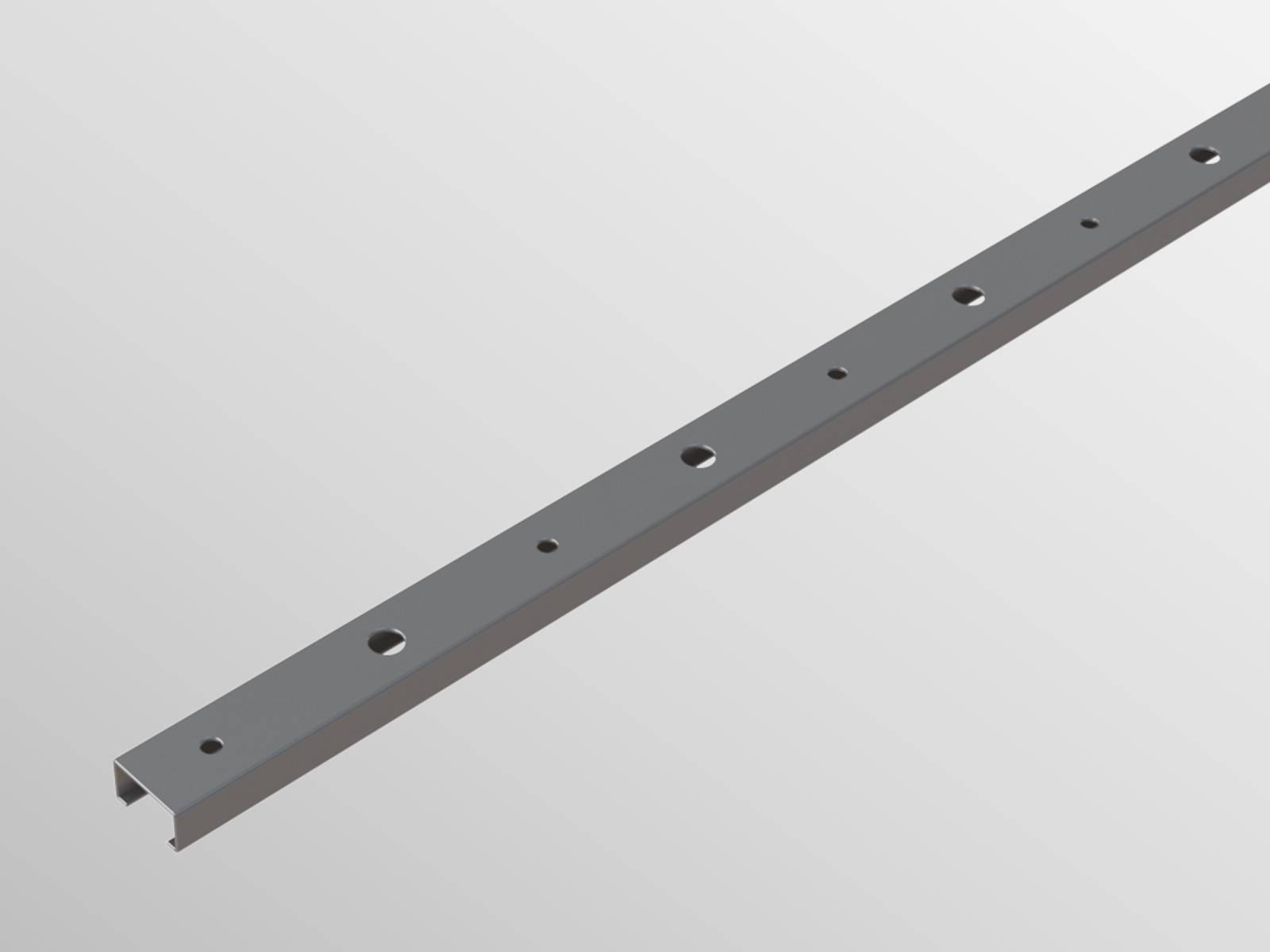

SFC 25/14 steel frame channel

Vista Engineering Ltd Variant:

A range of channels for use with slot ties to allow vertical movement whilst providing horizontal restraint.

Jump to:
+44 (0)1663 736700 Website

Application

Ties offering vertical movement with horizontal restraint.

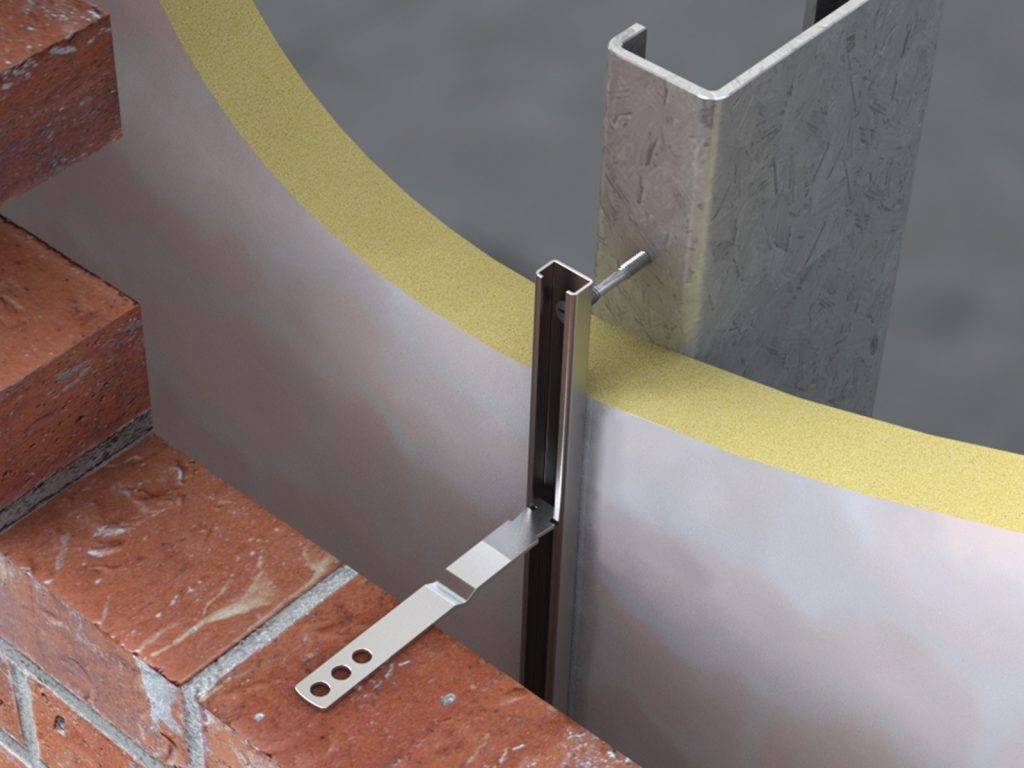

Suitable for tying masonry to steel frame, concrete or brickwork/blockwork.

Description

A range of channels for use with slot ties to allow vertical movement whilst providing horizontal restraint.


Features and benefits:

  • SFC - Ties an outer leaf of masonry to a steel frame or concrete whilst restraining insulation.
  • V29 - Cast in dovetail slot channel.
  • V60 - Surface fixed (welded) channel.
  • V60S - Slotted back channel for mechanical fixing.
  • V60T - Tanged back channel for casting into concrete or building into brick / blockwork.
  • These systems may be used to overcome differences in coursing between masonry leaves.
  • Manufactured from grade 304 stainless steel.
  • Behaviour in relation to fire: non-combustible (as defined in the national Building Regulations).
  • Durability: excellent corrosion resistance and a service life of not less than 60 years.

General information

Color

Silver

Material

Stainless steel

Guidance for specification option:

Channels only. Fixings may vary.

Polystyrene

Uniclass

Pr_20_85_84_87 Surface-mounted channelsPrimary
Pr_20_85_84_84 Stainless steel cast-in channels

CAWS

E42/320 Cast-in sockets

F30/40 Surface-mounted channels/ slots

F30/242 Surface-mounted channels/ slots

E42/340 Channels and slots

E42/320 Cast-in sockets

Specification data - Surface-mounted channels

Material

Stainless steel.

Fixing type

SELF - self-tapping fixings for use with steel frame.

Guidance for specification option:

Vista’s range of self-drill, double-threaded screws are specifically designed for fixing the restraint channel to steel work.

Available in a variety of lengths and thread diameters: consult manufacturer and insert requirements.

SELF - fixings and compression sleeve for use with concrete.

Guidance for specification option:

Self-tapping, fully-threaded screws are for use when fixing to concrete.

Available in a variety of lengths and thread diameters: consult manufacturer and insert requirements.

Manufacturer guidance

Sixing type depends on whether the structural element is concrete or steel.

Profile

Rectangular.

Guidance for specification option:

Designed to tie brickwork to steel studding. To be used in conjunction with a Vista VS9 tie.

Supplied in bundles of 20.

Size (w x d)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Length

2.7 m.

Guidance for specification option:

Supplied in bundles of 20.

Wall ties

Required, VS9 channel ties.

Guidance for specification option:

Specified separately.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
