Application

Suitable for use in dado applications for different cable management installation needs.

Description

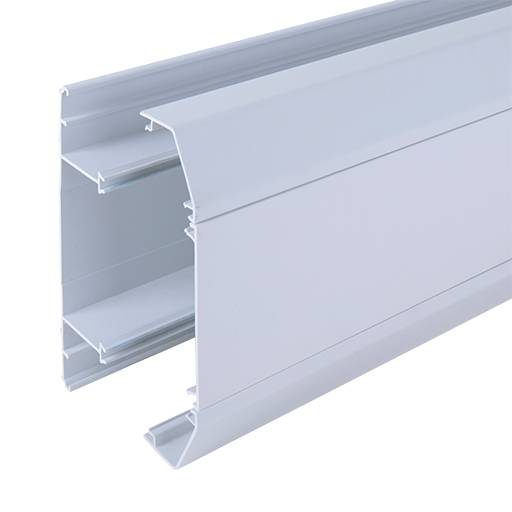

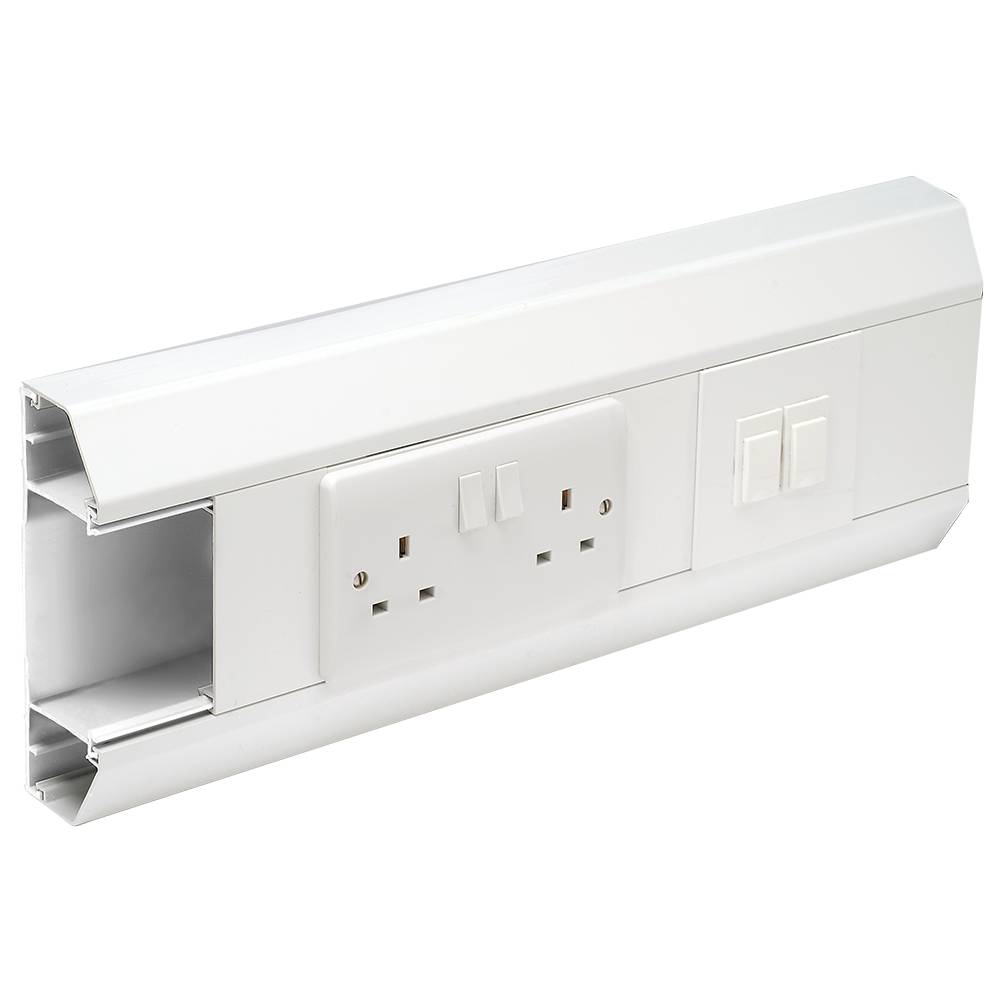

Challenger is a three compartment trunking system compliant up to Cat 7a, suitable for office school or college environments. This easy to install system can be fitted at dado level and includes a pre-drilled base to speed up installation.


Features and benefits:

  • 167 x 50 mm.
  • Three segregated compartments.
  • Suitable for dado application.
  • Single piece moulded fittings.
  • Flat tees and flat angles with integral bend radius control.
  • Self-extinguishing and non-flame propagating PVC-U.
  • Recycled PVC-U is utilized in the manufacturing process.
  • Compliant up to Cat 7a.
  • Standard bend radius 25 mm.

General information

Color

White

Guidance for specification option:

White (RAL9003).

Material

PVC-U

Shape

Rectangle

Length

3000 mm

Width

50 mm

Height

167 mm

Uniclass

Pr_65_70_11_96 Wall and ceiling-mounted cable trunking and ductingPrimary

CAWS

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

Sustainability data

Country of product manufacture

United Kingdom

Material

PVC-U

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

53 %

Guidance for specification option:

For white.

BIM objects

Platform Compatible Version
Revit
-

1
