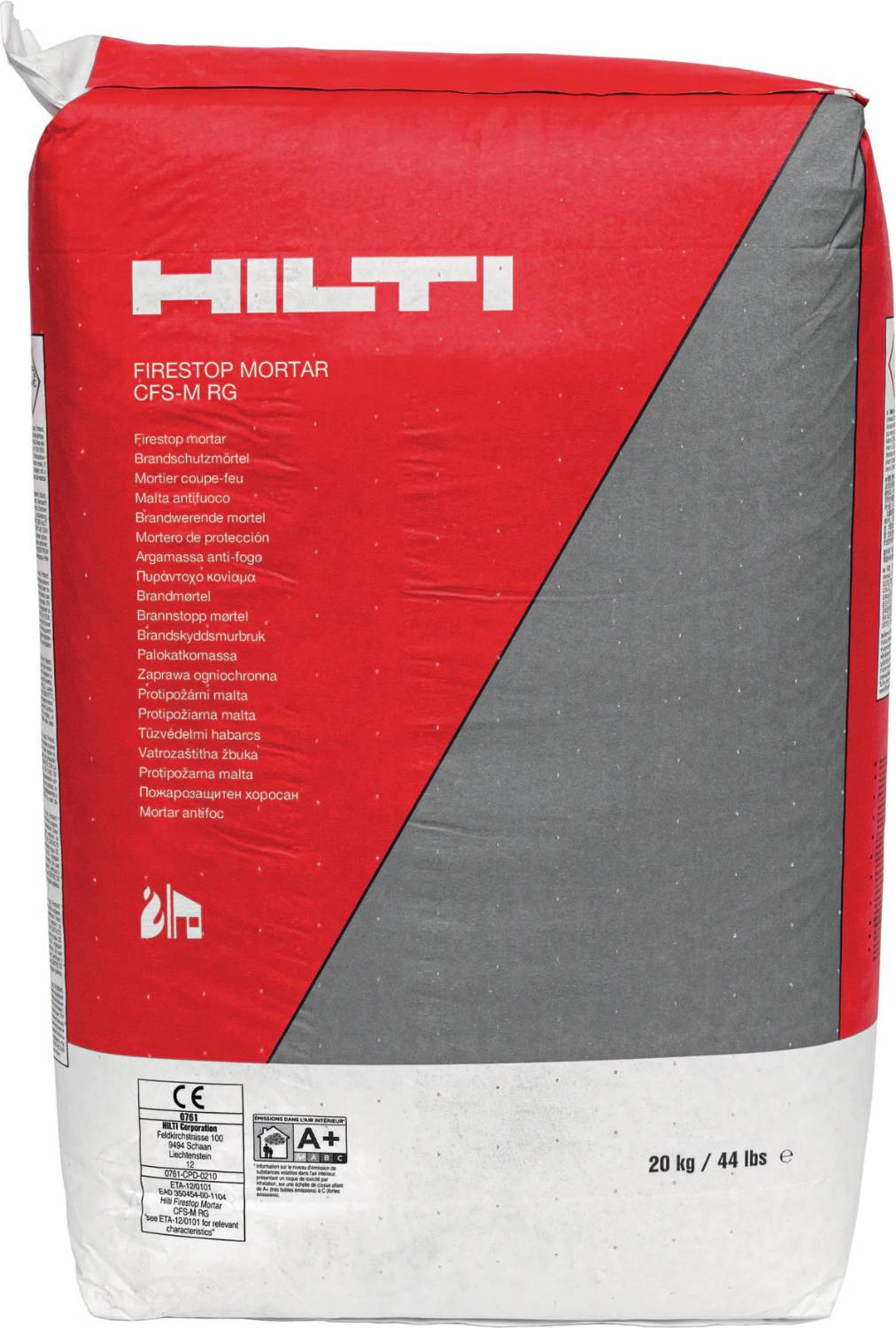

CFS-M RG Firestop Mortar
Verified by manufacturer 2 months ago
European Technical Approval (ETA)
Certificate type
UK Technical Assessment (UKTA)
Certificate type
Firestop Mortar
Application
- Mixed penetrations in rigid walls and floors from 150 mm
- Cables, cable bundles, cable trays and cable conduits
- Non-combustible (metal) pipes with non-combustible insulation
- Non-combustible (metal) and composite pipes with combustible insulation in combination with CFS-B firestop bandage
- Combustible pipes in combination with CFS-C firestop collar, CFS-C P firestop collar or CFS-W firestop wrap
Description
Firestop mortar to help prevent fire and smoke from spreading through large openings with cable, pipe and mixed penetrations
Features and benefits:
- Easier to install – consistency can be varied for application with a trowel or commercially available pumps
- Excellent thermal insulating properties
- Minimal shrinkage during curing and no spalling in event of fire
- Paintable
General information
Color | Grey |
Material | Cement Guidance for specification option: Cementitious mortar. |
Shape | Formless |
Uniclass | |
CAWS | P12/340 Intumescent mortar P12/37 Intumescent mortar |
Specification data - Fire-resisting mortars
Material | Cementitious mortar. |
Fire resistance | 240 minutes.Guidance for specification option: Dependent on substrate and application. |
Density | 700–900 kg/m³. |
Acoustic performance | 52 dB. |
Setting time | 10 hours. |
Working time | 45 minutes. |
Compressive strength - 28 days | 2.5 N/mm². |
Application temperature | 5–30°C. |
Temperature resistance | -10 to +80°C. |
Third party certifications
European Technical Approval (ETA)
ETA-12/0101 CFS-M RG Firestop Mortar
UK Technical Assessment (UKTA)
UKTA22 0037 CFS-M RG Firestop Mortar
