CFP Fixed flat roof window, flat glass

Third party certifications:
  • QA Certificate

    Certificate type

VELUX Company Ltd

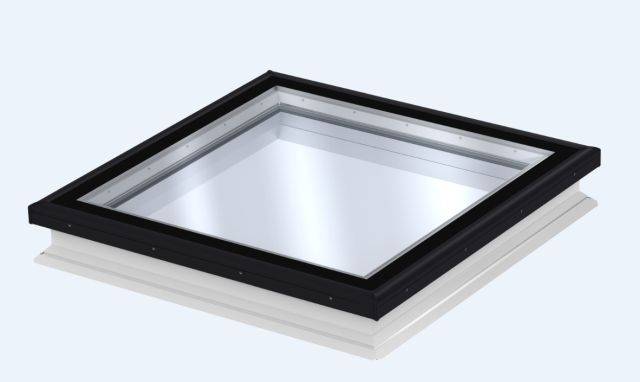

Fixed flat roof window with flat glass cover for roof pitches from 2–15°.

Jump to:
+44 (0)1592 778225 www.velux.co.uk
Description

Fixed flat roof window with flat glass cover for roof pitches from 2–15°.

Features:

  • Fixed window without background ventilation.
  • Highly-insulated PVC sash construction.
  • Double glazed window with laminated inner pane for additional safety.
  • Flat glass cover design fits with the roof line.
  • Energy efficient with U-value of just 0.79 Urc,ref300 for the complete window installation.
  • Excellent sound insulation from rain and hail.
  • Available in eight sizes with kerb height of 150 mm.
  • Extension frame for warm roof installation.
  • AA fire rated.

Warranty:

  • Ten-year guarantee for window and pane.
  • Three-year guarantee for blinds and electrics

General information
Features

Fixed flat roof window

Material

PVC

Size

600 x 600 mm

Uniclass 2015 Framed rooflights (Pr_30_59_72_31)
Specification data
Product Reference

CFP fixed, flat roof window with flat glass cover

Window code

CFP 060060 0073QV + ISD 060060 2093

600 x 600 mm; flat glass cover.

CFP 060090 0073QV + ISD 060090 2093

600 x 900 mm; flat glass cover.

CFP 080080 0073QV + ISD 080080 2093

800 x 800 mm; flat glass cover.

CFP 090090 0073QV + ISD 090090 2093

900 x 900 mm; flat glass cover.

CFP 090120 0073QV + ISD 090120 2093

900 x 1200 mm; flat glass cover.

CFP 100100 0073QV + ISD 100100 2093

1000 x 1000 mm; flat glass cover.

CFP 100150 0073QV + ISD 100150 2093

1000 x 1500 mm; flat glass cover.

CFP 120120 0073QV + ISD 120120 2093

1200 x 1200 mm; flat glass cover.

Extension frame for warm roof installation

ZCE 060060 0015

600 x 600 mm.

ZCE 060090 0015

600 x 900 mm.

ZCE 080080 0015

800 x 800 mm.

ZCE 090090 0015

900 x 900 mm.

ZCE 090120 0015

900 x 1200 mm.

ZCE 100100 0015

1000 x 1000 mm.

ZCE 100150 0015

1000 x 1500 mm.

ZCE 120120 0015

1200 x 1200 mm.

Frame fixing kit

ZZZ 060060 210

600 x 600 mm.

ZZZ 060090 210

600 x 900 mm.

ZZZ 080080 210

800 x 800 mm.

ZZZ 090090 210

900 x 900 mm.

ZZZ 090120 210

900 x 1200 mm.

ZZZ 100100 210

1000 x 1000 mm.

ZZZ 100150 210

1000 x 1500 mm.

ZZZ 120120 210

1200 x 1200 mm.

Interior sunscreening

Not required

FMG Electric pleated blind, colour 1265 Black

Requires KUX 100 Control unit.

FMG Electric pleated blind, colour 1016 White

Requires KUX 100 Control unit.

FMG Electric pleated blind, colour 1259 Cream

Requires KUX 100 Control unit.

FMK Electric light dimming pleated blind, colour 1045 White

Requires KUX 100 Control unit.

FMK Electric light dimming pleated blind, colour 1047 Black

Requires KUX 100 Control unit.

FSK Solar Operated light dimming pleated blind, colour 1045 White

FSK Solar Operated light dimming pleated blind, colour 1047 Black

Accessories

None

KUX 100 Control unit

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 2 2.1
Download now from NBS National BIM Library
Third party certifications
  • CE Marked: EAD 220062-00-0401
