CFP Fixed flat roof window, curved glass
QA Certificate
Certificate type

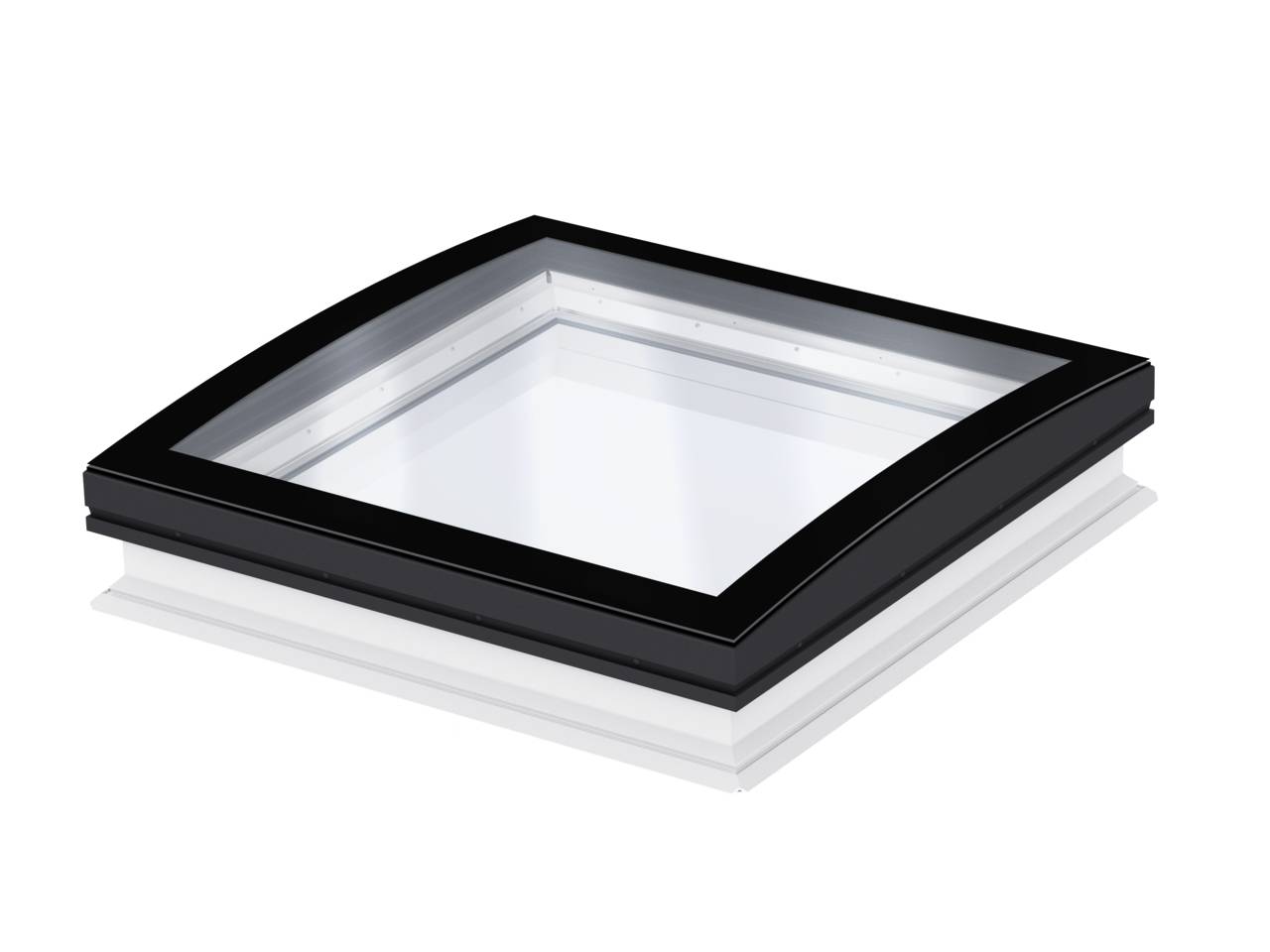

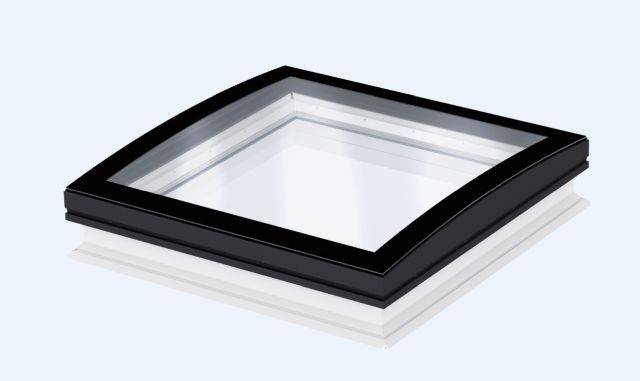

CFP Fixed flat roof window with curved glass top cover. Suitable for roof pitches from 0-15°.
Fixed flat roof window with curved glass cover for roof pitches from 0-15°.
Fixed flat roof window with curved glass cover for roof pitches from 0-15°.
Features:
- Fixed window without background ventilation.
- Highly-insulated PVC sash construction.
- Double glazed window with laminated inner pane for additional safety.
- Curved glass cover with glass to edge design ensures uninterrupted drainage and clearer view to the sky.
- Energy efficient with U-value of just 0.72 Urc,ref300 for the complete window installation.
- Excellent sound insulation from rain and hail.
- Available in 8 sizes with kerb height of 150 mm.
- Extension frame for warm roof installation.
- AA fire rated.
Warranty:
- Ten-year guarantee for window and pane.
- Three-year guarantee for blinds and electrics.
Application:
Fixed flat roof window with curved glass cover for roof pitches from 0-15°.
Features | Fixed flat roof window |
Material | PVC |
Size | 600 x 600 mm |
Uniclass 2015 | |
CAWS | L10/480 Roof windows L10/50 Roof windows |
Product Reference | CFP fixed, flat roof window with curved glass cover |
Form | Fixed flat roof window with curved glass cover |
Product performance | - |
Fire performance | - |
Reaction to fire | AA fire rated |
Frame | - |
FrameMaterial | PVC |
Frame finish | - |
Colour | White base unit, black brown profiles on top cover |
Glazing or infill | - |
Type | Double glazed window with laminated inner pane for additional safety |
Integral kerb | Kerb height of 150 mm |
Operation | - |
Type | Fixed |
Accessories | FMG Electric pleated blind, colour 1016 WhiteRequires KUX 100 Control unit. FMG Electric pleated blind, colour 1259 CreamRequires KUX 100 Control unit. FMG Electric pleated blind, colour 1265 BlackRequires KUX 100 Control unit. FMK Electric light dimming pleated blind, colour 1045 WhiteRequires KUX 100 Control unit. FMK Electric light dimming pleated blind, colour 1047 BlackRequires KUX 100 Control unit. FSK Solar Operated light dimming pleated blind, colour 1045 WhiteFSK Solar Operated light dimming pleated blind, colour 1047 BlackKUX 100 Control unitMSG Solar Operated awning blind, colour 6090 WhiteZCE 060060 0015Extension frame for warm roof installation 600 x 600 mm. ZCE 060090 0015Extension frame for warm roof installation 600 x 900 mm. ZCE 080080 0015Extension frame for warm roof installation 800 x 800 mm. ZCE 090090 0015Extension frame for warm roof installation 900 x 900 mm. ZCE 090120 0015Extension frame for warm roof installation 900 x 1200 mm. ZCE 100100 0015Extension frame for warm roof installation 1000 x 1000 mm. ZCE 100150 0015Extension frame for warm roof installation 1000 x 1500 mm. ZCE 120120 0015Extension frame for warm roof installation 1200 x 1200 mm. ZZZ 210 060060Frame fixing kit 600 x 600 mm. ZZZ 210 060090Frame fixing kit 600 x 900 mm. ZZZ 210 080080Frame fixing kit 800 x 800 mm. ZZZ 210 090090Frame fixing kit 900 x 900 mm. ZZZ 210 090120Frame fixing kit 900 x 1200 mm. ZZZ 210 100100Frame fixing kit 1000 x 1000 mm. ZZZ 210 100150Frame fixing kit 1000 x 1500 mm. ZZZ 210 120120Frame fixing kit 1200 x 1200 mm. |
Window code | CFP 060060 0073QV + ISD 060060 1093600 mm x 600 mm; curved glass cover. CFP 060060 0073QV + ISD 060060 1093600 mm x 600 mm; curved glass cover. CFP 080080 0073QV + ISD 080080 1093800 mm x 800 mm; curved glass cover. CFP 090090 0073QV + ISD 090090 1093900 mm x 900 mm; curved glass cover. CFP 090120 0073QV + ISD 090120 1093900 mm x 1200 mm; curved glass cover. CFP 100100 0073QV + ISD 100100 10931000 mm x 1000 mm; curved glass cover. CFP 100150 0073QV + ISD 100150 10931000 mm x 1500 mm; curved glass cover. CFP 120120 0073QV + ISD 120120 10931200 mm x 1200 mm; curved glass cover. |
Standard product features | Colour: White base unit, black brown profiles on top cover. Features: Fixed window without background ventilation, highly-insulated PVC sash construction, double glazed window with laminated inner pane for additional safety, curved glass cover with glass to edge design ensures uninterrupted drainage and clearer view to the sky and energy efficient with U-value of just 0.72 Urc,ref300 for the complete window installation. Excellent sound insulation from rain and hail, available in 8 sizes with kerb height of 150 mm, extension frame for warm roof installation and AA fire rated. Finish: Fixed window without background ventilation, highly-insulated PVC sash construction, double glazed window with laminated inner pane for additional safety, curved glass cover with glass to edge design ensures uninterrupted drainage and clearer view to the sky and energy efficient with U-value of just 0.72 Urc,ref300 for the complete window installation. Excellent sound insulation from rain and hail, available in 8 sizes with kerb height of 150 mm, extension frame for warm roof installation and AA fire rated. Finish: Double glazed window with laminated inner pane for additional safety. Material: PVC Base Unit, Anodised Aluminium Top Cover. Shape: Fixed flat roof window with curved glass cover. Size 600 x 600 mm, 600 x 900 mm, 800 x 800 mm, 900 x 900 mm, 900 x 1200 mm, 1000 x 1000 mm, 1000 x 1500 mm, 1200 x 1200 mm. Warranty description: Ten-year guarantee for window and pane. Three-year guarantee for blinds and electrics. |
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | - | 2 | 2.1 |
- CE Marked: EAD 220062-00-0401
