Ceramic panel with metal frame ,weather barrier, insulation, concrete block and plasterboard lining.

Jump to:
+44 (0)345 4569594 Website

Description

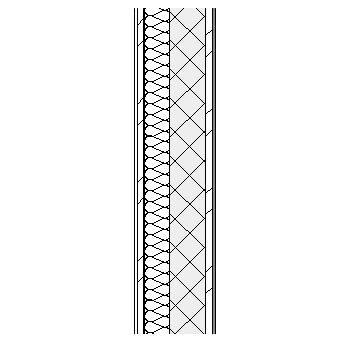

Cladding system comprising: 12 mm ceramic panel, 100 mm metal frame, 2 mm polyethylene weather barrier membrane, 100 mm mineral wool batts insulation and 140 mm aggregate concrete blockwork lined with 25mm metal furrings and 12.5 mm gypsum plasterboard.

BIM objects

Platform Compatible Version
Revit

Revit 2013

2

IFC

IFC2X3

2
