Verified by manufacturer 4 months ago

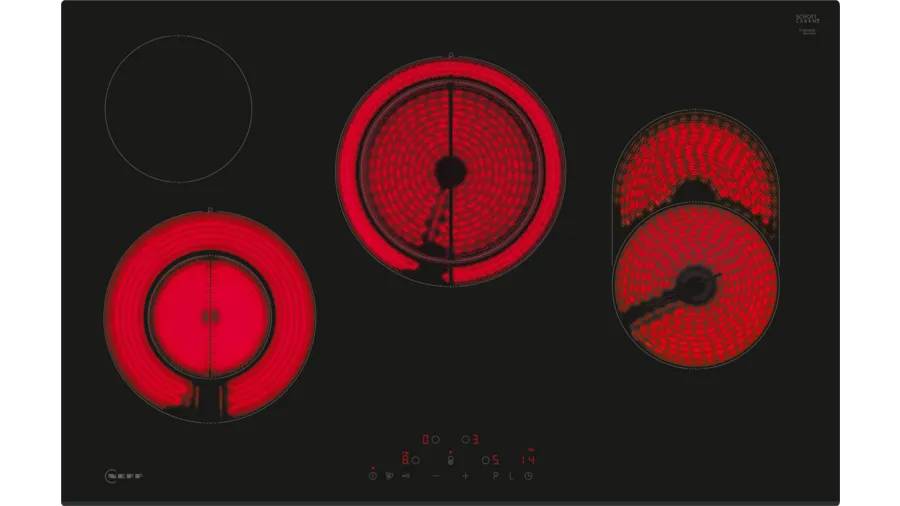

T18FDH9L
Electric hobs, 60 and 80 cm, black.
Suitable for domestic applications.
A range of built-in quick-light ceramic hobs.
Features and benefits:
Color | Black |
Material | Glass |
Shape | Rectangle |
Length | 522 mm Manufacturer guidanceDepth. |
Width | 592 mm 802 mm |
Height | 45 mm 46 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
SKU Code | T16NBE1L, T16NKE0L, T18FDH9L |
Hob arrangement | Electric hob with LHF 0.8 kW cook zone, LHR 1.7 kW cook zone, M 1.7 kW cook zone and RHF 1.8 kW cook zone. Guidance for specification option: LHF: Maximum power 2.6 kW; 120 x 210 mm. LHR: 120 mm. M: Maximum power 3.4 kW; 180 x 230 mm. RHF: 170 x 265 mm. |
Dimensions | |
Width (maximum) | 802 mm. |
Depth (maximum) | 522 mm. |
Rating | 9.3 kW. |
Electrical supply | 220–240 V, 50/60 Hz. |
Material and finish | Bevelled front edge. |
Features | Touch control. Variable 17-stage power settings for each zone. Keep warm function. Switch-off timer. Count-down timer. ReStart function. Quick-Off. Two-stage residual heat indicators. Control panel lock. Control panel suspension. Main switch. Power on indicator light. Safety cut-out facility. Energy consumption display. |
Weight | 11.6 kg. |
Accessories | Not required. Z9381X0. Z9428FE0: Iron pan Ø18/28 cm. Z943SE0: Set of 2 pots and 1 pan. |
Material | Glass |
