60 cm venting hob. Frameless
Verified by manufacturer 2 months ago

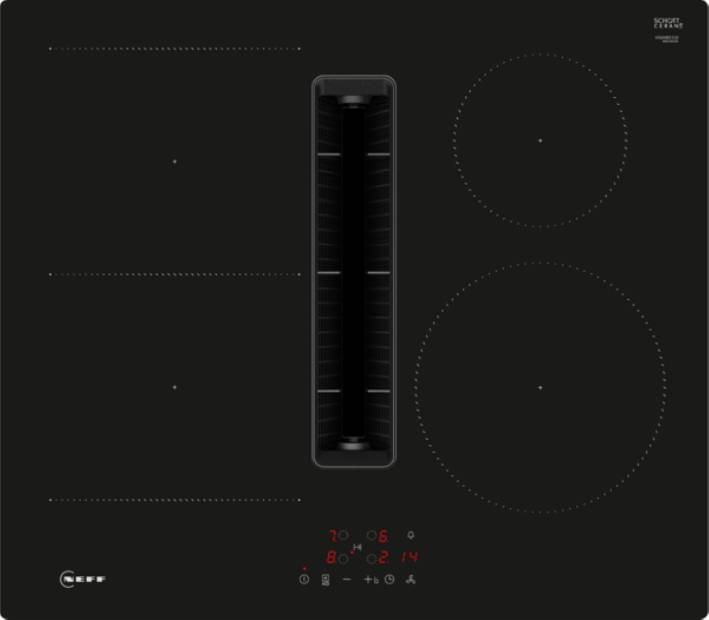

N 50, induction hob with integrated ventilation system, 60 cm, surface mount without frame.
Application
Suitable for domestic applications.
Description
N 50, induction hob with integrated ventilation system, 60
cm. Black glass, surface mount without frame.
Features and benefits:
- Touch control: control your hob with just one touch and a timer.
- Combi induction: offers two individual induction cooking zones or one large combined induction cooking zone.
- High extraction rate: ensures a clear view while cooking thanks to efficient motor technology.
- Reduced noise: optimized motor guarantees a quiet cooking experience.
- Easy-clean filters: easy to remove and dishwasher-safe.
General information
Color | Black |
Material | Glass |
Shape | Rectangle |
Length | 522 mm Manufacturer guidanceDepth. |
Width | 592 mm |
Height | 223 mm |
Warranty description | Two year |
Material | Glass |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Induction hob with LHR, LHF, RHF 2.2 kW cook zone, RHR 1.4 kW cook zone and one combi zone.Guidance for specification option: All cook zones: 190 x 210 mm, maximum power 3.7 kW. |
Dimensions | |
Width (maximum) | 592 mm. |
Depth (maximum) | 522 mm. |
Rating | 7.4 kW. |
Electrical supply | 220–240/380–415 V, 50/60 Hz. |
Material and finish | Frameless, black glass. |
Features | Touch control, four zones, one combi zone plus ventilation, auto-on fan, four CleanAir Plus filters, telescopic slider, adhesive seal for un-ducted installation. |
Accessories | Not required. Z811DU0: Acoustics filter. Z821PD1: Plinth diffusor. Z821VR1: Clean Air Plus odor filter (replacement). Z861KE1: Exhaust kit. |
Energy rating | B. |
Sustainability data
Material | Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
N 50, Induction hob with integrated ventilation system, 60 cm, surface mount without frame V56NBS1L0
