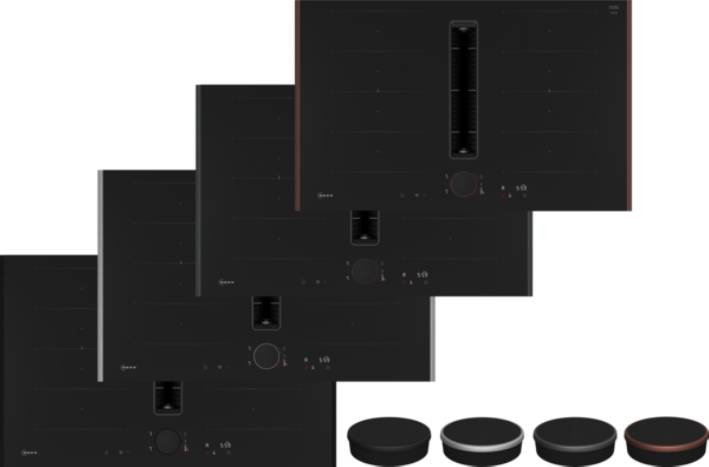

80cm venting hobs with integrated ventilation. Various trim colours
Verified by manufacturer 28 days ago
V68YYX4C0 - Bronze trim
V68YYX4C0 - Bronze trim
Induction hobs with integrated ventilation system, 80 cm.
Application
Suitable for domestic applications.
Description
A range of induction hobs with an integrated ventilation system, 80cm.
Additional colour-specific Trim & Twist Pad control dial accessory required for V68YYX4C0 (sold separately).
Features and benefits:
- Flex induction: flexible cooking zones and automatic cookware detection.
- Intuitive flex zones: place your cookware and the size, shape and position are instantly detected.
- Automatic air sensor: constantly adjusts the extraction rate to match the situation in the kitchen.
General information
Color | Black Bronze Grey Silver |
Material | Glass |
Shape | Rectangle |
Length | 527 mm Manufacturer guidanceDepth. |
Width | 834 mm |
Height | 223 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Induction hob with four 2.2 kW cook zones and two flex zones.Guidance for specification option: All cook zones: 200 x 230 mm, maximum power 3.7 kW. |
Dimensions | |
Width (maximum) | 834 mm. |
Depth (maximum) | 527 mm. |
Rating | 7.4 kW. |
Electrical supply | 220–240/380–415 V, 50/60 Hz. |
Material and finish | Black ceramic with bronze side trims. |
Features | Flex Design, two flex plus ventilation, twist pad control, climate control sensor, automatic hood, frying sensor, red/white UI, interchangeable size trims, four CleanAir Plus filters, telescopic slider, adhesive seal for un-ducted installation, Home Connect. |
Accessories | Not required. Z811DU0: Acoustics filter. Z821PD1: Plinth diffusor. Z821VR1: Clean Air Plus odor filter (replacement). Z861KE1: Exhaust kit. |
Energy rating | B. |
Sustainability data
Material | Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
N 90, Induction hob with integrated ventilation system, 80 cm, Flex Design V68YYX4C0
