Ceramic hobs
Verified by manufacturer 2 months ago

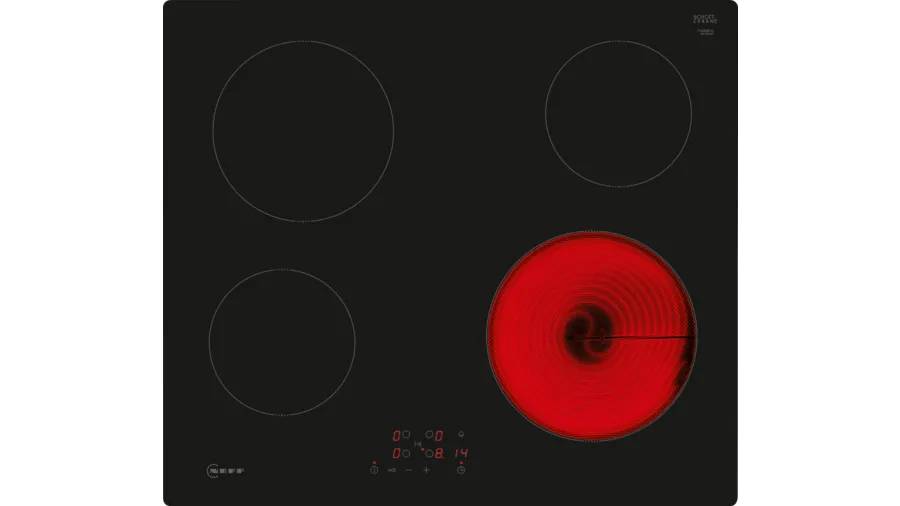

T16NBE1L
T16NBE1L
Electric hobs, 60 and 80 cm, black.
Application
Suitable for domestic applications.
Description
A range of built-in quick-light ceramic hobs.
Features and benefits:
- Touch Control: control the hob with a simple touch.
- Power Boost: an extra surge of heat for fast results.
- Roasting zone: automatically switches on when using a roaster.
General information
Color | Black |
Material | Glass |
Shape | Rectangle |
Length | 522 mm Manufacturer guidanceDepth. |
Width | 592 mm 802 mm |
Height | 45 mm 46 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Electric hob with LHF and RHR 1.2 kW cook zones, LHR 2 kW cook zone, RHF 2.2 kW cook zone.Guidance for specification option: LHF and RHR: 145 mm. LHR: 180 mm. RHF: 210 mm. |
Dimensions | |
Width (maximum) | 592 mm. |
Depth (maximum) | 522 mm. |
Rating | 6.6 kW. |
Electrical supply | 220–240 V, 50/60 Hz. |
Material and finish | Frameless. |
Features | Touch Control Basic. |
Weight | 8.16 kg. |
Accessories | Not required. Z9367X0. Z9428FE0: Iron pan Ø18/28 cm. Z943SE0: Set of 2 pots and 1 pan. |
Sustainability data
Material | Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

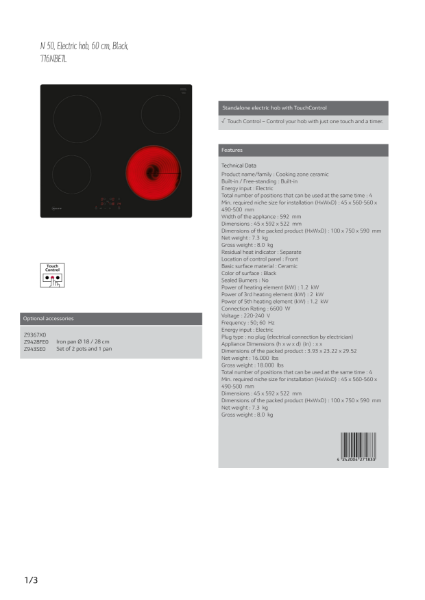

Ceramic hobs T16NBE1L, Datasheet
Ceramic hobs T16NKE0L, Datasheet

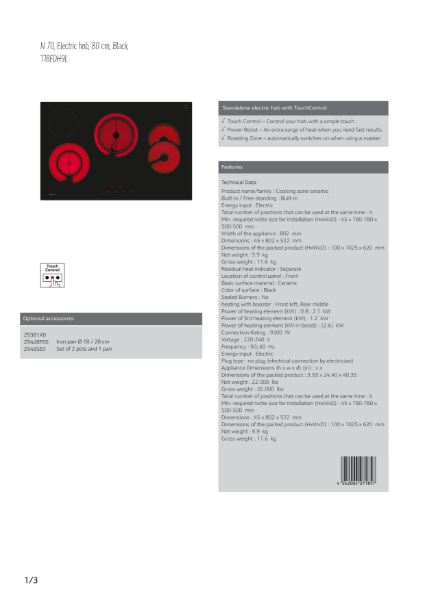

Ceramic hobs T18FDH9L, Datasheet
