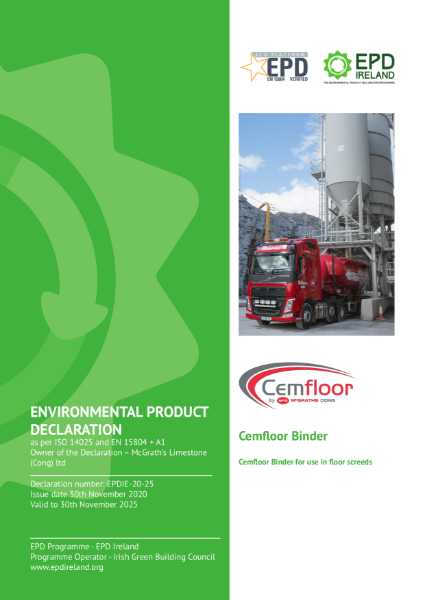

EPD
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Cement-based liquid screed.
Designed for use as a bonded levelling screed on concrete, as a floating screed over thermal or acoustic insulation, or as an unbonded screed on top of a plastic membrane. It is compatible with all types of floor coverings and cementitious adhesives, including fast-track systems, damp-proof membranes and floor levellers.
Cement-based, self-levelling liquid floor screed which complies with EN 13813.
Features and benefits:
Color | Grey |
Material | Cement Consists of blends of cement, sand, superplasticiser, Cemfloor Therm Binder and water. |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | M10/160 Proprietary self smoothing levelling screeds M10/195 Proprietary screeds to BS EN 13813 M10/19 Proprietary screeds to BS EN 13813 |
Standard | To EN 13813. |
Binder type | Cementitious. |
Compressive strength | C20.Minimum compressive strength 28 days: >20 N/mm². |
Flexural strength | F4.4 N/mm². |
Density | Wet density: 2100–2200 kg/m³; Dry density: 1900–2050 kg/m³. |
Reaction to fire | A1. |
Combustibility | Non-combustible. |
Shrinkage | <0.05%. |
Screed thickness | 20 mm (minimum). Bonded 30 mm (minimum). Unbonded 35 mm (minimum). Floating over insulation: Residential 40 mm (minimum). Floating over insulation: Commercial 40 mm (minimum) overall screed thickness, 25 mm above conduits and heating pipes. Above conduits and heating pipes. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Can be fully recycled to produce recycled aggregates for use in concrete. |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
Platform | Compatible | Version |
---|---|---|
![]() | - | 2 |
![]() | - | 2 |

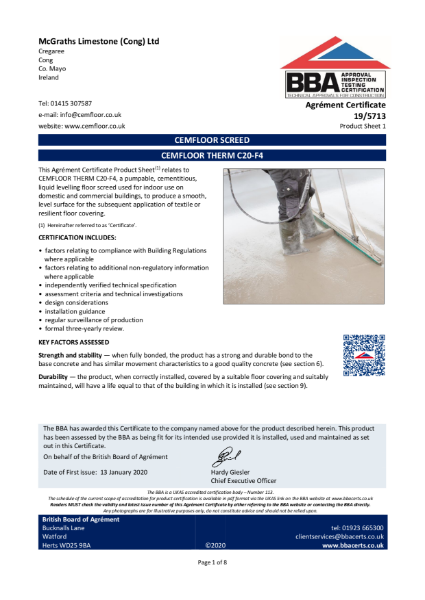

19/5713_1 CEMFLOOR SCREED

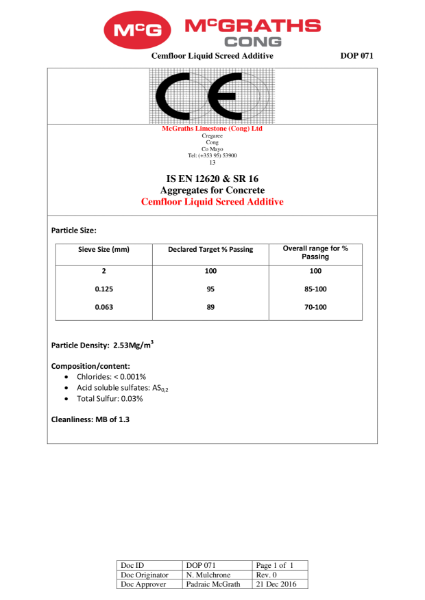

Cemfloor Binder DOP

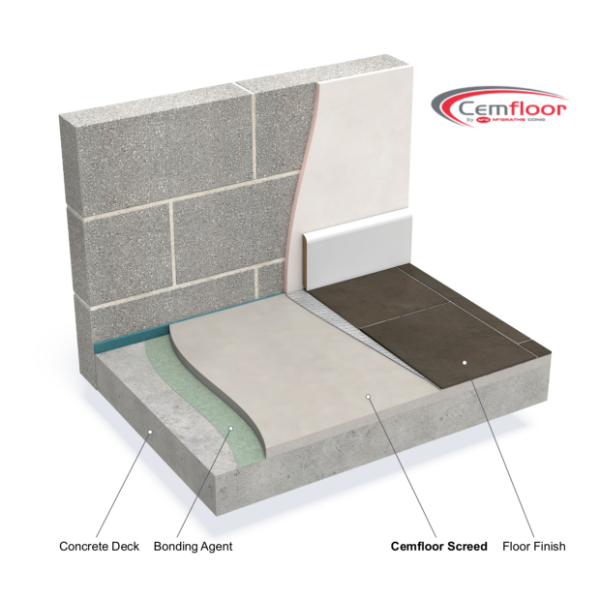

Cemfloor Bonded Screed Detail

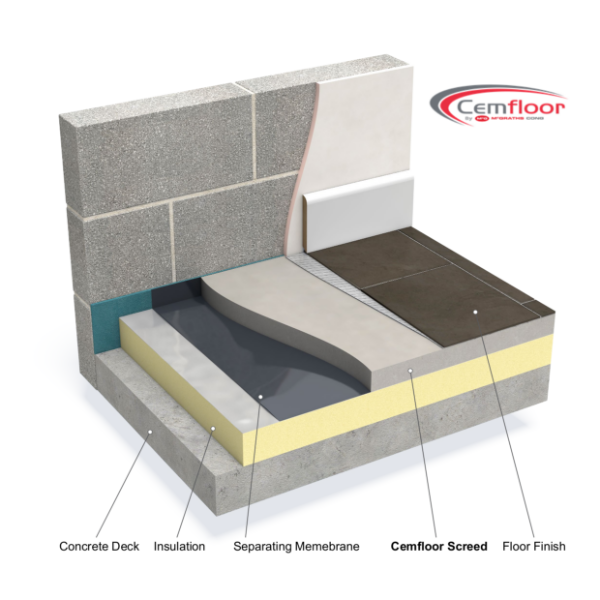

Cemfloor Floating Screed Detail
Cemfloor Screed Brochure

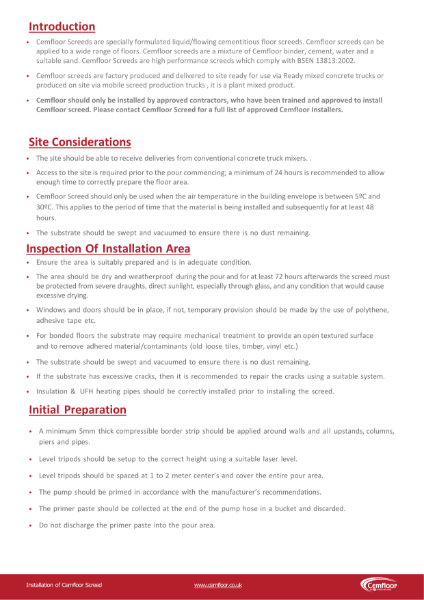

Cemfloor Screed On-Site Installation Procedures
Cemfloor Screed UnderFloor Heating Guidelines

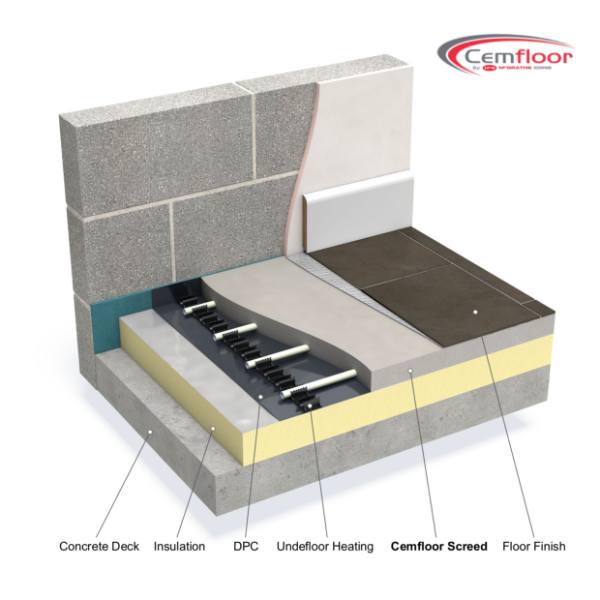

Cemfloor Screed with UFH Detail

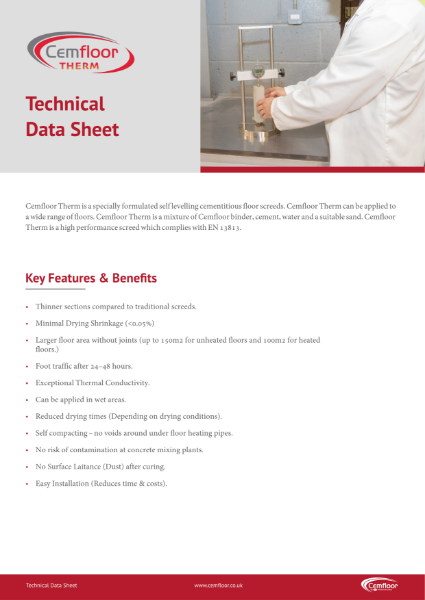

Cemfloor Therm Technical Data Sheet

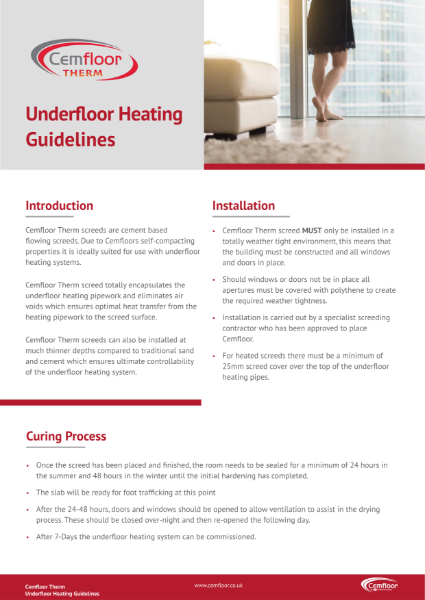

Cemfloor Therm UFH Guidelines

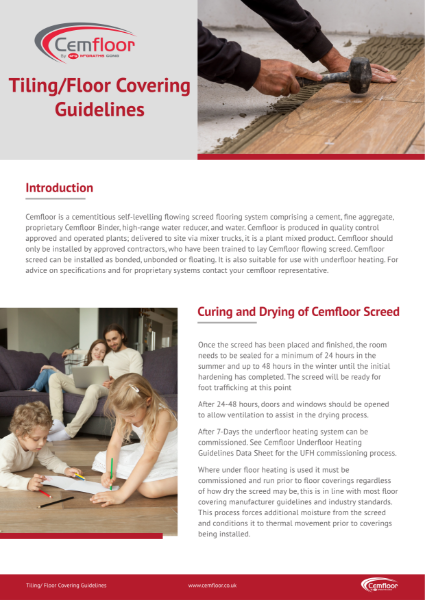

Cemfloor Tiling- Floor Covering Guidelines

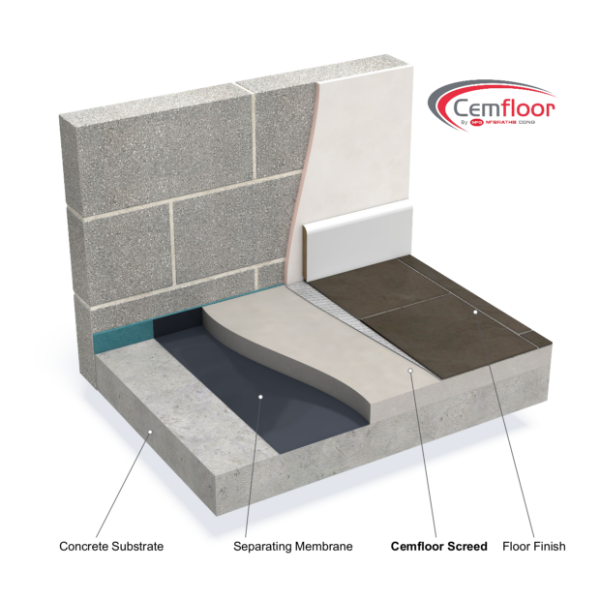

Cemfloor Unbonded Screed Detail

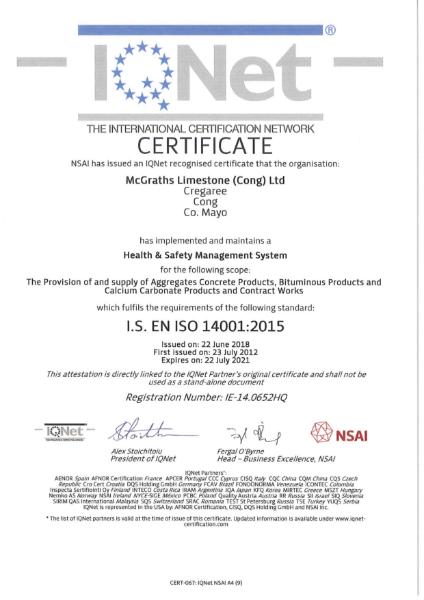

IS EN ISO14001:2015 Certification

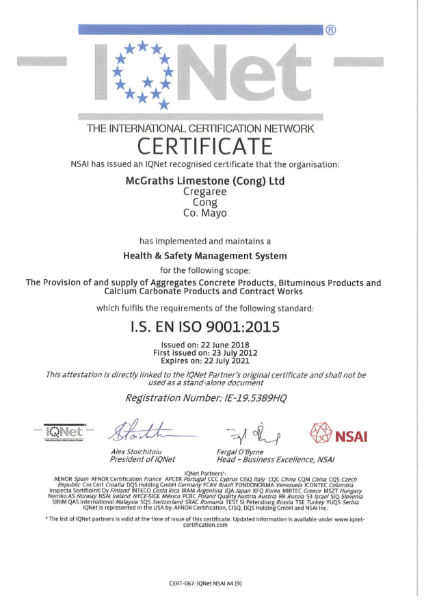

ISO 9001: 2015 Certification

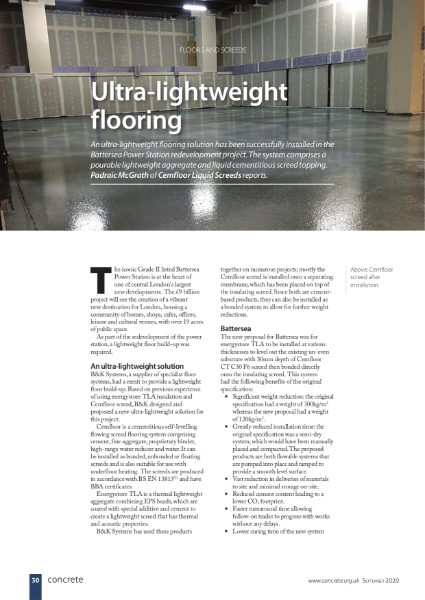

Floors and Screeds - Ultra-lightweight flooring
