Cembrit Patina - Facade Panel

Name: Cembrit Patina - Facade Panel
Brand: Swisspearl
SKU: j89QwJB3Txc4j25N8tCvif

Verified by manufacturer 6 months ago

A' fire rated fibre cement through-coloured façade panel.

Jump to:

BOS

Application

Suitable for use as rainscreen cladding, rigid sheet cladding and soffits.

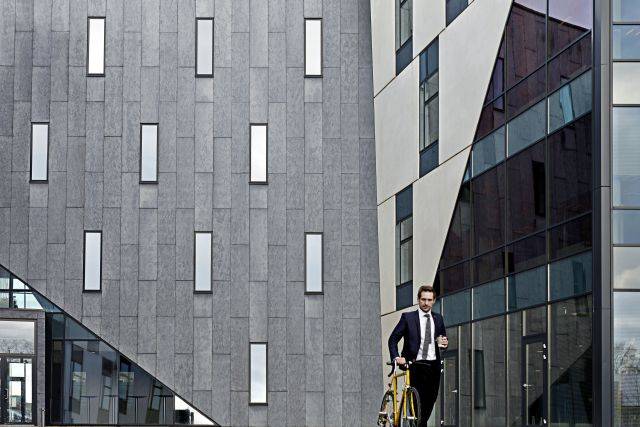

‘A’ fire rated panels that combine a fibre cement texture with a natural concrete appearance that develops character with age.

Features and benefits:

Color	Other Manufacturer guidance Choice of 11 colours.
Finish	Grained
Material	Fibre cement
Shape	Square
Length	2500 mm 3050 mm
Width	1192 mm 1250 mm
Height	8 mm

Uniclass	Pr_25_71_11_25 Fibre-reinforced cement boardsPrimary
CAWS	G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits H20/150 Sheet cladding (attached to metal support systems) H20/155 Sheet cladding (attached to timber battens) H92/120 Rainscreen cladding

Product range	Cladding Boards

Standard	To BS EN 12467:2004, Class NT A41.
Fire rating	To BS EN 13501-1: Class A2-s1, d0; to BS 476-7: Class 1.
Weather resistance	Resistance to frost, thaw, heat and extreme rainfall.
Sheet size	-
Nominal thickness	8 mm.
Length	2500 mm. 3050 mm.
Width	1200 mm.
Edges	Cut edges.
Finish as delivered	Hydrophobized surface.
Colour	P020-Patina Granite. P050-Patina Graphite. P070-Patina Flint. P545-Patina Sand. P222-Patina Pearl. P313-Patina Tufa. P323-Patina Magma. P333-Patina Adobe. P343-Patina Ruby. P565-Patina Amber. P626-Patina Emerald.

Product Reference	Cembrit Patina

Contains Red List materials	No
Country of product manufacture	Hungary
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	11.0 kg CO₂ eq/m² Self declared Manufacturer guidance Global warming potential (GWP): 7.92E+03 kg CO2-eq. Ozone depletion potential: 4.12E-07 kg CFC11-eq. Acidification potential of soil and water: 2.94E+00 kg SO2-eq. Eutrophication potential: 3.69E-01 kg PO43-eq. Photochemical ozone creation potential: 2.84E-01 kg ethene-eq. Abiotic depletion potential for non-fossil resources: 2.47E-02 kg Sb-eq. Abiotic depletion potential for fossil resources: 9.38E+04 MJ.
Recyclability	no
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 % Manufacturer guidance Use of renewable primary energy excluding renewable primary energy resources used as raw materials: 4.27E+03 MJ. Use of renewable primary energy resources used as raw materials: 2.33E+03 MJ. Total use of renewable primary energy resources: 6.60E+03 MJ. Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials: 1.21E+04 MJ. Use of non-renewable primary energy resources used as raw materials: 1.48E+03 MJ. Total use of non-renewable primary energy resources: 1.22E+04 MJ. Use of renewable secondary fuels: 5.61E-06 MJ. Use of non-renewable secondary fuels: 5.16E-05 MJ. Use of net fresh water: 4.75E+00 m³.
