Celotex TB4000
Compare variants

Celotex TB4000

20 mm thick.

Saint-Gobain Insulation UK Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

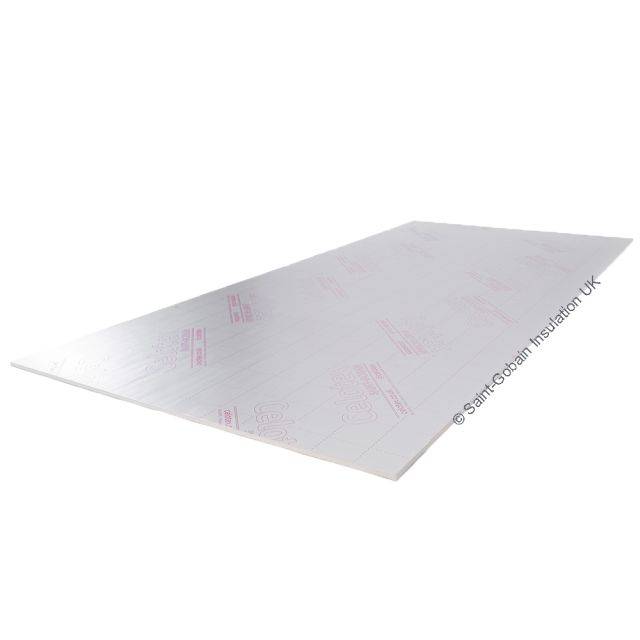

A high-performance PIR insulation board suitable for use in floor, wall and roof applications.

Jump to:
+44 (0) 1473 822093 insulation-uk.com

Application

  • Roofs - Pitched Roof Insulation - Between and Under Rafters
  • Roofs - Pitched Roof Insulation - Between and Over Rafters
  • Roofs - Flat Roof Insulation - Balconies and Terraces
  • Roofs - Flat Roof Insulation - Between and Under Joists
  • Walls - External Wall Insulation - Upgrading Cavity Walls
  • Walls - External Wall Insulation - Timber Frame Walls
  • Walls - External Wall Insulation - Solid Walls
  • Floors - Ground Floor - Beam and Block Floors
  • Floors - Ground Floor Insulation - Concrete Slab Ground Floors
  • Floors - Ground Floor Insulation - Upgrading Concrete Slab Floors
  • Floors - Ground Floor Insulation - Suspended Timber Floors

Description

Celotex TB4000 is an easy to install polyisocyanurate (PIR) insulation board with excellent thermal performance, featuring a low emissivity foil facing. Available in thicknesses from 20mm to 40mm, it can be considered for floor, wall and roof applications.


Product Features

  • Lightweight 2400 x 1200mm boards
  • Low emissivity foil facing
  • Achieves a BRE Green Guide A rating
  • BBA certified – certificates 16/5352 (Timber Frame Dwellings), 17/5405 (Pitched Roof, Dry Lining, Floor Insulation)


Fire Classification

Euroclass E Reaction to Fire classification, according to BS EN 13501-1. Products with this level of classification are not provided with a rating for smoke emission.


Product Benefits

  • Thermal Performance - Excellent thermal performance with a thermal conductivity of 0.022 W/m.K, reducing the thickness of insulation required to hit the target U-value.
  • High Performance Facer - Low emissivity foil facing provides improved thermal performance in sealed cavity air spaces, improving the achievable U-value.
  • Easy to Install - Celotex boards are light and rigid assisting with ease of transportation, handling and fitting.
  • BBA Certified - Celotex TB4000 has been assessed by the BBA as fit for use in defined roof, wall and floor applications if installed, used and maintained as set out in the certificate. Please read the certification at insulation-UK.com/BBA for full details and restrictions.
  • Sustainability - Celotex TB4000 achieves a BRE Green Guide Rating of A, which can assist in demonstrating environmental performance in your BREEAM assessments. Please visit the Celotex page at GreenBookLive.com for further details.


Key Considerations

When using Celotex TB4000, you need to satisfy yourself that use of the product meets all relevant national Building Regulations and guidance as well as local, national and other applicable standards relevant for your construction or application, including requirements in relation to fire and applicable height restrictions.


Please refer to the following product documents:

  • Product Datasheet
  • BBA Certificate
  • Declaration of Performance
  • Health & Safety Datasheet


Celotex TB4000 should not be used in the external walls of buildings over 18 metres in height (England and Wales) or 11 metres in height (Scotland). Recent changes to Building Regulations mean that only non-combustible insulation or insulation of limited combustibility can be used in buildings of that height.

General information

Color

Silver

Face

Finish

Foil

Material

PIR

Length

2400 mm

Width

1200 mm

Uniclass

Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary

CAWS

J31/10 Warm deck roof coating

J31/335 Warm deck roof insulation

J41/10 Reinforced bitumen membrane warm deck roof covering

J42/10 Warm deck roof covering

K10/125 Metal stud partition system

K10/155 Wall lining system (metal studs)

K10/220 Proprietary suspended ceiling system

K10/30 Metal stud

K10/50 Suspended ceiling system on metal framing

K11/115 Battened plywood floating floor

K11/125 Battened particleboard floating floor

K11/135 Battened oriented strand board floating floor

K11/145 Battened cement-bonded particleboard floating floor

K11/20 Battened particleboard floating floor

K11/215 Plywood floating floor

K11/225 Particleboard floating floor

K11/235 Oriented strand board floating floor

K11/245 Cement bonded particleboard floating floor

K11/25 Particleboard floating floor

K11/55 Rigid board insulation fixed as roof sarking

K11/795 Wall lining on metal framing

K21/120 Battened wood flooring

K21/130 Battened wood floating floor

K21/140 Battened wood laminate flooring

M10/290 Floating construction

M10/40 Floating construction

M13/260 Floating construction

M13/40 Floating construction

P10/140 Insulation fitted between rafters

P10/15 Insulation fitted between rafters

P10/170 Insulation to loft access hatches

P10/190 Insulation fitted between studs

P10/20 Insulation to loft access hatches

P10/40 Insulation fitted betweenor to the face ofstuds

Specification data - Polyisocyanurate (PIR) foam boards Enhanced data

Standard

To BS EN 13165.

Declaration of Performance (DoP): CE Marked to BS EN 13165 - Certificate Number 18.DOPTB4000-01.

Third party product certification

BRE Green Guide rating of A, Certificate number ENP413; BBA approved 16/5352 and 17/5405; ISO 9001; ISO 14001.

  • BBA approved for timber frame dwellings - Certificate Number 16/5352.
  • SGS: Manufactured under Quality Management System. BS EN ISO 9001 - Certificate Number GB91/504.
  • SGS: Manufactured under Environmental Management System ISO 14001 - Certificate Number GB11/83526.
  • BBA approved for dry lining - Certificate Number 17/5405.
  • BBA approved for floor insulation - Certificate Number 17/5405.
  • BBA approved for pitched roof insulation - Certificate Number 17/5405.

Fire performance

Euroclass E Reaction to Fire classification, according to BS EN 13501-1.

Thermal conductivity (maximum)

Celotex TB4000 has a declared thermal conductivity of 0.022 W/m.K, according to BS EN 13165 for factory made rigid polyurethane foam (PU) products.

0.022 W/m.K.

Cross section

Uniform thickness.

Thickness (nominal)

20 mm.

Face size (length x width)

2400 x 1200 mm.

Density

Manufacturer's standard.

Consult manufacturer for details.

Compressive strength at 10% deformation

Manufacturer's standard.

Consult manufacturer for details.

Recycled content

Manufacturer's standard.

Facing

Foil.

Edges

Manufacturer's standard.

Product Reference

Celotex TB4000

Thermal resistance (R-value)

0.90 m²K/W.

Compliance with Building Regulations Part H

Helps to meet the requirements of UK thermal building regulations.

Durability

Thermal conductivity of PIR products does not change over time.

Handling

Information regarding storage, installation and handling of Celotex products, or health and safety information, can be found on the manufacturer's website.

Manufacturer's standard.

Third party certifications

  • BBA approved for timber frame dwellings - Certificate Number 16/5352
  • Declaration of Performance (DoP): CE Marked to BS EN 13165 - Certificate Number 18.DOPTB4000-01
  • SGS: Manufactured under Quality Management System. BS EN ISO 9001 - Certificate Number GB91/504
  • SGS: Manufactured under Environmental Management System ISO 14001 - Certificate Number GB11/83526
  • BBA approved for dry lining - Certificate Number 17/5405
  • BBA approved for floor insulation - Certificate Number 17/5405
  • BBA approved for pitched roof insulation - Certificate Number 17/5405
