Ceilings

Verified by manufacturer 30 days ago

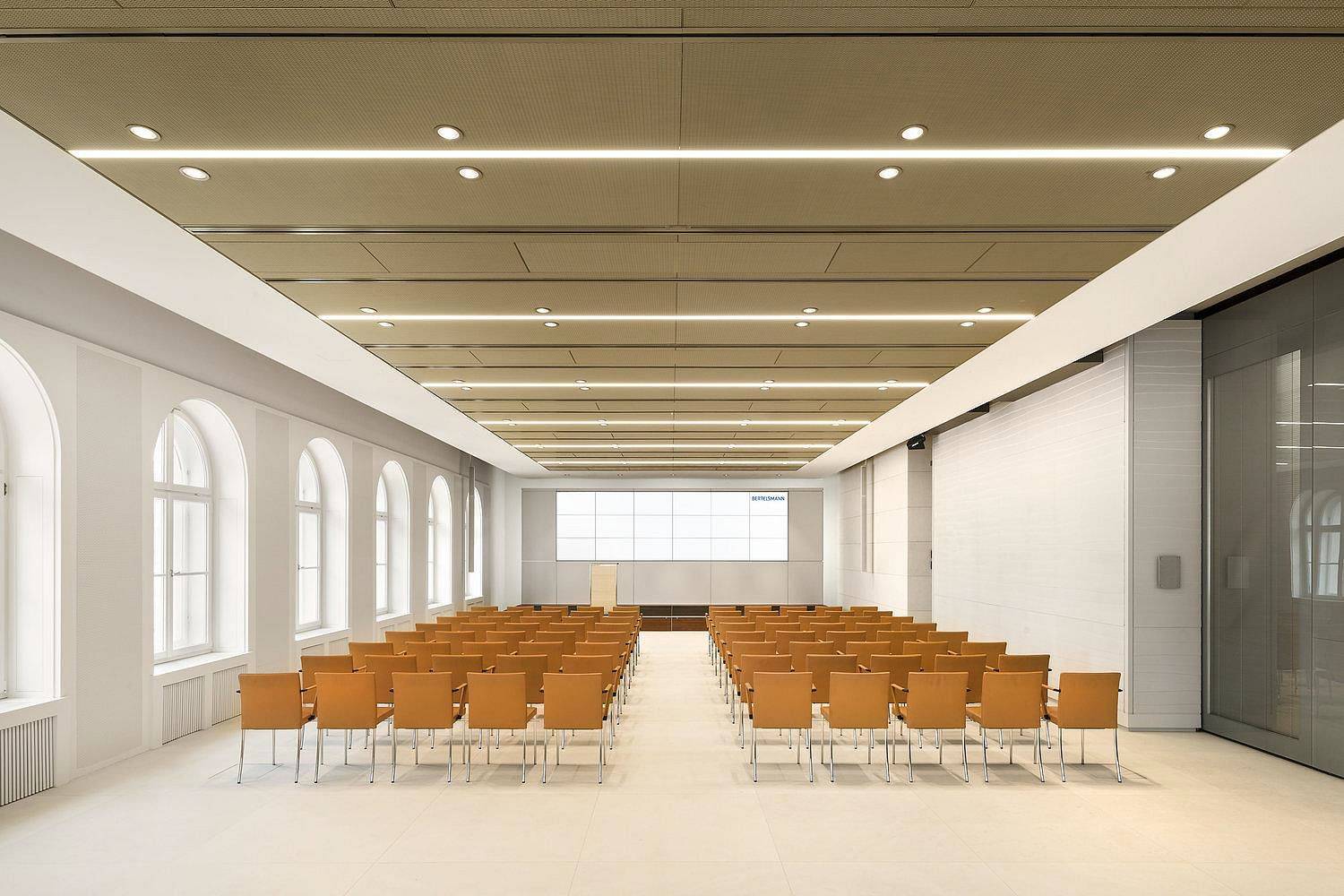

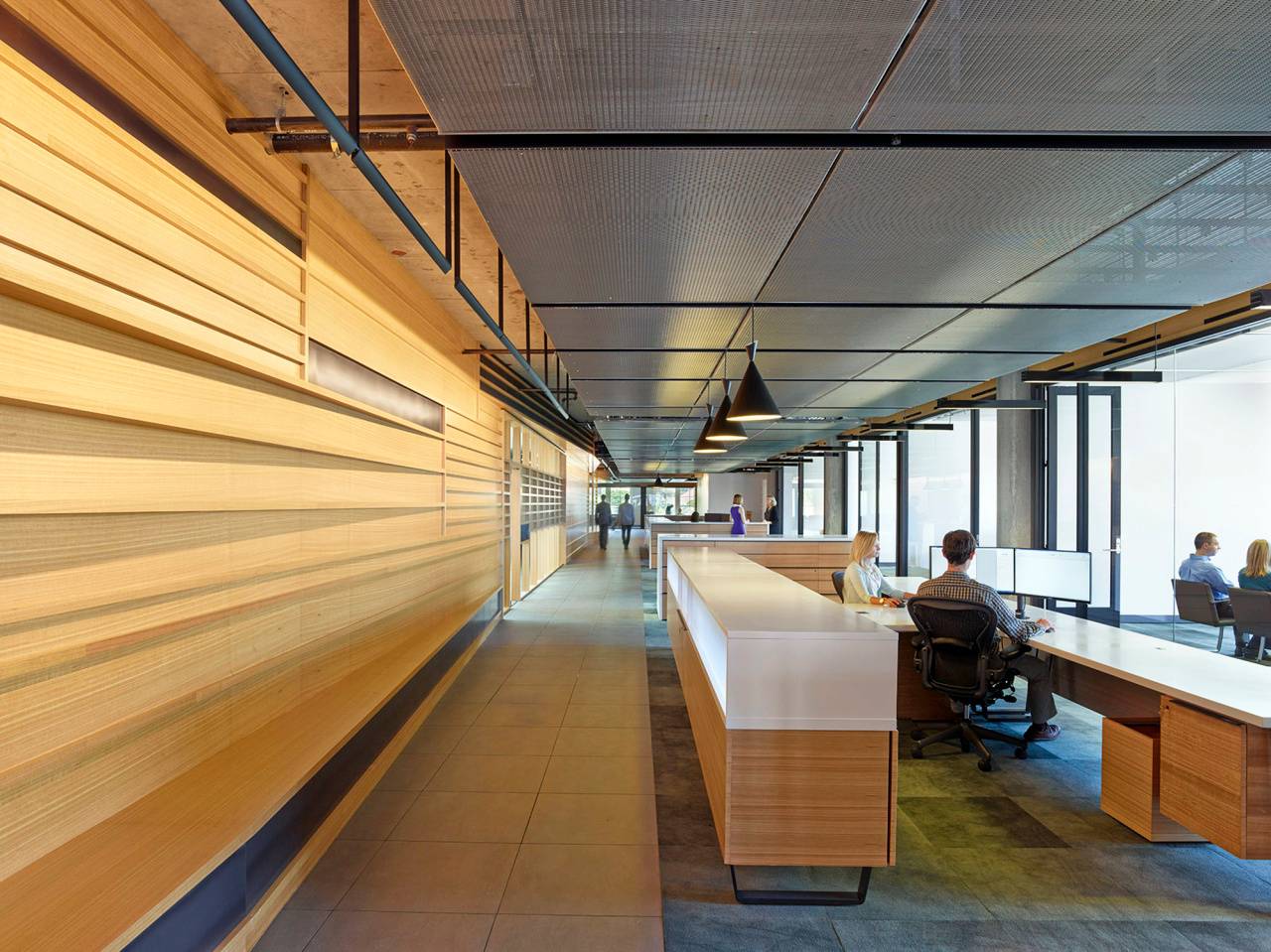

Design ceilings (aluminium)

GKD - GEBR. KUFFERATH AG Variant:

Ceiling system made from metal mesh.

Jump to:
BOS
+44 (0)7500333164 Website

Application

Suspended ceilings, especially where design and acoustics are a priority.

Description

Ceiling system made from metal mesh available in two options - Design and Acoustic.


Features and benefits:

  • Stable and lightweight.
  • Matched components from a single source.
  • Sophisticated complete solutions.
  • Certified systems.
  • Optimized logistics.
  • Corrosion resistant.
  • Easy care.
  • Fully adjustable.
  • Easy to install.
  • The Silentmesh version of these panels ensures a high degree of room-based acoustic comfort.

General information

Color

Black

Bronze

Brown

Copper

Gold

Show more

Finish

Mill

Anodized

Coated

Material

Aluminium

Stainless steel

Shape

Square

Rectangle

Trapezoid

Parallelogram

Other

Length

Bespoke

Width

Bespoke

Warranty description

One year

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Ceiling support

Manufacturer's standard.

Guidance for specification option:

Module sizes are freely selectable from 500 x 500 mm to 4000 x 1250 mm. The pattern repeat is to be considered.


Installation of the load-bearing substructure using metal anchors approved by the building authorities, load capacity ≥5 kN per anchor. Suspended using adjustable, galvanized nonius brackets, spacing as per static requirements.


Substructure, base frame/raster consisting of galvanized CD profiles as base profile. Support profile grid/raster made of clamping rails (alternatively as joint backing with bandraster grid profiles).

Support fasteners

Manufacturer's standard.

Guidance for specification option:

The surface layer is attached to the clamping profiles using a mounting bracket on the back.

Ceiling units

PC-ALU 6020.

Guidance for specification option:

Material: Aluminium.

Standard panel size: 2500 x 1250 mm.

Maximum mesh width: 3900 mm.


Free area: 35%.

Mesh thickness: 3.7 mm.

Mesh weight: 2.7 kg/m².

PC-ATLANTIC ALU.

Guidance for specification option:

Material: Aluminium.

Maximum mesh width: 2000 mm.


Free area: 43%.

Mesh thickness: 4.0 mm.

Mesh weight: 1.9 kg/m².

Manufacturer guidance

Colour/ finish specified separately below.

Barriers in ceiling void

-

Acoustic barriers

-

System accessories

-

Manufacturer guidance

Insert details as required for lights, downlights, sprinklers etc. as these can be fitted using dedicated recesses made during production.

Colour/ Finish

Black Brown - C35.

Champagne - EV2.

Dark Bronze - C34.

Dark Copper - COPPER 04.

Gold - EV3.

Show more

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

51 %
