Ceilings - Large Size Baffles - Wood veneer (Foam core MDF)

Verified by manufacturer 3 months ago

BCL Timber Projects Ltd Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Fleet Operator Recognition Scheme

    Fleet Operator Recognition Scheme

    Certificate type

  • FSC

    FSC

    Certificate type

  • Grown in Britain - GiB

    Grown in Britain - GiB

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • PEFC

    PEFC

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • TRADA

    TRADA

    Certificate type

Timber slat baffle system for internal wood ceiling applications using a foam core MDF + real wood veneers in an array of options.

Jump to:
+44 (0)118 934 4155 Website

Application

For internal ceiling lining applications.


Large timber slat sizes which are unpractical in solid wood.

Description

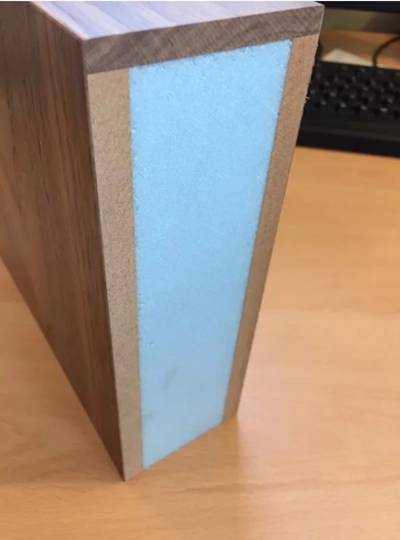

BCL Large Size Baffle Slats use a lightweight foam core MDF substrate to almost any size, paired with a range of real wood veneers, to create large-size timber baffle systems that have significantly less overall structural loading and allow for safe manageable weights on site.


The foam core baffles allow the specification of real wood finishes in large sizes, unachievable with solid wood. These lightweight real wood veneer baffles will also bring all the benefits of a BCL panel system.


Features and benefits:

  • Full systems fire testing to EN 13501-1.
  • BIM level 4 full system design (in Revit or similar).
  • SIDOS compliant ‘bomb-blast’ grids available.
  • Flexible panel sizes to suit layouts - no cutting = < 1% waste.
  • Secret-fixings - timber slats age better and coatings last longer.
  • FSC® and PEFC certified timber - Full BREEAM Mat03 credits.
  • High recycled content (typically 30%).
  • High natural/organic content (typically 25%).
  • Bespoke fire retardant colour coatings.
  • Coloured acoustic fabrics.
  • Anti-viral/ bacterial infection control options.
  • Direct installation service.

General information

Color

Beige

Black

Bronze

Brown

Copper

Show more

Finish

Woodgrain

Wood grain

Lacquered

Coated

Gloss

Show more

Material

Wood

Timber

Polyester fibre (PET)

Aluminium

Medium density fibreboard (MDF)

Show more

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

30 year

Uniclass

Ss_30_25_22_01 Acoustic baffle suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Acoustic baffle suspended ceiling systems

System performance

-

Manufacturer guidance

Up to Class A acoustic (BS EN ISO 11654) and up to Euroclass B-s2, d0 Reaction to Fire (EN 13501-1).

Consult manufacturer for fire and acoustic testing and performance details.

Ceiling support

CD-1 Concealed Demountable.

Guidance for specification option:

Panels 'lay-in' to a fully concealed T-bar sub-grid and can be easily lifted, tilted and demounted from grid (with or without safety tethers).

CS-1 Concealed Semi-fixed.

Guidance for specification option:

Panels 'screw-up' to the underside of fully concealed T-bar sub-grid, can be mechanically unscrewed to demount if required.

Ceiling units

50 mm wide x 250 mm deep slats + 200 mm gap (open screen/ clip-in slats).

75 mm wide x 275 mm deep slats + 275 mm gap (open screen/ clip-in slats).

100 mm wide x 300 mm deep slats + 300 mm gap (open screen/ clip-in slats).

150 mm wide x 300 mm deep slats + 250 mm gap (open screen/ clip-in slats).

Acoustic insulation

Acoustic fabric + 25 mm insulation at 45 kg/m3.

Acoustic fabric + 50 mm insulation at 45 kg/m3.

12 mm MDF backing board veneered (reflective).

12 mm MDF backing board painted (reflective).

Open-screen (non-acoustic).

Manufacturer guidance

The acoustic fabric runs behind the timber slats and comes in several available ranges, varying in colours, texture and thickness. Multiple colours can also be combined across a system to generate distinctive looks or align with your client’s brand colours.

Timber species

Ash Crown.

Whitewash White Oak.

White Oak A.

White Oak B.

White Oak C.

Show more

Fabric colour

Plain - Ash.

Plain - Grey.

Plain - Lemon.

Plain - Lilac.

Plain - Orange.

Show more

Third-party certification

Not required.

FSC certified.

PEFC certified.

Manufacturer guidance

Please contact BCL to determine which timber is certified FSC® or PEFC according to your requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

BCL panels are suitable for repurposing, easy to demount and modify or break down into constituent parts for individual material recycling - typically 90–95% of a system can be recycled (based on material mass).

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Guidance for specification option:

Typically. Varies depending on configuration - contact BCL directly for more information.

Third party certifications

Constructionline Gold

Constructionline Gold

Construction Line (Gold Certification)

Fleet Operator Recognition Scheme

Fleet Operator Recognition Scheme

FORS (Bronze) Certification

FSC

FSC

FSC Chain - of - Custody Certification (TT-COC-006412)

Grown in Britain - GiB

Grown in Britain - GiB

Grown in Britain - GiB - UK Chain - of - Custody Certification

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 : 2015 - Quality Management Systems

PEFC

PEFC

PEFC Chain - of - Custody Certification (BMT-PEFC-COC-1589)

Constructionline

Constructionline

Social Value Certificate

Health & Safety Accreditation

Health & Safety Accreditation

SSIP Acclaim - Health & Safety Accreditation

TRADA

TRADA

TRADA / Timber Development UK Certificate

Health & Safety Accreditation

Health & Safety Accreditation

TSHP - Risk Management

Literature

BCL - Wood Veneer Options

BCL - Wood Veneer Options

BCL Acoustic Timber Systems Technical Information Handbook (new)

BCL Acoustic Timber Systems Technical Information Handbook (new)

BCL - Anti-viral Acoustic Fabric Range

BCL - Anti-viral Acoustic Fabric Range
