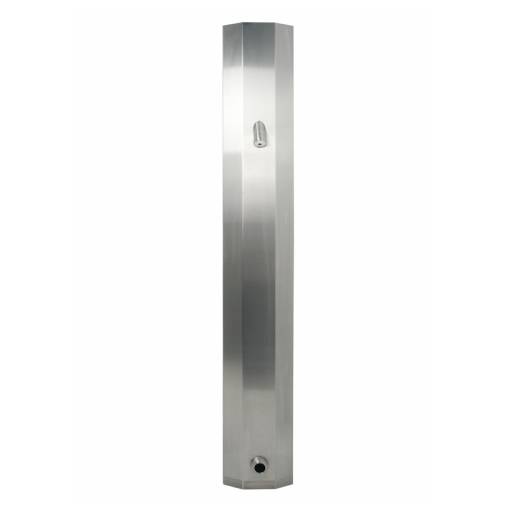

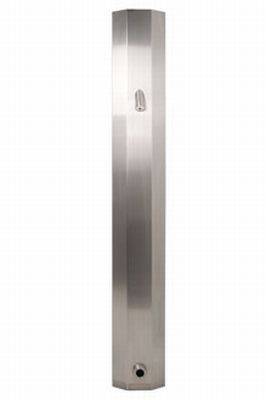

Ceiling Height Tower Showers
Verified by manufacturer over a year ago
SH01-004
SH01-004
Complete shower unit ready to fix onto the wall. Constructed from robust 316 stainless steel, DVS shower towers offer a safe but attractive, high security and easy to install solution.
Application
For high-security applications.
Description
Constructed from robust grade 1.4403 stainless steel, the Ceiling Height Tower Shower offers a safe but attractive, high security and easy to install solution. A choice of either wave-on, tactile or push operation is available and units are self-closing offering energy efficiencies and water savings.
Features and benefits:
- Robust 1.5 mm stainless steel construction.
- High impact resistance.
- Tamper-proof.
- Wave-on, push, or tactile operation.
- Easy to install.
- Up to 50% savings on water.
- Available as Standard, with built-in TMV3 or Ceiling Height.
General information
Color | Silver Guidance for specification option: Stainless steel |
Finish | Brushed |
Material | Stainless steel |
Shape | Rectangle |
Length | 70 mm |
Width | 140 mm |
Height | 1480 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Shower fittings package
Approvals | TMV3. |
Form | Wall mounted shower unit with shower button and shower head. |
Materials | |
Body | 316 stainless steel. |
Finish and colour | Brushed. |
Product Reference | SH01-004 self closing operation |
Accessories | Manufacturer guidanceA wide range of control systems, temperature blending valve adjusters and other accessories are available to complete the system - consult manufacturer's literature for details. |
Shower button | AC02-046. Guidance for specification option: Tactile cold switch with 50 mm stainless steel bezel. AC02-047. Guidance for specification option: Tactile hot switch with 50 mm stainless steel bezel. MT00-010. Guidance for specification option: Wall mounted (auto close) - top inlet. MT00-011. Guidance for specification option: Wall mounted (auto close) - back inlet. MT00-012. Guidance for specification option: Wall mounted, concealed (auto close) - top inlet. |
Shower head | SH07-040. Guidance for specification option: High security - 30° (80 mm long from top). SH07-042. Guidance for specification option: High security, ceiling mounted. |
Thermostatic mixing valve | Not required. AC17-047. Guidance for specification option: Thermostatic mixing valve 4 in 1. 15 - 22 mm, TMV3 approved. |
Tower | Ceiling height TMV3 tower with high security showerhead. |
Operation | Self closing operation. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
