Ceiling Fan Firestop

Verified by manufacturer 3 days ago

Tenmat Limited

Provides fire protection for penetrations made in floor/ceiling systems for 100 mm and 125 mm ceiling fans.

Jump to:
+44 (0)161 8722181 Website

Application

  • For use in a fire-rated ceiling.
  • Suitable for both domestic and commercial buildings.

Description

The Tenmat Ceiling Fan Firestop has been developed to provide fire protection for penetrations made in floor/ceiling systems for 100mm and 125mm ceiling fans.

In a fire situation, the intumescent lining in the product expands to seal off the opening in the ceiling and creates an effective fire seal and maintains the fire rating of the floor/ceiling system.

Recessed ceiling fans are widely used particularly in residential buildings. Once a hole is made in the ceiling for a fan, the integrity of the construction and its ability to perform in a fire can be reduced significantly.

The penetration must be fire sealed in order to maintain the fire resistance rating of of the ceiling/floor construction as required within Building Regulations.

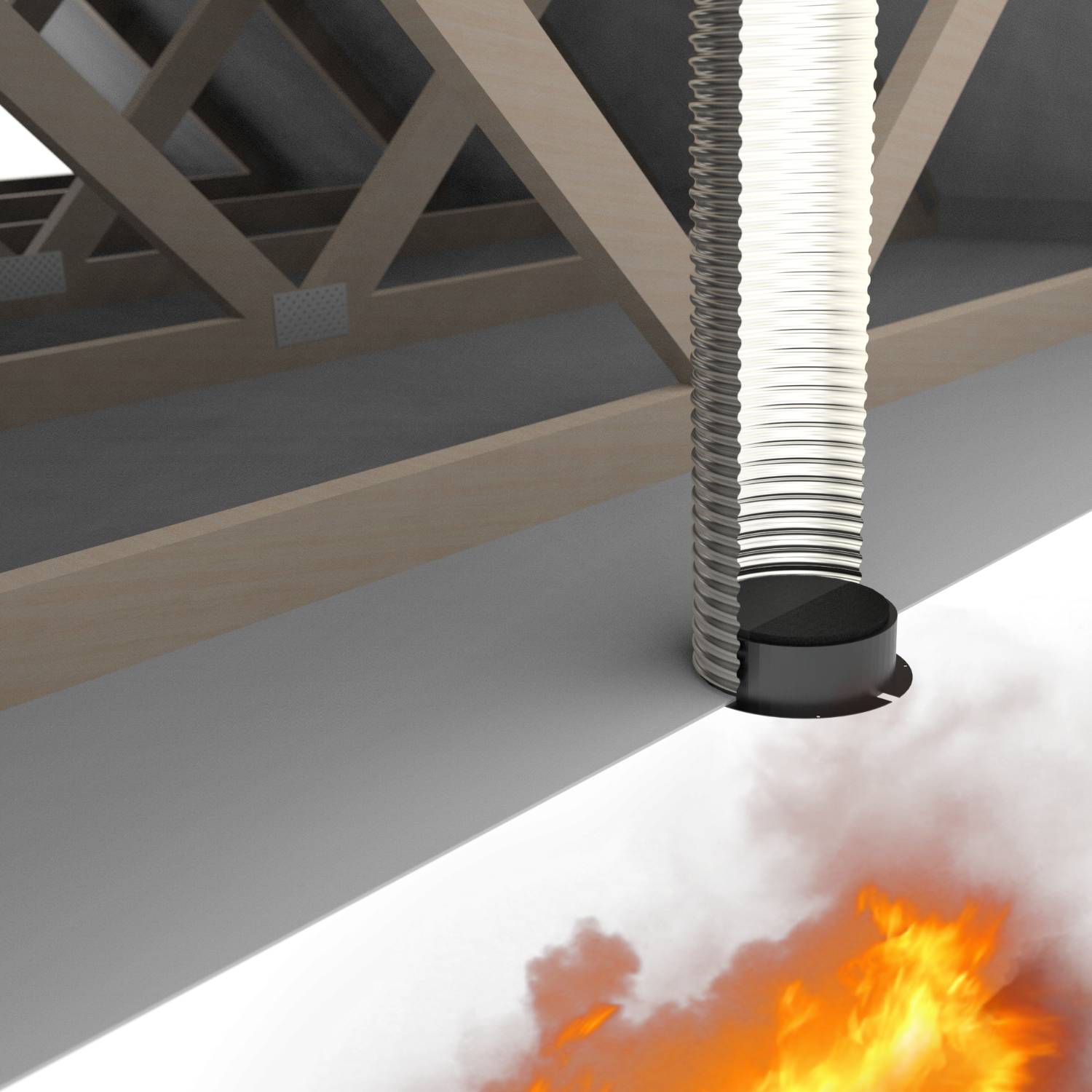

The Ceiling Fan Firestop incorporates a steel mounting ring with integral intumescent lining and duct connector which is fixed into the ceiling lining and allows the ceiling fan to be

installed as normal.

Please check with Tenmat for compatibility with different Ceiling Fan Types.

  • Fire Protection solution for 100mm & 125mm Ceiling Fans
  • Full Scale Fire Tested to BS EN 1365-2 on loaded floor
  • 30 minutes fire rating
  • Test evidence for use in Solid Timber, Metal Web Joist and Engineered I-Beam Floor/Ceiling Systems

General information

Color

Red

Silver

Shape

Circle

Length

100 mm

125 mm

Manufacturer guidance

Diameter.

Width

100 mm

125 mm

Manufacturer guidance

Diameter.

Uniclass

Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary

CAWS

P12/43 Pipe collars

P12/370 Pipe collars

Specification data - Concealed intumescent pipe collars

Classification data

Sizes

100 mm diameter.
125 mm diameter.

Position

Fitted in hole or opening.

Literature

Ceiling Fan Firestop Datasheet

Ceiling Fan Firestop Datasheet
