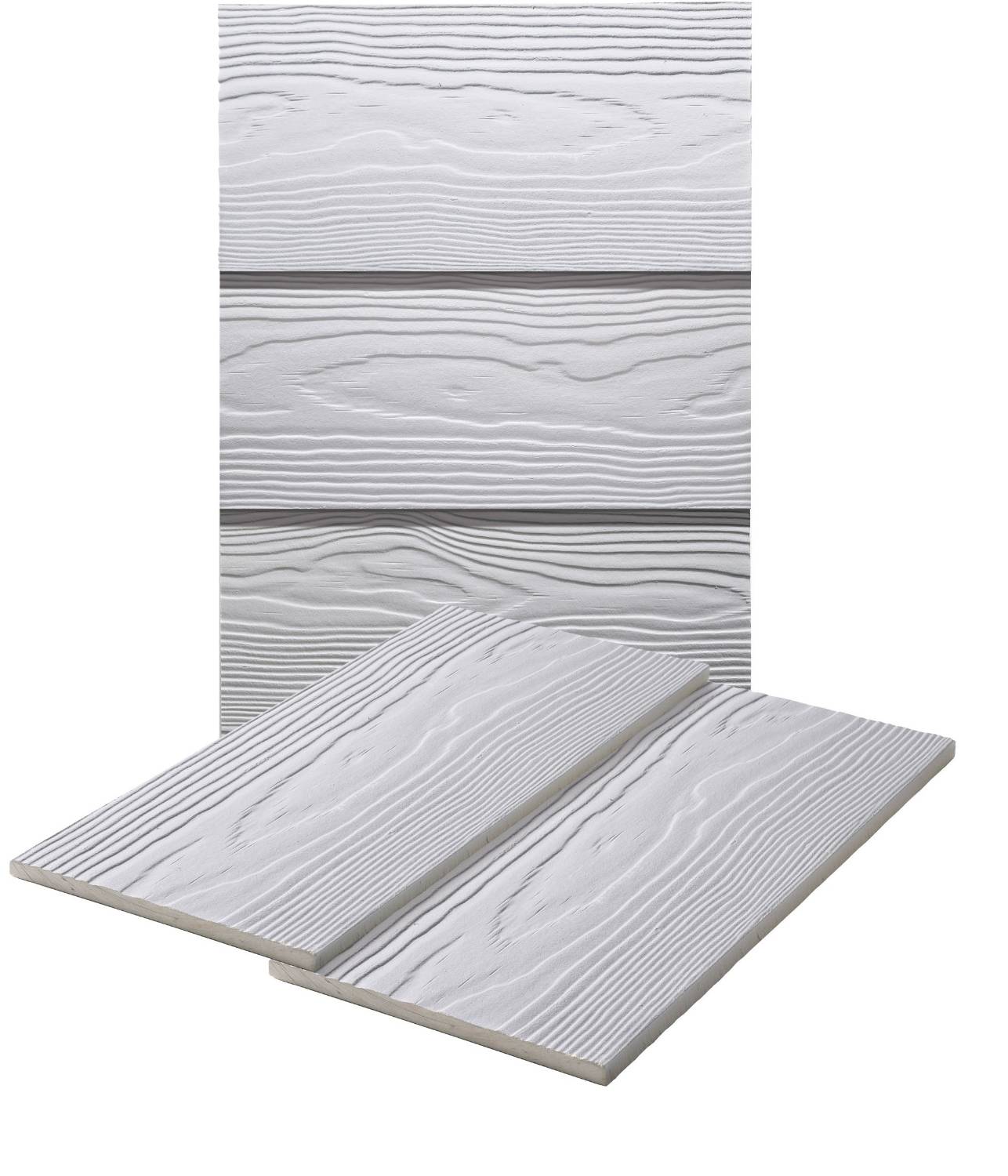

Cedral Lap - Fibre Cement Cladding
Verified by manufacturer 16 hours ago

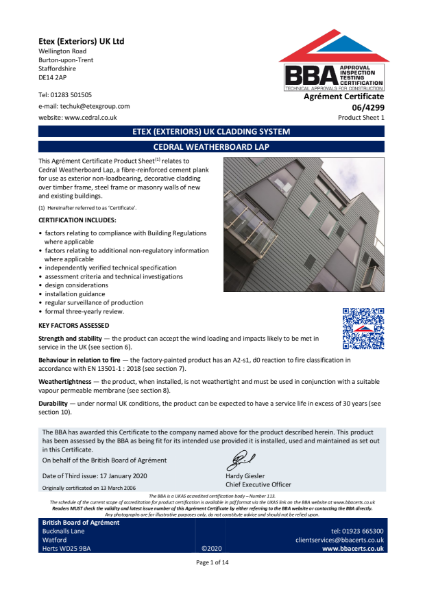

BBA Agrément Certificate
Certificate type
DoP
Certificate type

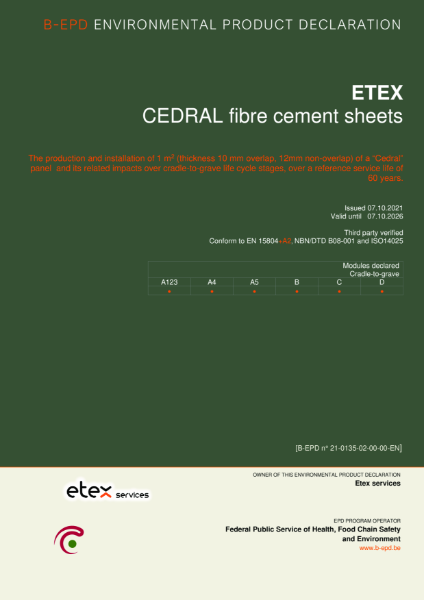

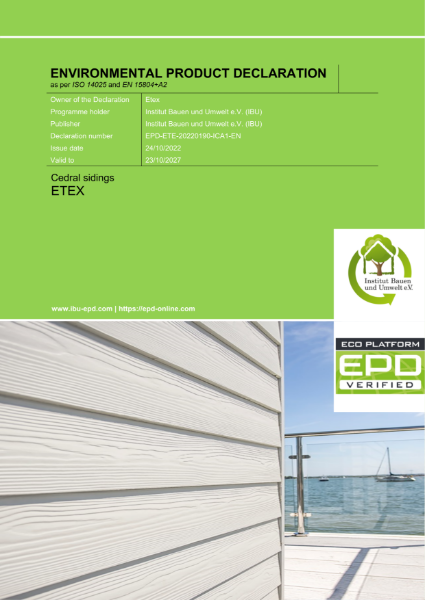

EPD
Certificate type
Rainscreen fibre cement cladding planks designed to be fitted in a traditional lapped style and in a variety of orientations.
Application
Ventilated rainscreen fibre cement cladding solution that can be used to renovate existing buildings, or for new build homes, or commercial builds.
- Full range of trims, profiles and fittings available to create a full system
- Easy to install and to maintain
- Can be installed horizontally or vertically
Description
Fibre cement cladding planks which are designed to be fitted in a traditional lapped style or contemporary open joint vertical fixing. Available in 21 different colours.
Features and benefits:
- Low maintenance, simply wash with soap and water.
- Colour matched accessories and trims.
- A range of tools are available to help install this product; consult manufacturer for details.
- Fire performance classification - A2-s1, d0.
- Estimated life span of 50 years when installed to Cedral's specification.
- Dedicated Technical Team on hand to assist with specification and installation of Cedral fibre cement cladding.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceCedral Lap in available in 21 different colours |
Finish | Woodgrain |
Material | Fibre cement |
Shape | Rectangle |
Length | 3600 mm |
Width | 190 mm |
Height | 10 mm Guidance for specification option: Thickness |
Warranty description | Ten year Guidance for specification option: To qualify Cedral Lap must be installed to Cedral specifications and pass a site check |
Uniclass | |
CAWS | H20/10 Sheet cladding H20/155 Sheet cladding (attached to timber battens) H30/10 Fibre cement H30/120 Fibre cement H92/120 Rainscreen cladding H20/150 Sheet cladding (attached to metal support systems) |
Specification data - Fibre-reinforced cement weatherboards
Standard | To EN 12467. |
Fire rating | To EN 13501-1, Class A2-s1,d0. |
Finished size | 3600 x 190 x 10 mm. |
Face width | 190 mm. |
Thickness | 10 mm. |
Surface texture | Woodgrain. |
Colour | C01 White.C50 Black.C02 Vanilla White.C03 Clay Brown.C05 Platinum Grey.C07 Chalk White.C10 Sky Blue.C15 Steel Grey.C18 Slate Grey.C21 Walnut Brown.C51 Silver Grey.C52 Pearl Grey.C54 Pewter Grey.C71 Sand Yellow.C72 Brick Red.C73 Ocean Blue.C74 Basalt Grey.C75 Metal Grey.C76 Tea Green.C77 Pebble Grey.C78 Cocoa Brown. |
Type | Fibre Cement Facades. Fibre Cement Cladding. |
Accessories | Connection profile. Guidance for specification option: End trim to finish Cedral when used as a single piece on a window reveal or soffit. End profile. Guidance for specification option: Protects the Cedral Lap edges from wear and tear. External corner (symmetric). Guidance for specification option: This universal trim can be used to provide protection on external corners and for stop profile applications. External corner junction. Guidance for specification option: Used as a corner joining piece. Only available in black. 300 mm length. Internal corner. Guidance for specification option: To finish the corner where Cedral meets an internal corner forming a seal between the trim and the corner |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Lithuania Manufacturer guidanceBelgium |
Material | Fibre cement |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.37 kg CO₂ eq/kg |
Recyclability | Guidance for specification option: Recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 4.7 % |
Third party certifications
Third party certifications
Literature
Cedral Facades Inspiration Brochure
Cedral Facades Installation Guide

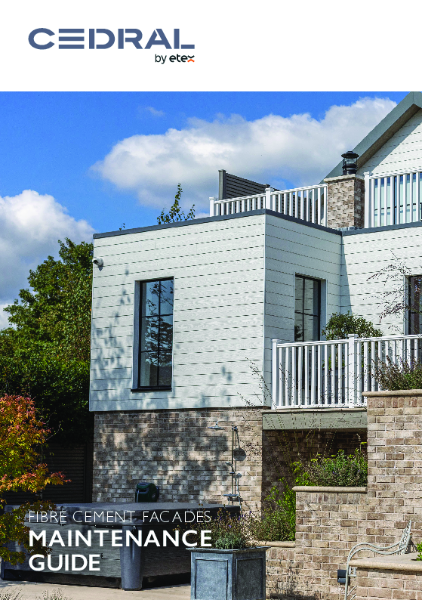

Cedral Cladding Maintenance Guide
Case studies

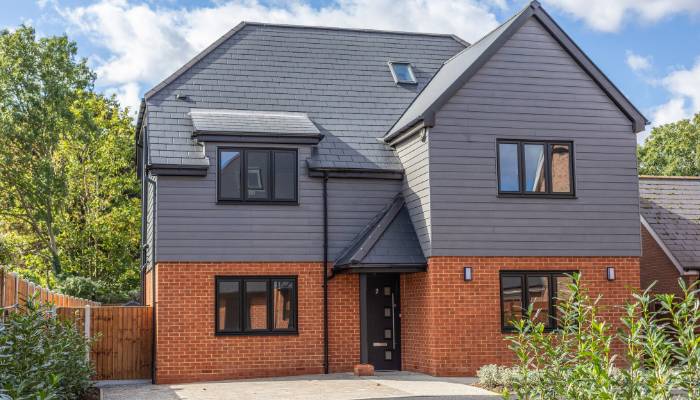

Cedral Lap fibre cement cladding specified by luxury developer Cedarmill Developments

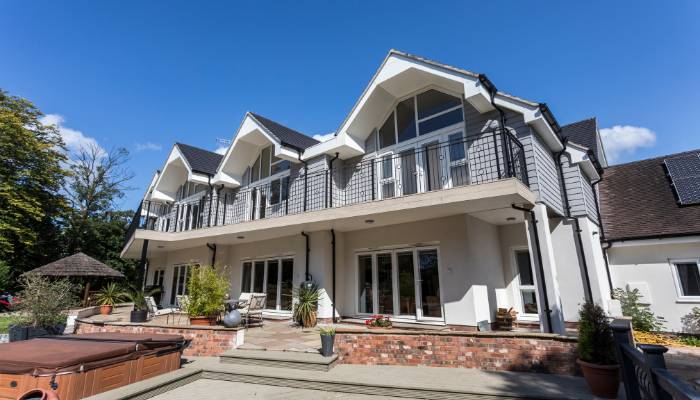

Renovation project featuring Cedral Lap fibre cement cladding

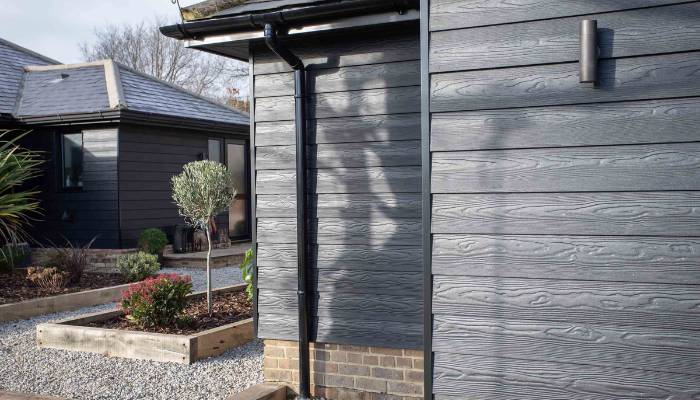

Renovated Westerham farmhouse clad with Cedral Facades

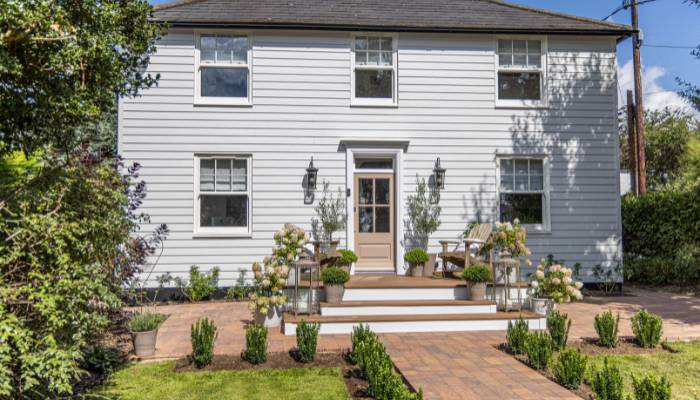

The White House featuring Cedral Lap cladding
