CCTV camera 4MP IR Bullet (ANO-L7082R)
Verified by manufacturer 6 months ago
4MP IR bullet camera.
Application
For indoor and outdoor applications.
Description
4MP IR bullet camera.
Features and benefits:
- 4 MP resolution, up to 30 fps.
- Colour: 0.1 lux (f1.6, 1/30s), B/W: 0 lux (IR LED On).
- 3.3–10.3 mm motorized varifocal lens.
- IR viewable length: 30 m (98.42 ft).
- Day and night (ICR), WDR (120 dB).
- H.265, H.264, MJPEG, multiple streaming supported.
- Defocus detection, directional detection, motion detection, enter/exit, tampering.
- Hallway view (95°/270°), LDC support, WiseStream II.
- Micro SD/SDHC/SDXC memory slot (128 GB maximum).
- IP66.
General information
Color | White |
Material | Plastic |
Shape | Other |
Length | 262 mm |
Width | 78 mm |
Height | 78 mm |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Specification data - Internet protocol (IP) bullet cameras
Image sensor | 1/2.8-inch CMOS. |
Spectrum | Colour/ monochrome. |
Resolution (minimum) | 2560 x 1440.1920 x 1080.1280 x 960.1280 x 720.800 x 600.800 x 448.720 x 576.720 x 480.640 x 480.640 x 360.320 x 240. |
Minimum illumination | Colour 0.1 lux at f1.6 (1/30 s), monochrome 0 lux (IR LED on). |
Integrated illumination | Infrared. |
Camera functions | |
Focus | Simple focus. |
Shutter | Minimum/ Maximum/ Anti-flicker (1/5–1/12000 s). |
Automatic gain control | Low/ Middle/ High. |
White balance control | ATW/ AWC/ Manual/ Indoor/ Outdoor. |
Backlight compensation | BLC, WDR, SSDR. |
Wide dynamic range | 120 dB. |
Day/ night mode switching | Automatic (ICR). |
Privacy masks | Six, rectangular zones. |
Display type | Camera title displayed up to 85 characters. |
Lens | |
Format | Varifocal. |
Iris | Automatic, d.c. drive. |
Focal length | 3.3–10.3 mm.Guidance for specification option: 3.1x motorized varifocal. |
Aperture range | F1.6–F3.3. |
Angle of view | H: 95–28°, V: 51–15°, D: 113–32°. |
Video motion detection | Four, polygonal zones. |
Power supply | PoE. |
Network connectivity | 10/100BASE-T via RJ-45. |
Network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP. |
Video compression formats | H.264/H.265, MJPEG.Guidance for specification option: H.265/H.264: Main/High. |
Video streaming | Unicast (6 users)/ Multicast. |
Integral memory storage (minimum) | 512 MB RAM, 256 MB Flash. |
Camera housing | |
Ingress protection (minimum) | To BS EN 60529, IP66. |
Literature

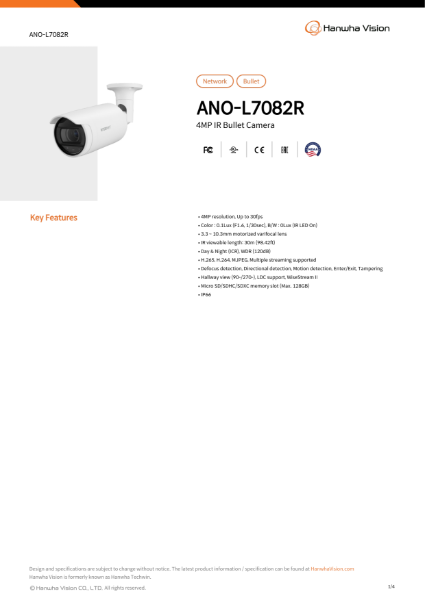

CCTV camera 4MP IR Bullet (ANO-L7082R) data sheet
