Castellated Panels

Verified by manufacturer 2 days ago

Castellated Panels - Aluminium

Kencar Limited Variant:

Decorative castellated aluminium or steel panels, profiled to add depth and definition to facades. Available in bespoke sizes and finishes.

Jump to:
01922277273 Website

Application

  • Suitable for use as decorative cladding on building facades for both new and refurbishment projects.
  • Suitable for vertical or horizontal orientation.

Description

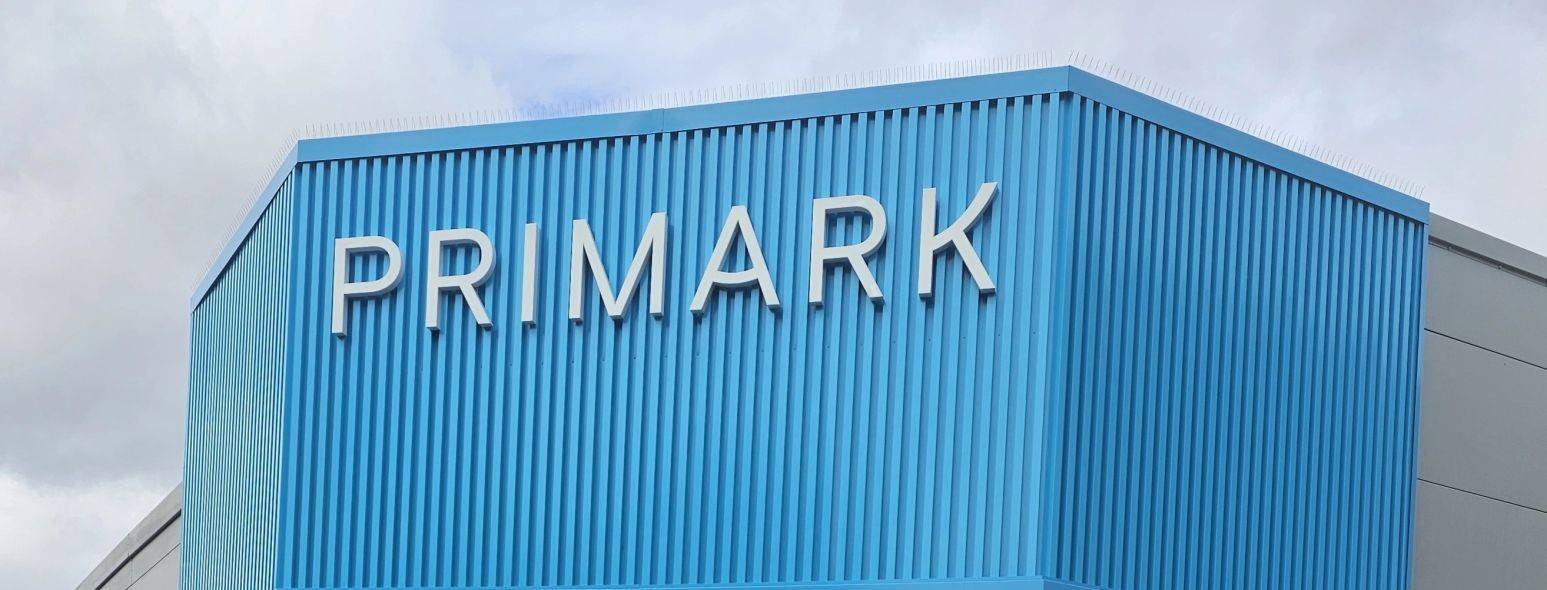

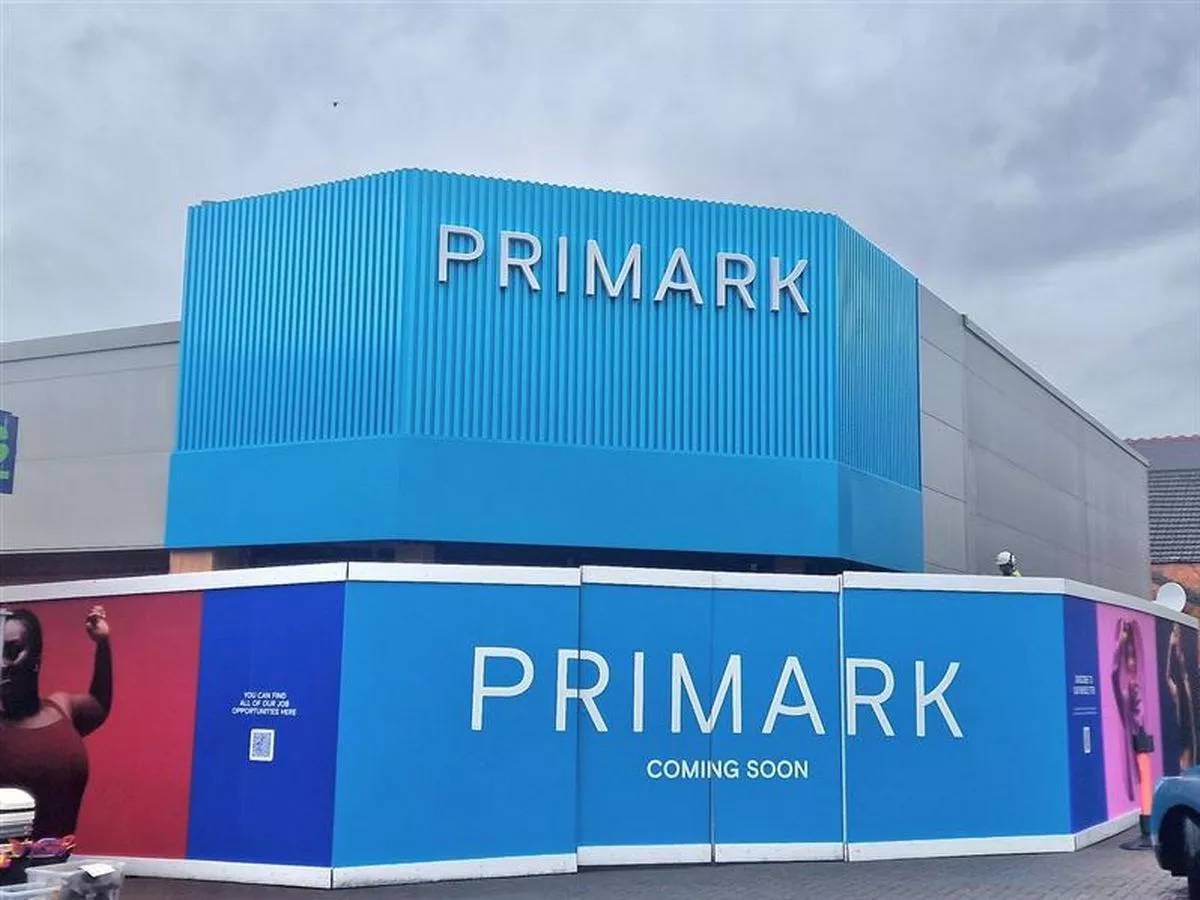

Kencar Castellated Panels are profiled facade panels designed to introduce depth, rhythm, and visual interest to building exteriors. The castellated form features a repeating stepped profile, giving the facade a textured and robust appearance. Panels can be fabricated from aluminium or galvanized steel, typically in 2 mm or 3 mm thickness, and supplied in project-specific widths and lengths.

Features and benefits:

  • Distinctive castellated profile adds depth and texture to facades.
  • Wide choice of finishes, including PPC, anodized, galvanized or mill finish.
  • Enhances facades by creating shadow lines and strong visual definition.
  • Robust, durable and low-maintenance solution.
  • Compatible with rainscreen and curtain walling systems.
  • A range of castellated profiles is available for different visual and performance effects.

General information

Color

Other

Finish

Powder-coated

Mill

Galvanized

Anodized

Material

Aluminium

Steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Pr_25_71_51_03 Aluminium profiled sheetsPrimary
Pr_25_71_51_33 Galvanized carbon steel profiled sheets

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium profiled sheets

Classification data

Thickness (nominal)

2 mm.
3 mm.

Profile

-

Form

Castellated.

Height

20 mm.
Bespoke.

Troughs

20 mm.
Bespoke.

Crowns

20 mm.
Bespoke.

Cover width

-

Manufacturer guidance

Insert requirements.

Side 1 (outer)

-

Factory finishes

Anodized.
Mill.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Material

Aluminium.

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium
Steel

Literature

Castellated Panels Drawing

Castellated Panels Drawing
