Cast Iron Sunburst Tree Grille

Verified by manufacturer 7 months ago

BX 431-3-CI

Broxap Street Furniture Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

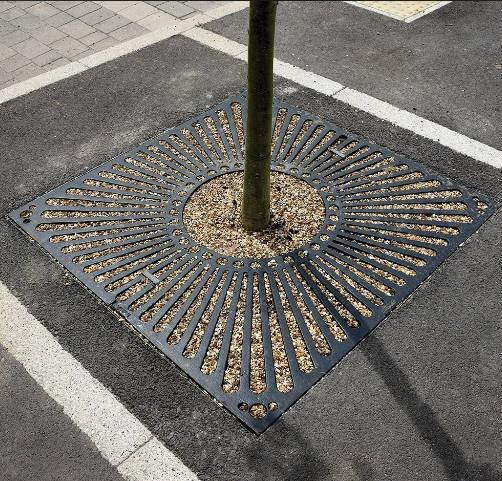

Sturdy cast iron tree grille, supplied with a galvanised steel support frame and security clamps.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

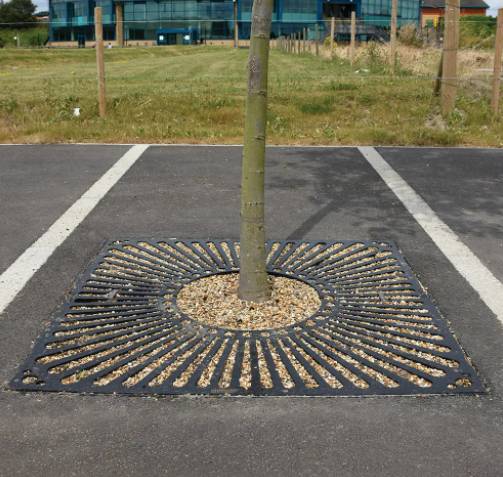

Suitable for use in town centres, shopping centres or car parks where trees are at risk of damage from foot or vehicular traffic.


Broxap offers a range of cast iron tree grilles and steel tree guards to promote tree growth and tree protection as part of its street furniture range. Our grilles can also be modified to incorporate holes for water irrigation or other bespoke features.


Our tree protection range comprises of 3 main products: Tree Grilles, Tree Frames and Tree Guards. In addition to the standard range, Broxap is the exclusive UK supplier of Meierguss load bearing, cast iron, tree grilles and steel tree guards. This makes Broxap a unique provider of tree protection products.


Anti-Theft Clamps


Our standard anti-theft clamps prevent unwarranted removal of grille segments. This provides the ultimate tree/sapling protection and helps to ensure correct alignment of individual pieces.

Description

Sturdy cast iron tree grille, supplied with a galvanised steel support frame and security clamps.

Designed to prevent trees being damaged by traffic, bicycles, vandals and animals.


Features and benefits:

  • A range of vertical tree guards are also available to further protect young or smaller trees

General information

Color

Finish

Coated

Material

Cast iron

Shape

Square

Length

1000 mm

1200 mm

1400 mm

900 mm

Width

1000 mm

1200 mm

1400 mm

900 mm

Warranty description

One year

Uniclass

Pr_45_63_64_87 Tree grillesPrimary

CAWS

Q10/305 Tree grilles and surrounds

Q50/37 Tree grilles

Q50/262 Tree grilles

Specification data - Tree grilles

Material

Cast iron.

Finish

Coated.

Colour

Coated with Waterside Paint Specification.

Coated Black RAL 9005.

Coated Traffic Red RAL 3020.

Coated Dark Blue RAL 5013.

Coated Mid Blue RAL 5015.

Coated White RAL 9016.

Coated White Aluminium RAL 9006.

Coated Anthracite Grey RAL 7016.

Coated Traffic Yellow RAL 1023.

Coated Holly Green BS4800 14 C 39.

Coated Goose Grey BS4800 00 A 05.

Coated Moss Green RAL 6005.

Coated Dark Grey BS4800 18 B 25.

Coated Duchess Blue BS4800 20 C 40.

Coated to a none standard BS/RAL colour.

Shape

Square.

Size

1000 x 1000 mm.

Internal aperture

450 mm.

Number of parts

2.

Accessories

Heavy duty frame.

Medium duty frame.

Weight

68 kg.

Configuration

Broxap's Cast Iron 'Sunburst' Tree Grille 1000 mm

Sustainability data

Material

Cast iron

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

Literature

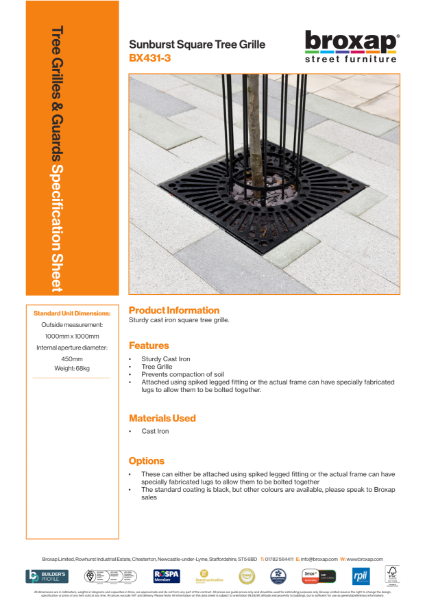

Sunburst Square Tree Grille Specification Sheet

Sunburst Square Tree Grille Specification Sheet
