CASEA bauprotec RHS - Multi-Purpose Render - Highly Polymer Modified Render

Verified by manufacturer today

SMET Building Products Ltd

Highly polymer modified render, designed for hand and machine application produced to EN 998-1

Jump to:
BOS
+44 (0)28 3026 6833 Website

Application

A highly polymer-modified render for facades and walls constructed with smooth and low-absorbent materials. Adhesive and base coat on insulation and cement particle boards. The product’s special composition allows the product to breathe and permits constant hygrometric exchange between the substrate and the environment.

Description

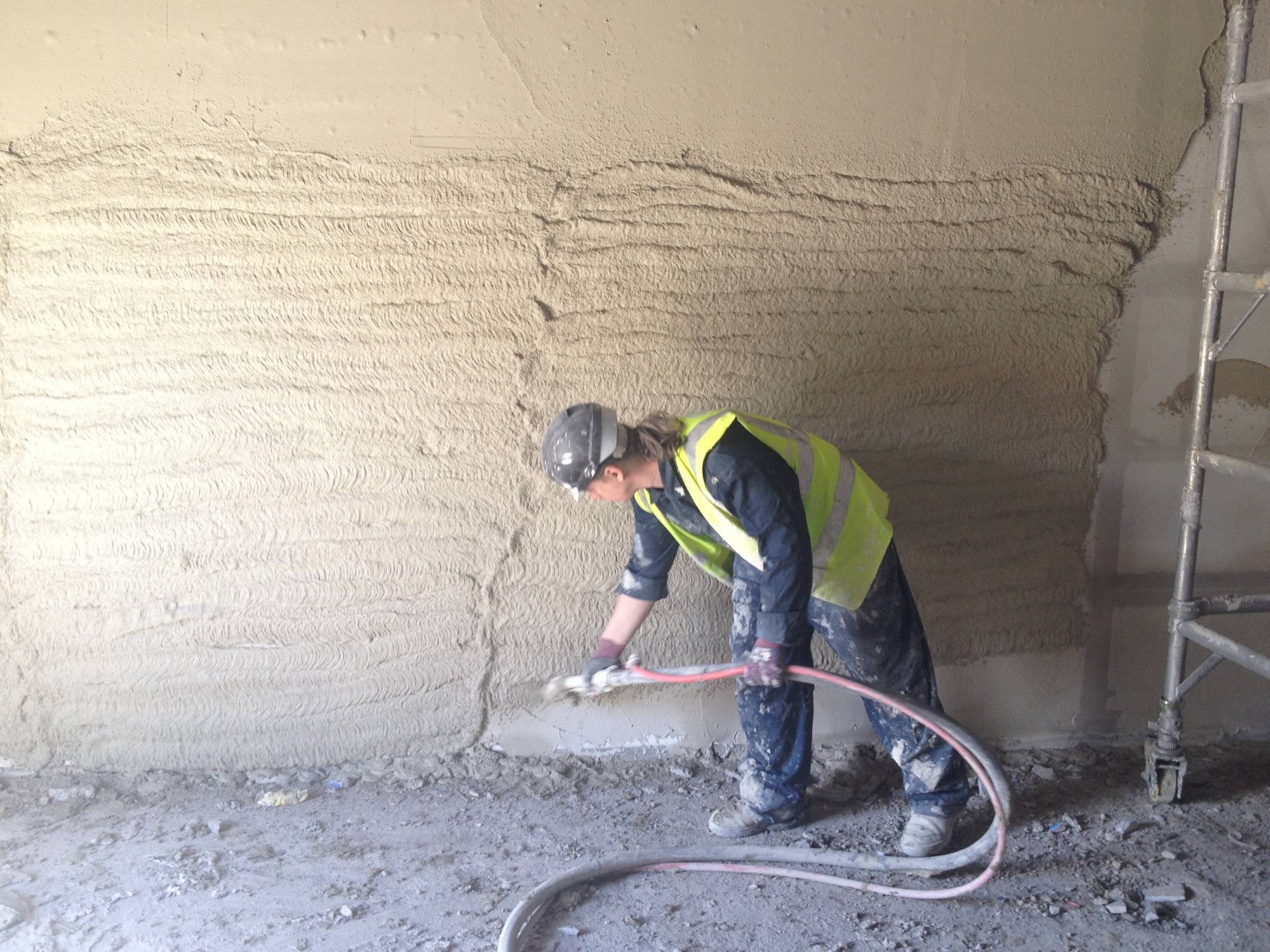

bauprotec RHS is a factory-produced highly polymer-modified render specially designed for hand and machine application produced to EN 998-1

It’s manufactured from a controlled blend of selected aggregates, cement, polymers, and other components to give a high-quality weather-resistant rendering product suitable for external rendering and internal plastering.

The unique properties of this render make it suitable for multiple purposes, such as an adhesive bridge/key coat on difficult substrates, and as an adhesive and fiberglass reinforcement base coat on insulation and cement particle boards.

Features and benefits:

  • Multi-Purpose.
  •  Excellent Adhesion and Flexibility.
  •  Machine or Hand Application.
  •  High Yield.
  •  Weather Resistant.
  •  CE Marked.
  •  EN 998-1

Available in 25kg bags, 42 bags per pallet.

This SMET Render is specified in the Lidl Render System – have a look at the SMET render system used in Lidl Macroom Cork, Lidl Lincolnshire, Westwickham Lidl, Lidl Hull, Glenageary Lidl, Lidl Barnsley, among others.

General information

Uniclass

Pr_35_31_64_65 Polymer-modified rendersPrimary

CAWS

M20/160 Proprietary cement gauged render

M20/19 Proprietary cement gauged render

Product range

Renders

Specification data - Polymer-modified renders

Classification data

Dry density

1400 kg/m³.

Manufacturer guidance

Dry bulk density

CompressiveStrength

CSIII as per EN 998 approx 6.0 N/mm².

Adhesion

≥0.08 N/mm² FP A,B or C.

Capillary absorption

W 2.

Manufacturer guidance

Capillary water absorption

Water vapour permeability

μ ≤25.

Typical yield

1.40 kg/mm/m².

ThermalConductivity

≤0.39 W/(mK), ≤0.43 W/(mK).

Guidance for specification option:

  • λ10, dry,mat ≤ 0.39 W/(mK) for P=50%.
  • λ10, dry,mat ≤ 0.43 W/(mK) for P=90%.

Manufacturer guidance

(tabular value)

Reaction to fire

A1 non-combustible.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Manufacturing plant location

Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Self-declared

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/kg)
Stage:A1–A3 ('Production stage')
Normalised unit : 2.06 (kg CO₂ eq/kg)
Declared unit : 2.06

Lower emissions

Expected Life

50 year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Vectorworks
-

1

ARCHICAD
-

1

IFC

IFC2X3

5

AECOsim
-

1

Revit

Revit 2016

6

Literature

TDS CASEA bauprotec RHS - Multi Purpose Render

TDS CASEA bauprotec RHS - Multi Purpose Render

BES 6001 Responsible Sourcing of Products

BES 6001 Responsible Sourcing of Products

BSI Certificate of Registration ISO 14001:2015

BSI Certificate of Registration ISO 14001:2015

BSI Certificate of Registration ISO 45001:2018

BSI Certificate of Registration ISO 45001:2018

BSI Certificate of Registration ISO 9001:2015

BSI Certificate of Registration ISO 9001:2015

Irish Green Building Council Membership Cert _Smet Building Products Ltd_ valid until 26

Irish Green Building Council Membership Cert _Smet Building Products Ltd_ valid until 26

UKGBC_Member Certificate - Smet Building Products Ltd_valid until 26

UKGBC_Member Certificate - Smet Building Products Ltd_valid until 26

Case studies

LIDL North Hykeham | SMET Bauprotec Render Spec | Adston Construction

LIDL North Hykeham | SMET Bauprotec Render Spec | Adston Construction

Lidl Rathfarnham | SMET Bauprotec Render spec | NRS group

Lidl Rathfarnham | SMET Bauprotec Render spec | NRS group

Lidl Waterlooville | SMET Bauprotec Render System | Hargreaves Group

Lidl Waterlooville | SMET Bauprotec Render System | Hargreaves Group

Lidl Chichester West Hampnett Road | SMET Bauprotec | Soldi Investments

Lidl Chichester West Hampnett Road | SMET Bauprotec | Soldi Investments

Lidl Andover | SMET Bauprotec Render System | B Team Shopfitters

Lidl Andover | SMET Bauprotec Render System | B Team Shopfitters

Lidl Tuam | SMET Bauprotec Render System | McCallion Group

Lidl Tuam | SMET Bauprotec Render System | McCallion Group

Lidl Youghal Co Cork | SMET Bauprotec Render System | NRS Construction

Lidl Youghal Co Cork | SMET Bauprotec Render System | NRS Construction

Lidl Ardee, Co Louth | bauprotec Render System | available from SMET

Lidl Ardee, Co Louth | bauprotec Render System | available from SMET

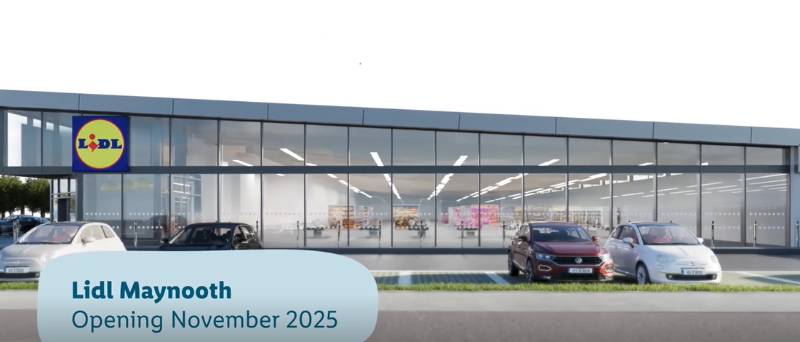

Lidl Maynooth Co Kildare | SMET supplies bauprotec Render System
