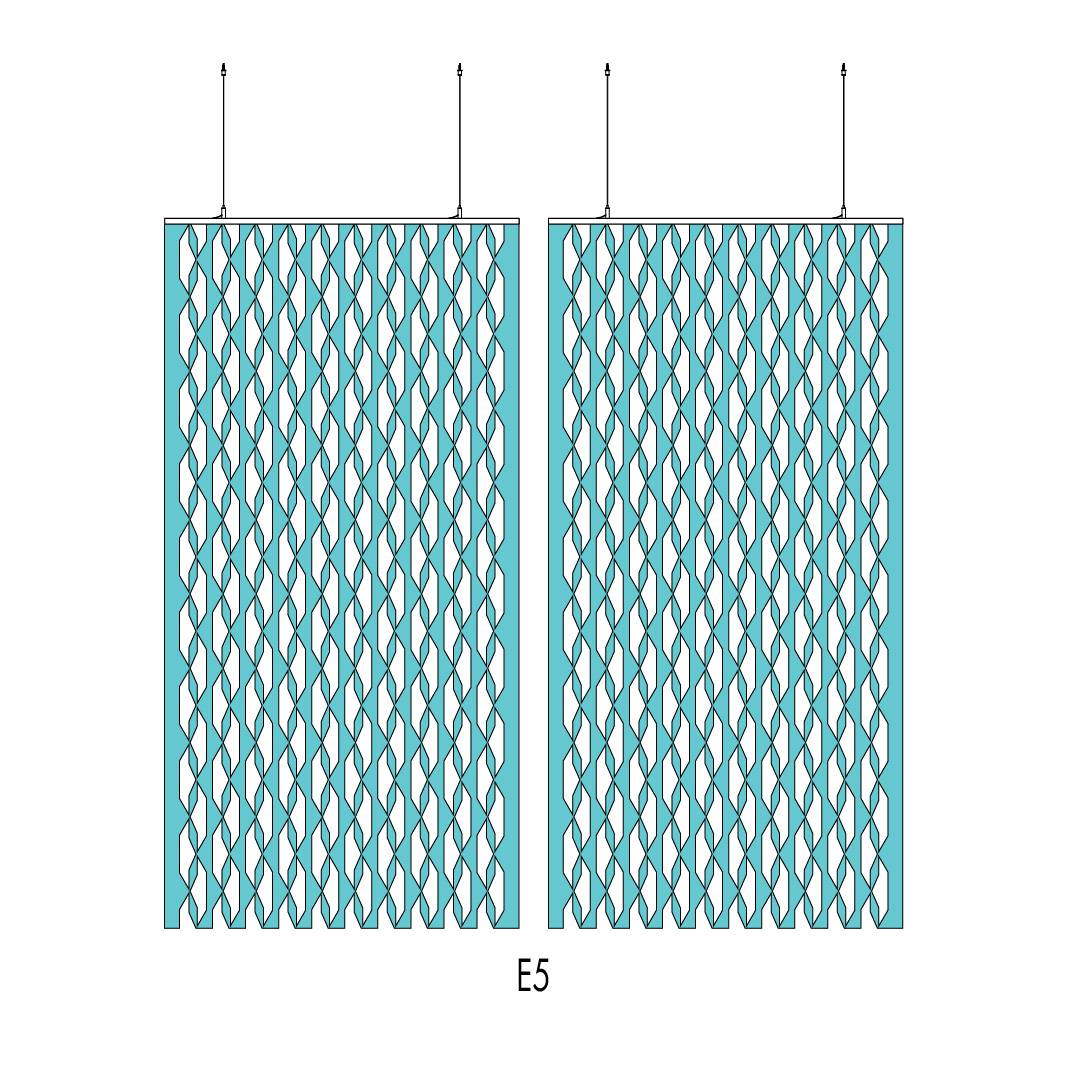

Cascade™ Expanding Screen E5
Verified by manufacturer 3 months ago
Green Tag
Certificate type
HPDC Certification
Certificate type
Hanging screens
Application
Free Hanging - open-plan office spaces, meeting rooms, hotel lobbies, restaurants and bars, and exhibition spaces.
Description
Cascade™ screens are suspended from the ceiling to create subtle acoustic features. The screens can be used to create separate spaces whilst maintaining an open feel. The Cascade family consists of three styles–static, folding and expanding.
Feature and benefits:
- Floor-to-ceiling privacy
- Design/customisation flexibility
- Non-permanent fixture
- Flexible fixing methods
- Subtle acoustic solution
- Carbon neutral
- Made locally
General information
Color | Beige Black Blue Cream Gold Manufacturer guidance16 options available. |
Material | Polyester Guidance for specification option: Polyester fibre (PET). |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Uniclass | |
CAWS | K13/170 Acoustic panel lining M52/110 Wallcoverings |
Specification data - Sound attenuator infill units
Form | Panel. |
Rigidity | Semi rigid. |
Application | Free hanging. |
Material | Polyester fibre. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | 0.45 NRC.Guidance for specification option: Minimum noise reduction coefficient. |
VOC emissions | 0.009 mg/m³.Guidance for specification option: 7 days. |
Dimensions | |
Size (length x width) | 1200 x 2400 mm. |
Thickness (overall) | 12 mm. |
Profile | Geometric profile. |
Colour | Acros.Guidance for specification option: Light reflectance value: 42. Bosco.Guidance for specification option: Light reflectance value: 29. Empire.Guidance for specification option: Light reflectance value: 6. Falling water.Guidance for specification option: Light reflectance value: Flatiron.Guidance for specification option: Light reflectance value: 25. Galaxy.Guidance for specification option: Light reflectance value: 16. Ironbank.Guidance for specification option: Light reflectance value: 13. Lotus.Guidance for specification option: Light reflectance value: 16. Opera.Guidance for specification option: Light reflectance value: 49. Pavilion.Guidance for specification option: Light reflectance value: 78. Petronas.Guidance for specification option: Light reflectance value: 2. Pinnacle.Guidance for specification option: Light reflectance value: 8. Rosada.Guidance for specification option: Light reflectance value: 45. Savoye.Guidance for specification option: Light reflectance value: 47. Senado.Guidance for specification option: Light reflectance value: 45. Tree house.Guidance for specification option: Light reflectance value: 3. Zenith.Guidance for specification option: Light reflectance value: 22. |
Moisture Absorption (ASTM D570) | 0.4%. Guidance for specification option: By weight (ASTM C1104: 49°C at 95%RH, 4 days). |
Weight | 2400 g/m². |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polyester Guidance for specification option: Polyester fibre (PET). |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.89 kg CO₂ eq/kg Self declared |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Post-consumer recycled PET material. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Green Tag
Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, and Vicinity™
Green Tag
Global Green Tag - Cascade™, Composition®, Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®
HPDC Certification
Health Product Declaration - Cube™, Cascade®, Frontier®, Horizon™, Grid Ceiling Tiles, Cove™/Loch™, Lattice™, and Vicinity™
Literature
Cascade Datasheet
Cascade Install Instructions
Cascade Lookbook
Cascade Manufacturers Guarantee
Colour Guide
