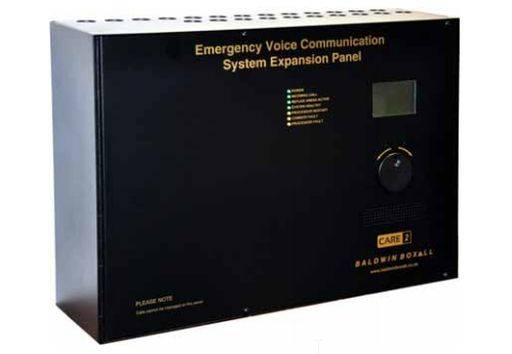

CARE2 Network Expansion Panel
Verified by manufacturer 4 months ago
Powder coated black
Powder coated black
Network Expansion Panel (NEP) for the CARE2 EVC system. The object includes finish details and main product features.
Application
Suitable for surface or flush mounting.
Description
Network Expansion Panel for the CARE2 EVC system. The panel is fitted with 4-way line card (expandable up to 16-way). Connect to the Control Panel for system expansion.
Outstations are radial wired from the control and NEP panels using enhanced 2-core fire rated cable. Control panels and NEP panels on the system are cabled in a loop configuration using 2x2 core enhanced fire rated cable - maximum length of loop 5km.
Features and benefits:
- The rugged red handset (with hearing aid compatible earpiece) is housed behind a lockable door.
- System configuration is stored on an SD card.
- Batteries required for system backup are housed within the panel enclosure.
- Fully BS 5839-9 compliant.
General information
Color | Black |
Finish | Powder-coated |
Material | Metal |
Warranty description | Seven year |
Uniclass | |
CAWS | W90/120 Fire detection and alarm system |
Specification data - Fire alarm panels
Standard | To BS5839-9. |
Enclosure | |
Material | Steel. |
Finish | Powder-coated. |
Colour | Black. |
Mounting | Surface.Flush. |
Battery back-up | Required. Guidance for specification option: Batteries required for system backup are housed within the panel enclosure. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Metal |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | IFC2X3 | 1 |
