Carbon Steel Economy Heavy Duty Bollards

Verified by manufacturer 27 days ago

BX14 6501B1-RT - Flat top

Broxap Street Furniture Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Heavy duty economy bollard.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for pedestrian guidance, demarcation, traffic calming, parking prevention or building protection in a range of settings, including industrial estates, shopping centres, service yards or car parks.

Broxap Street Furniture offers the widest range of bollards available on the UK street furniture market, holding many products in stock for express delivery. Our bollards come in a variety of styles and finishes with features including customisation, lighting, reflective banding and decorative highlighting available on request. Our security bollards are manufactured on site at our Midlands factory, where we specialise in architectural metalwork and joinery as well as other forms of industrial fabrication.

Our classic cast iron bollards can be found in towns and cities across the UK, proudly protecting people and places. With fantastic resistance and strength they are a practical choice particularly for heritage areas. Our cast iron bollard range features an extensive selection of shapes and styles. Steel bollards are highly effective security bollards, controlling vehicle access and pedestrian approaches. Our hot dip galvanising process ensures an extremely long product life. Stainless Steel bollards present an attractive finish and are popular at retail and employment parks. For ultimate versatility, we also offer one of the largest ranges of polyurethane bollards. With high resistance and low maintenance properties, a polyurethane bollard offers a value alternative street bollard solution. Sustainable bollard options from Broxap Street Furniture also include timber bollards, recycled plastic bollards and concrete and granite bollards.

While playing an important role in security as well as guiding people and vehicles, bollards can add to the aesthetics of an area. At Broxap Street Furniture our quality promise considers the function and performance of our bollards as well as their ability to enhance and complement any surrounding. Our Street Furniture Suites highlight product collections which include matching bollards while our vast range of colours, shapes, materials and styles make a bollard a feature of any development scheme.

Many of our bollards are designed and manufactured with a particular purpose in mind such as our removable bollards and illuminated bollards. Car park bollards can help to mark out vehicle and pedestrian areas while ductile iron versions of some security bollards are available.

Description

Heavy duty economy security bollard.


Features and benefits:

  • Flat or sloped top.
  • 1000 mm high x 140mm (3 mm gauge)/168 mm (5 mm gauge)/194 mm (5 mm gauge) diameter.
  • 300 mm root.
  • Root fixed (as standard)
  • Base plated (Optional)
  • Removable (Optional)

General information

Color

Finish

Galvanized

Powder-coated

Material

Carbon steel

Width

140 mm

168 mm

194 mm

Height

1300 mm

Warranty description

One year

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Carbon steel bollards

Dimensions

-

Size and profile

⌀140 mm.

Height

1300 mm.

Manufacturer guidance

Overall height.

Length below ground

Not required.

Guidance for specification option:

Base plate.

300 mm.

Guidance for specification option:

Standard root.

Post top

Flat.

Post base

Base plate.

Standard root.

Removable socket.

Finishes

-

Applied finish

Galvanized.

Galvanized and polyester powder coated.

Colour

Galvanized.

RAL 9006 White Aluminium.

RAL 7016 Anthracite Grey.

To BS 4800, 10 A 07 Nimbus Grey.

RAL 3020 Traffic Red.

RAL 9005 Jet Black.

To BS 4800, 14 C 39 Holly Green.

RAl 1023, Traffic Yellow.

To BS 4800 00 A 05, Goose Grey.

RAL 5015 Mild Blue.

RAL 5013 Dark Blue.

RAL 9016 Traffic White.

Accessories

Not required.

Steel inserts for additional strength.

Reflective banding.

Custom crests and logos.

Gauge

5 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

Literature

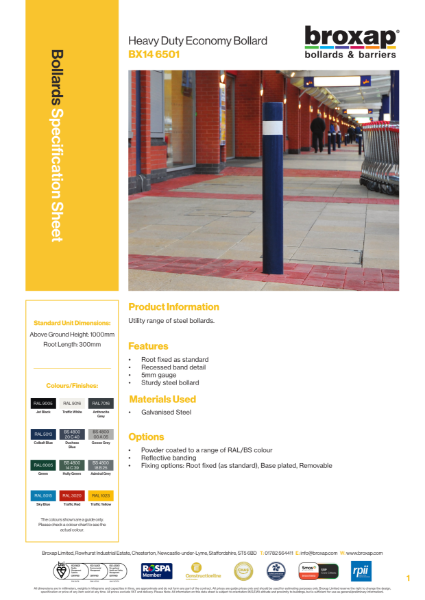

Economy Heavy Duty Bollards Specification Sheets

Economy Heavy Duty Bollards Specification Sheets
