Capatect Ecomin Render - External Wall Insulation System
Verified by manufacturer 3 days ago
A high performance mineral wool external wall insulation solution.
Application
EWI systems.
Description
An external wall insulation system featuring a ready-to-use, structural silicone resin finishing coat to DIN EN 15824.
A high performance mineral wool external wall insulation solution offering top tier thermal, acoustic, and fire resistance. Perfect for any project, from high rise to low rise buildings, new builds, or refurbishments with endless design possibilities to suit every style.
Features and benefits:
- Non combustible mineral wool insulation.
- Ideal for high rise and low rise projects.
- Superior thermal and acoustic performance.
- Excellent fire resistance (A2-s1, d0).
- Eco friendly and sustainable materials – Supports low carbon construction.
- Wide variety of design options.

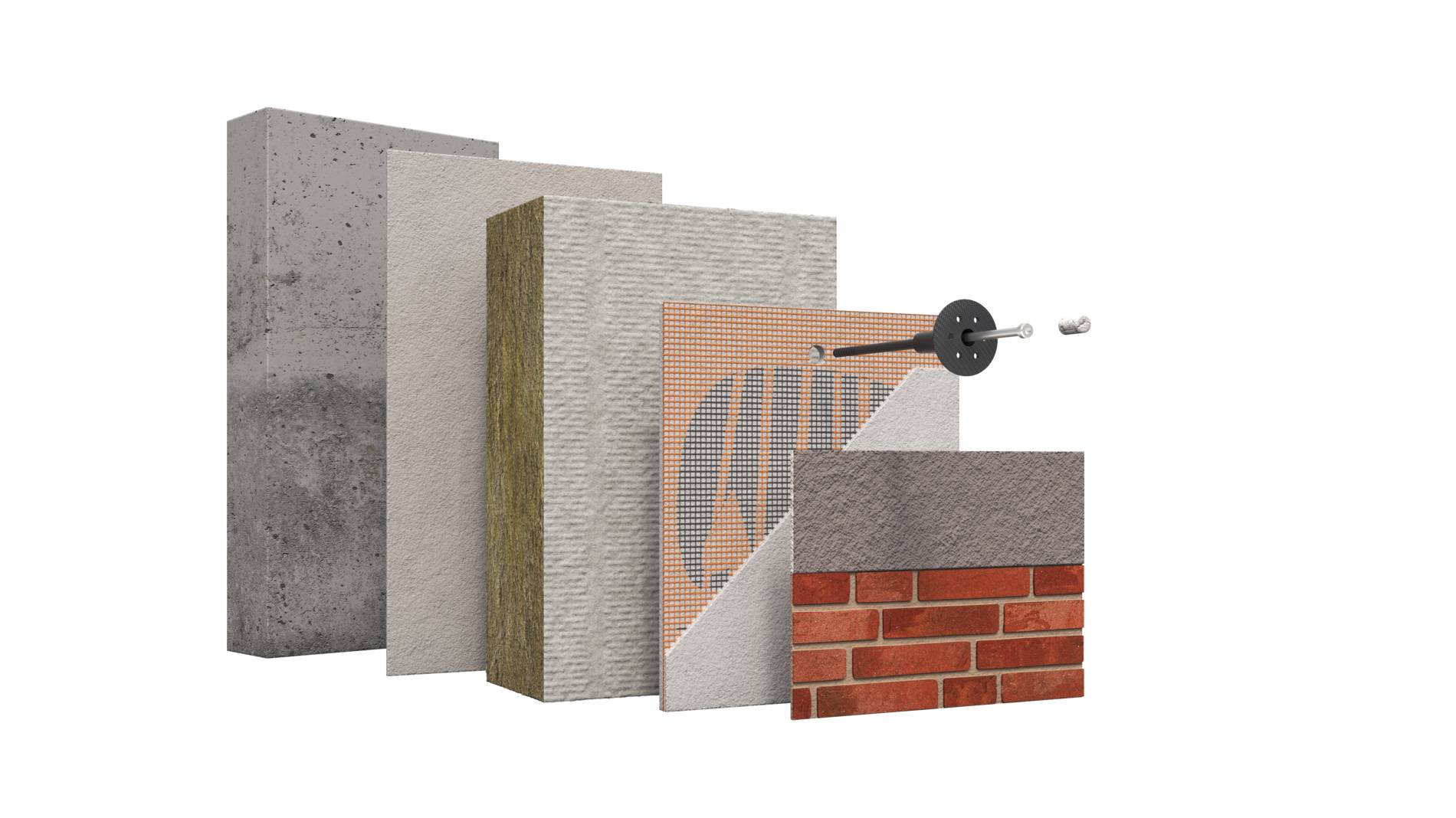

The system consists of the following:
- Sub primer: Putzgrund 610.
- Adhesive: Mortar 170 or 186M.
- Insulation: Mineral wool variable thickness.
- Base coat: Mortar 170 or 186M.
- Mesh: Gewebe 650 or 666.
- Top primer: Putzgrund 610.
- Finish: Amphisilan K15.
General information
Color | White |
Finish | Matt |
Material | Silicone |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M21/210 Rendered external wall insulation systems M21/20 External wall insulation systems |
Specification data - External wall insulation systems
Classification data | |
Preparation | Sub and top primer: Putzgrund 610. Guidance for specification option: A white special primer with good adhesion and coverage as adhesion-promoting primer for subsequent synthetic resin, silicone resin, silicate and mineral renders as well as coloured stone render coatings in the Capatect facade system. |
Insulation | |
Material | Mineral wool slab insulation. Guidance for specification option: Available in a variety of thicknesses, consult manufacturer for details and insert requirements. |
Adhesive | Mortar 186M. Guidance for specification option: A light grey mineral ready-mixed dry mortar for use as adhesive and base coat for insulation boards, optimized for machine application. |
Render carrier or reinforcement | |
Material | Gewebe 650. Guidance for specification option: An orange coloured specially equipped, slippage-resistant glass fibre mesh in the Capatect façade systems. Size: 50 x 1.1 m. |
Mesh size | Mesh size approximately 4 x 4 mm. |
Render | |
Application | Base coat and finish coat. |
Material | Base Coat: Mortar 186M. Finish: Capatect AmphiSilan - Fassadenputz K15. Guidance for specification option: Base Coat: Mortar 186M A light grey mineral ready-mixed dry mortar for use as adhesive and base coat for insulation boards, optimized for machine application. Finish: Capatect AmphiSilan - Fassadenputz K15: A matt, ready-to-use, structural silicone resin finishing coat to DIN EN 15824. Colour: White. Can be tinted by manufacturer. Suitable for machine tinting with dosing systems from ColorExpress. Further custom colors with lightness value >20 on request. If, for design reasons, colors with lightness value <20 are required, these can be achieved in some cases with a double coat of Muresko CoolProtect paint. Small quantities can be tinted with CaparolColor or AmphibolinColor colourants with maximum 2 % to avoid low consistency. |
Decorative finish | K15, scratched texture 1.5 mm. Manufacturer guidanceFinish: Capatect AmphiSilan - Fassadenputz K15. |
Colour | White. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Silicone |
Recyclability | recyclable packaging |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
Literature
Capatect AmphiSilan - Fassadenputz K15
PutzGrund 610
Capatect Gewebe 650 TI_650_CT_EN
Capatect Klebe - und Armierungsmasse 170
Capatect Klebe - und Armierungsmasse 186
Capatect Gewebe 666 TI_666_CT_EN
