Cantilever Cycle Shelter
Description

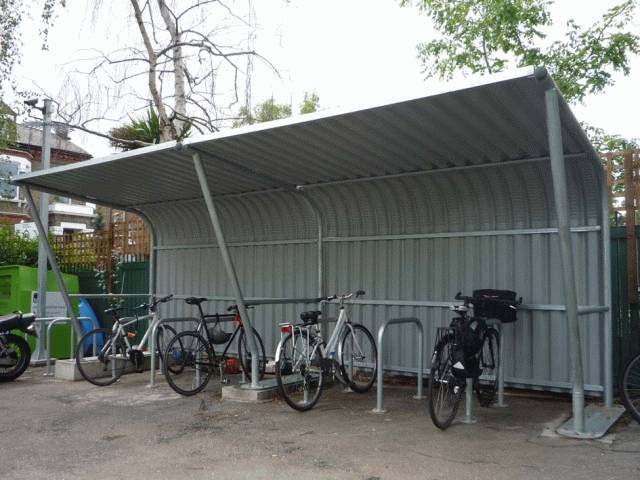

The Cantilever Cycle Shelter is an extremely robust and classically designed, free-standing, single sided cycle shelter designed for on-site assembly, constructed from galvanized steel tube with a galvanized or plastisol colour coated sheet roof. The VELOPA Cantilever Cycle Shelter is a popular design that exemplifi es the AUTOPA approach to cycle parking, the shelter is designed and fabricated to look good for years.

Features:

  • Free standing.
  • Single sided.
  • Frame is manufactured from galvanized carbon steel tube.
  • Roof options include galvanized or galvanized and colour coated.
  • Uprights of steel tube: Diameter 76 mm, 3.2 mm thick.
  • Roof purlins, supports and connections of heavy duty steel.
  • Four Sheffield cycle stands can fit per bay or one type ‘B’ rack or eight bicycles.
  • Extension bays available to accommodate larger quantities of bicycles.
  • Side cladding and doors available extra.
  • All racks are sold separately.
  • Shipped in sections for easy assembly on site.
  • Also available ragged for casting in.
  • Painted frames also available.

General information

Features

Free standing

Single sided

Frame is manufactured from galvanized carbon steel tube

Roof options include galvanized or galvanized and colour coated

Uprights of steel tube: Diameter 76 mm, 3.2 mm thick

Show more

Size

Length: 3168 mm

Depth: 2260 mm

Height above ground: 2220 mm

Uniclass 2015

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/340 Cycle shelter

Specification data - Semi-closed shelters

Product Reference

Cantilever Shelter

Colour/ Finish

Main Bay, Galvanized Roof: 138200510

Main Bay, Plastisol Roof: 138200500

Fixing

Flanged

Extension bay

Not required

Extension Bay, Galvanized Roof: 138200512

Extension Bay, Plastisol Roof: 138200505

Accessories

None

Doors

Side cladding

Standard product features

Size:

  • Length: 3168 mm.
  • Depth: 2260 mm.
  • Height above ground: 2220 mm.

Weight:

  • Main bay: 232.0 kg.
  • Extension bay: 165.0 kg.

Product Options

Colour/ Finish:

Galvanized finish as standard. Most RAL and BS colours are available as painted finishes – contact manufacturer for further details. Polyester coloured coatings are available by special order.
