Callisto Granite Paving
Verified by manufacturer 2 months ago
Polished
Polished
Sawn granite paving from China; a silver stone with grey flecks.
Application
Available as paving, setts, tactile paving, bespoke masonry and street furniture – consult manufacturer for details.
Colour variations and markings are characteristic of natural stone.
Suitable for vehicular trafficked and pedestrian areas. Suitable for use as entirely on its own or mixed with other colours from the manufacturer's range.
Description
Sawn granite paving from China; a silver stone with grey flecks.
Features and benefits:
- Hard-wearing.
- Attractive appearance.
- Available in three finishes.
- Has non-slip / skid properties.
- Can be used as a standalone product, or mixed with other colours/ products from the manufacturer's range.
- UKCA marked, and manufactured in accordance with BS EN 1341:2012.
General information
Color | Silver Manufacturer guidanceIncludes silver stone with grey flecks. |
Finish | Flamed Polished Fine Guidance for specification option: Fine picked. |
Material | Granite |
Shape | Rectangle Square |
Length | 200 mm 300 mm 450 mm 600 mm 900 mm |
Width | 100 mm 150 mm 200 mm 450 mm 600 mm |
Height | 60 mm 63 mm 70 mm Bespoke |
Uniclass | |
CAWS | Q25/26 Natural stone slab paving systems Q25/310 Natural stone slabs |
Specification data - Natural stone paving slabs
Standard | To BS EN 1341:2012. |
Stone denomination | |
Petrological family | Granite. |
Colour | Grey to pale grey with very fine pink and white hues. |
Origin | China.Guidance for specification option: Fujian Province. |
Physical properties | |
Profile | |
Slab type | Regular plan form. |
Dimensions and associated tolerances | |
Nominal sizes | 200 x 100 x 60 mm.200 x 100 x 63 mm.200 x 100 x 70 mm.300 x 100 x 60 mm.300 x 100 x 63 mm.300 x 100 x 70 mm.300 x 150 x 60 mm.300 x 150 x 63 mm.300 x 150 x 70 mm.300 x 200 x 60 mm.300 x 200 x 63 mm.450 x 450 x 60 mm.450 x 450 x 63 mm.450 x 450 x 70 mm.600 x 600 x 60 mm.600 x 600 x 63 mm.600 x 600 x 70 mm.900 x 450 x 60 mm.900 x 450 x 63 mm.900 x 450 x 70 mm.900 x 600 x 60 mm.900 x 600 x 63 mm.900 x 600 x 70 mm. |
Tolerances on plan dimension and thickness (nominal) | Paving Class 1 tolerances to all dimensions as standard. Setts Class 2 tolerances to all dimensions as standard. Kerbs Class 2 tolerances to all dimensions as standard. Others by agreement. |
Finish | Polished. |
Performance requirements | |
Slip resistance | To BS 14231, 72 (dry); 43 (wet). |
Breaking load | To EN 12372, 12.62 MPa.Guidance for specification option: Lev = 11.76 MPa. |
Water absorption (maximum) | To EN 13755, 0.35%.Guidance for specification option: Hev = 0.4%. |
Abrasion resistance | To EN 1341, 16.5 mm. Guidance for specification option: Hev = 17 mm. |
Durability | To EN 12371, 10.5/11.5 MPa. Manufacturer guidanceFreeze-thaw. |
Material density | To EN 1936, 2609 kg/m³. |
Porosity | To EN 1936, 1.07%. Manufacturer guidanceOpen porosity. |
CompressiveStrength | To EN 1926, 105 MPa. Guidance for specification option: Lev = 97 MPa. |
Light reflectance | 37.62. |
Surface roughness | 16 Rz-μm. |
Sustainability data
Country of material origin | China |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg·CO₂e/kg Self declared Guidance for specification option: (134.4 kg CO2 m² for 70 mm thick). |
Literature

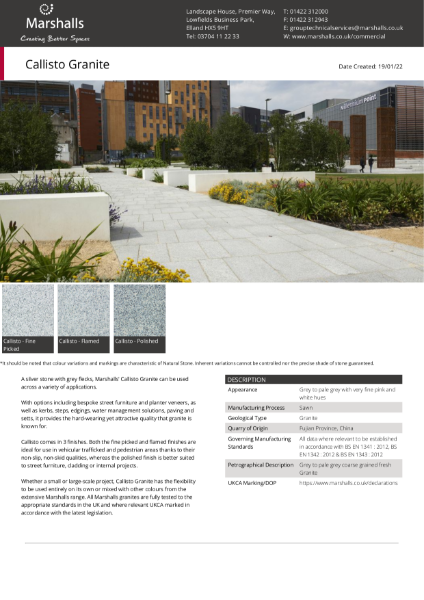

Callisto Granite Paving
