CAB-R 3D Pivot Door Hinge

Application

Suitable for timber doors into timber and aluminium frame applications and door leaf thickness of 35–45 mm.

Description

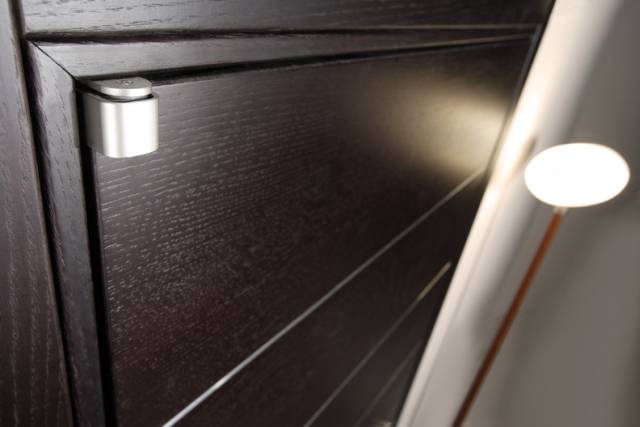

CAB-R 3D pivot door hinges are designed to easily fit into the extreme top and bottom corners of the door set.

Manufactured from steel and Zamak, the top and bottom pivots have self-lubricating bushes to offer unobstructed maintenance and free movement of the door leaf. The innovative design simplifies the installation process.

The hinges have passed the 200 000 cycle test with an 80 kg door. Suggested maximum load per pair of hinges is 80 kg.


Features and benefits:

  • Adjustable pivot hinge.
  • Designed to easily fit into the extreme top and bottom corners of the door set. Offering full 180 degree opening of the door, whilst maintaining aesthetics.

General information

Finish

Metallic

Material

Steel

WarrantyDescription

Consult manufacturer.

-

Uniclass 2015

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/385 Pivot hinges

Specification data - Cranked hinges Enhanced data

Material and finish

Steel/ zamak.

 Various finishes contact manufacturer.

Product Reference

CAB-R 3D Pivot Door Hinge

Environmental information

Country of material origin

Italy
