C95 Compact Insulated Steel Roller Shutter Armourguard C95 - Roller Shutter

Verified by manufacturer 6 days ago

HAG Ltd. - The Door Specialists Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

1.10 W/m²K Thermal value (through centre of lath). A Compact industrial roller shutter delivers high levels of security and thermal protection.

Jump to:
BOS
0800 072 3444 Website

Application

Insulated roller shutter suitable for industrial, commercial, public buildings and cultural or historical settings

  • Airports
  • Train stations
  • Retail units
  • Shopping malls
  • Offices
  • Leisure complex
  • Warehouse
  • Factories
  • Chemical plant
  • Hospitals
  • Universities
  • Hotels
  • Museums
  • Historical sites


Description

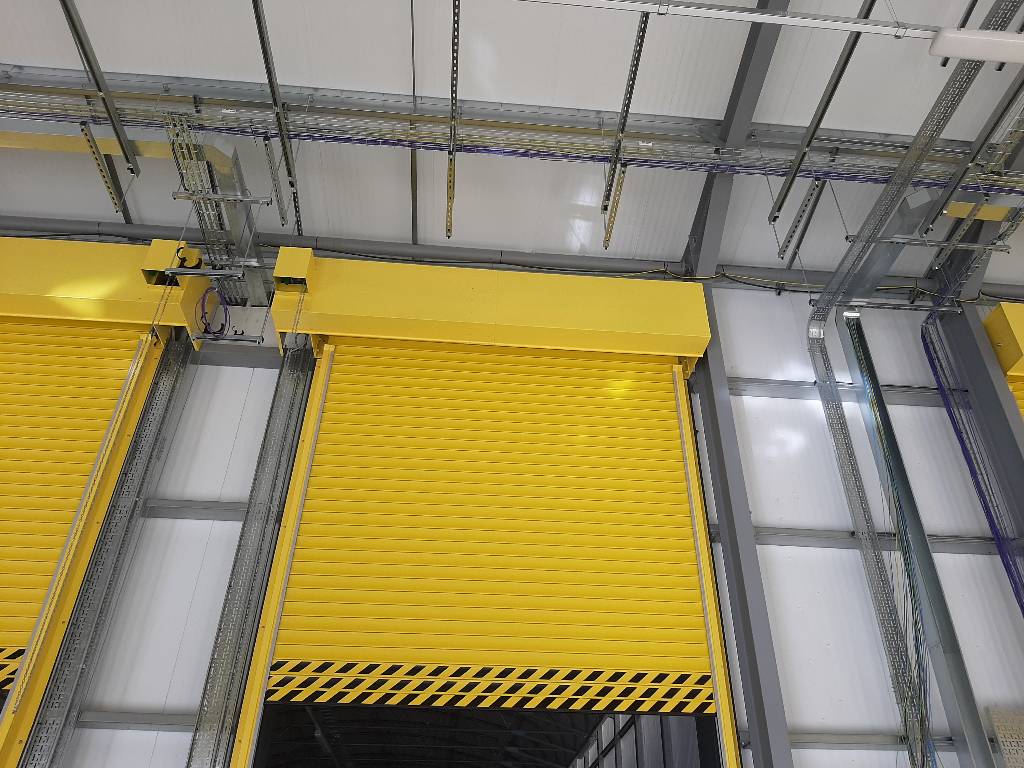

The Armourguard C95 is an industrial insulated roller shutter door constructed from a twin skin steel lath injected with CFC free foam insulation.


These insulated industrial doors are manufactured from two skins of a solid 95 mm curved galvanized steel section. The 95 insulated door uses a nylon end locking system and a weather proof profile that is incorporated on to the bottom section to create a seal that increases its reliability and performance. A brush strip can be used at high level to reduce air flow between the lintel and the roller shutter head plate. Glazed panels can also be incorporated into the roller shutter lath.


Features and benefits:

  • Vertical rolling operation.
  • High levels of security and thermal protection.
  • Recommended maximum width up to 7000 mm.

General information

Color

Beige

Black

Blue

Brown

Copper

Show more

Finish

Galvanized

Material

Steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Standard

To BS EN 13241-1:2003.

Opening sizes

-

Manufacturer guidance

Recommended maximum width up to 7000 mm. Insert requirements.

Format

Thermally insulated.

Arrangement

Vertical, face-fitted across opening.

Performance

-

Resistance to wind load

To BS EN 13241-1:2003, Class 5.

Acoustic performance

Acoustic value of 22 dB reduction (at 1 kHz).

Thermal resistance

3.3 W/m²K.

Guidance for specification option:

Thermal value through centre of lath on fully assembled curtain.

Shutter curtain

-

Lath material

Galvanized steel with foam insulation.

Guidance for specification option:

  • Twin skin steel lath injected with CFC-free foam insulation.
  • Glazed panels can also be incorporated into the roller shutter lath; consult manufacturer for details.

Profile

Curved.

Finish and colour

Galvanized.

Guidance for specification option:

Standard.

Polyester powder-coated, colour.

Guidance for specification option:

Insert requirements.

Frame and guides

-

Material

Steel.

Guidance for specification option:

  • Standard guide rails are 90 x 32 x 3 mm galvanized steel.
  • Double sided brush seal and carriers are used on the guide section to minimize air leakage.

Finish

Galvanized.

Guidance for specification option:

Standard.

Polyester powder-coated, colour.

Guidance for specification option:

Insert requirements.

As shutter curtain.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Operation

-

Mode

Electrical, three phase, with manual hand chain override.

Electrical, three phase, with high level hand crank override.

Control

Push button.

Guidance for specification option:

Other controls are available on request.

Accessories

Not required.

High level brush strip at lintel/ roller shutter head plate.

Glazed panels.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Recyclability

30

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

15 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ADSA

ADSA Membership

Alcumus SafeContractor

Alcumus Safe Contractor Certificate of Accreditation

Made in Britain

Builders Profile Membership

CHAS

CHAS Certificate of Accreditation

Constructionline

Construction Line Gold Membership

dhf certificate

DHF Full Member

Made in Britain

Environment Agency Waste Management Certificate

ISO 9001 Quality Management

ISO 9001

Alcumus SafeContractor

SAFE PQQ Alcumus Safe Contractor
