C Channel Profile
Application

  • Aerospace/ military areas.
  • Building/ construction areas.
  • Chemical processing plants.
  • Electrical areas.
  • Food processing.
  • Infrastructure.
  • Mining industry.
  • Oil and gas industry.
  • Automotive industry.
  • Cellular communications.
  • Cooling towers.
  • EMI/ RFI testing areas.
  • Hotels/motels.
  • Marine.
  • Offshore oil.
  • Petrochemical.

Description

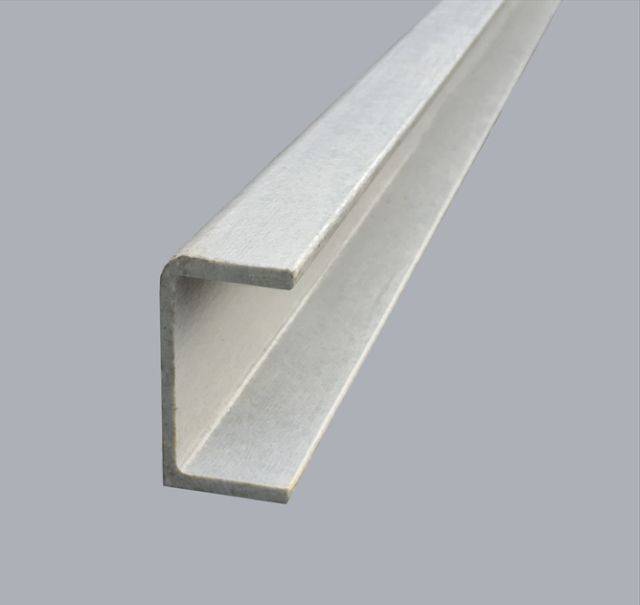

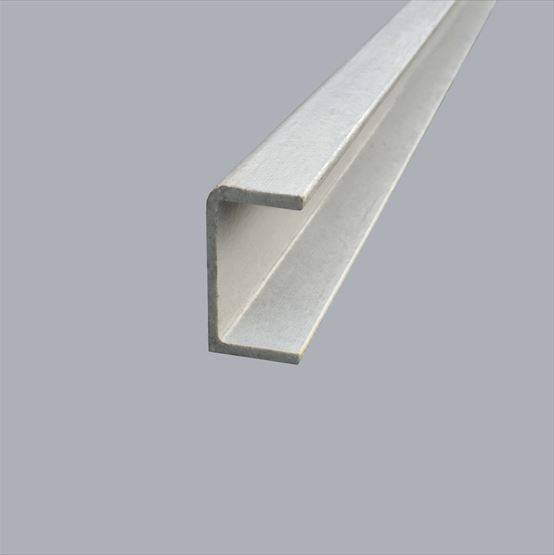

Structural pultruded fibreglass C channel profile available in multiple sizes. Suitable for beams and cable trays. Compliant with BS EN 13706 E23/E17 standards.

Features and benefits:

  • High strength.
  • Lightweight.
  • Corrosion resistant.
  • Dimensional stability.
  • Non-conductive and spark resistant.
  • Electro-magnetic transparency.
  • Low temperature capabilities.
  • Aesthetically pleasing.

Applications:

  • Aerospace/ military areas.
  • Building/ construction areas.
  • Chemical processing plants.
  • Electrical areas.
  • Food processing.
  • Infrastructure.
  • Mining industry.
  • Oil and gas industry.
  • Automotive industry.
  • Cellular communications.
  • Cooling towers.
  • EMI/ RFI testing areas.
  • Hotels/motels.
  • Marine.
  • Offshore oil.
  • Petrochemical.

General information

Color

Grey

Features

High strength, corrosion resistant, lightweight, rust and rot proof, non conductive

Material

Fibreglass

Size

50 x 30 x 6000 mm

Uniclass 2015

Pr_20_76_63_85 Structural plastics sectionsPrimary

CAWS

L30/45 Ramps/ Walkways

L30/460 Walkways

Q10/312 Footway gratings

Specification data - Structural plastics sections

Product Reference

GRP Pultruded Profiles: C Channel

Size (h x w x thickness)

50 x 30 x 3 mm

4.5 kg.

76 x 25.4 x 6.3 mm

7.5 kg.

76 x 38 x 5 mm

7.74 kg.

100 x 50 x 6 mm

12.18 kg.

150 x 50 x 6 mm

15.42 kg.

200 x 60 x 8 mm

28.08 kg.

200 x 60 x 9.5 mm

33.54 kg.

203 x 55 x 9.5 mm

36.84 kg.

280 x 70 x 12 mm

55.02 kg.

Colour

Grey

Special order

Insert BS or RAL colour requirement.

Standard product features

Length:

6000 mm.

Material:

Pultruded glass reinforced plastic (GRP).

Technical characteristics:

  • Chemical resistance: Constructed from Iso resin as standard. Different chemical resistance available.
  • Tolerance (including cut): ±3–4 mm.
  • Service temperature: -20 to +80°C.
  • Design life: Greater than 20 years.
  • Consult manufacturer's literature for test results.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
