Butyl Tape
Application

Used to seal dry wall track heads where they interface with construction soffits and floors.

Description

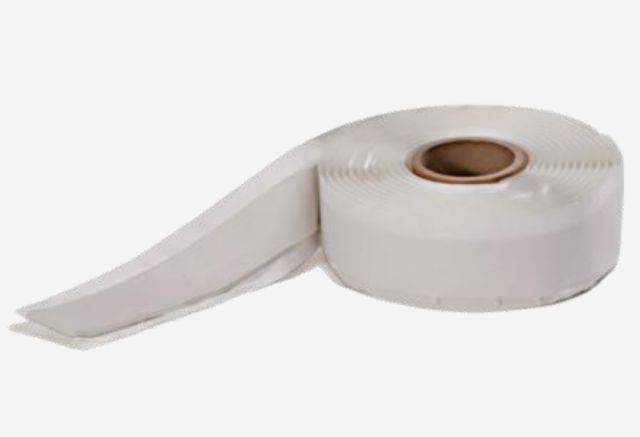

A pre-formed, high performance, intumescent polyisobutylene (PIB) based sealing tape used to form a fire and airtight seal.

Applications:

Used to seal dry wall track heads where they interface with construction soffits and floors.

General information

Material

Polyisobutylene (PIB) based

Uniclass 2015

Pr_35_90_87_07 Butyl rubber adhesive tapesPrimary

CAWS

K10/145 Wall lining system (metal studs)

K10/15 Lining on timber

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/175 Wall lining system (metal furrings)

K10/185 Wall lining system (adhesive)

K10/205 Lining on timber

K10/25 Lining on timber framed ceilings

K10/35 Wall lining on metal framing

K10/41 Wall lining on metal furrings

K10/45 Wall lining on adhesive

Specification data - Butyl rubber adhesive tapes

Product Reference

Butyl Tape

Standard product features

Material:

Polyisobutylene (PIB) based.

Thickness:

3 mm.

Roll size (w x l):

25 x 3600 mm.

Colour:

White.

Service temperature:

-40 to +90°C.

Joint movement:

Up to 15%.
