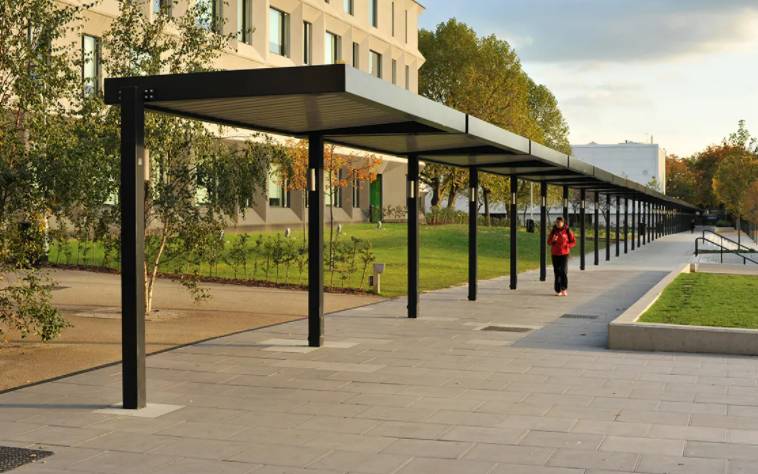

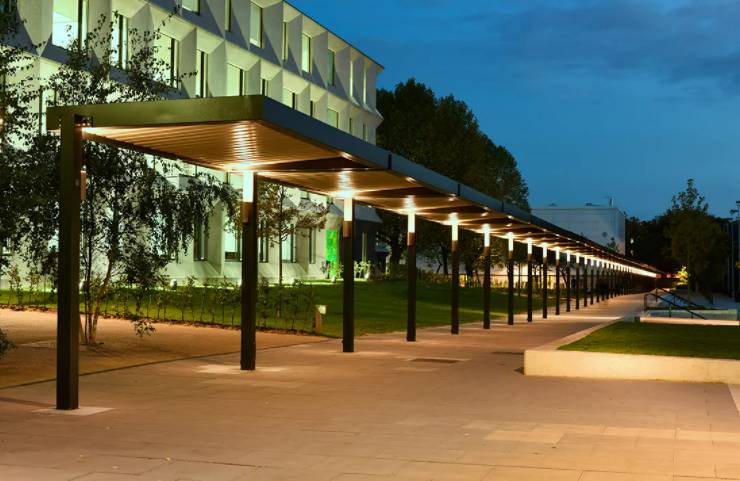

Burntwood Canopy - Modular open sided shelter

Verified by manufacturer 3 months ago

BXMW/BURNT

Broxap Street Furniture Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

A canopy of cantilever design for multiple uses.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Cycle shelter, trolley park, entrance canopy, walkway, PUDO canopy.


Broxap specialise in designing canopies and covered walkways that provide structurally sound and stylish solutions for every type of external requirement. Whether it's their standard or bespoke designs, all canopies work to complement our entire street furniture range.

Canopies and covered walkways are available in both traditional or contemporary styles, these which include glazed structures, polycarbonate canopies, timber structures, cast iron and fabric canopies. In addition, Broxap also have a number of roofing options, which include transparent polycarbonate, glass solutions or opaque architectural cladding.

The versatile canopy styles, materials and flexibility in design means that our canopies suit any application. Uses can include a playground canopycanopies, outdoor dining areas, and passenger waiting shelters, to name a few. Canopies are available as standard or bespoke designed to any requirements

Covered walkways provide a cost effective solution to create a link walkway. Suitable for many purposes from universities and hospitals to shopping arcades and schools. Covered walkways provide a link walkway between existing buildings, providing protection from the weather. Changes in height, direction and roof profile are all easily integrated into our walkway offering which is bolstered by our Design and Build service.

Bespoke Canopies And Walkways

As part of the bespoke Design and Build service, we offer a complete bespoke solution from the initial consultancy through to the installed and finished product. As part of our bespoke canopies and walkways service, they also offer optional extras such as the inclusion of guttering, side screens, solar lighting, a colour range, as well as other add-ins.

Description

A Contemporary modular Cycle Shelter, the Burntwood offers a stylish alternative to the PETg and Polycarbonate shelters.


Integral guttering offers built in rainwater management. While roof cladding constructed of pre-finished steel offers a robust design which also offers vandal resistant properties, while maintaining an appealing, eye catching finish.


Features and benefits:

  • Powder coating to a wide range of colours
  • LED or Solar Lighting
  • Full Installation Service
  • Varied range of Cycle Racks
  • Varied range of Cycle Stands
  • Robust modular construction
  • Welded end frames and pulin section made from heavy-duty box section assembled with anti-tamper high strength bolts
  • Anti-climb end frames
  • Submerged baseplates
  • Hot Dipped Galvanized to BS EN ISO 1461:2009
  • Trapezoidal Roof Cladding
  • BREEAM Compliant Configurations
  • Capacity: 4100 mm - ten cycles.

General information

Color

Finish

Galvanized

Primed

Powder-coated

Material

Steel

Polycarbonate

Length

4100 mm

5000 mm

Width

2200 mm

Height

2200 mm

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Burntwood Canopy

Dimensions

-

Plan size

4100 x 2200 mm

5000 x 2200 mm

Height

2200 mm.

Frame

-

Finish

Galvanized

Polyester Powder Coated

Zinc Rich Primer

Colour

Cobalt Blue RAL 5013

Goose Grey BS 4800 00-A-05

Holly Green BS 4800 14-C-39

Jet Black RAL 9005

Nimbus Grey BS 4800 10 A 07

Sky Blue RAL 5015

Traffic Red RAL 3020

Traffic White RAL 9016

Traffic Yellow RAL 1023

Anthracite Grey RAL 7016

Roof covering

16 mm Multiwall Clear.

16 mm Multiwall Opal.

16 mm Multiwall Amber.

Trapezoidal profile 1000/32.

Rainwater drainage

Channel Guttering.

Accessories

Surface baseplates.

Submerged Baseplates.

Sustainability data

Material

Steel

Polycarbonate

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

Literature

Burntwood Canopy Specification Sheet

Burntwood Canopy Specification Sheet

Case studies

Green Ridge Primary Academy, Aylesbury

Green Ridge Primary Academy, Aylesbury

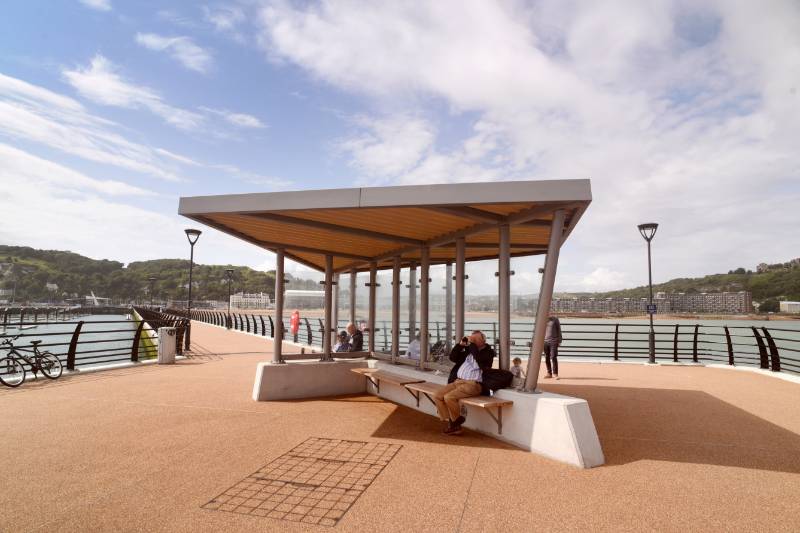

Marina Pier, Dover

Marina Pier, Dover

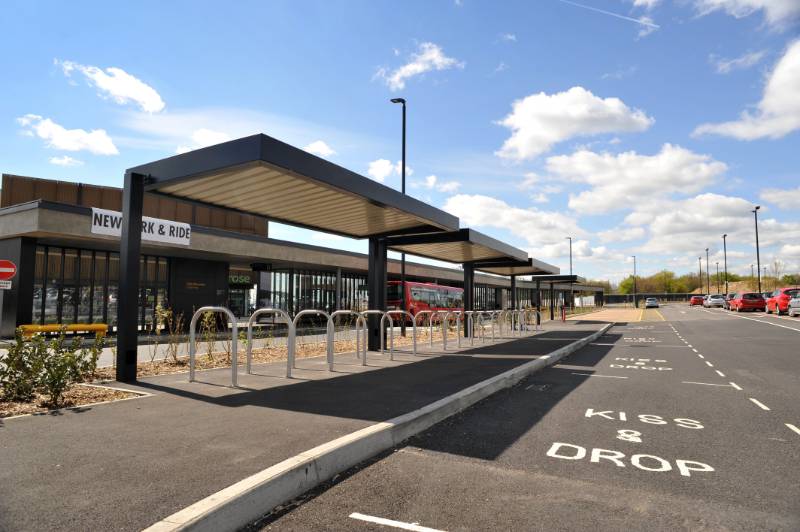

High Wycombe Park and Ride

High Wycombe Park and Ride
