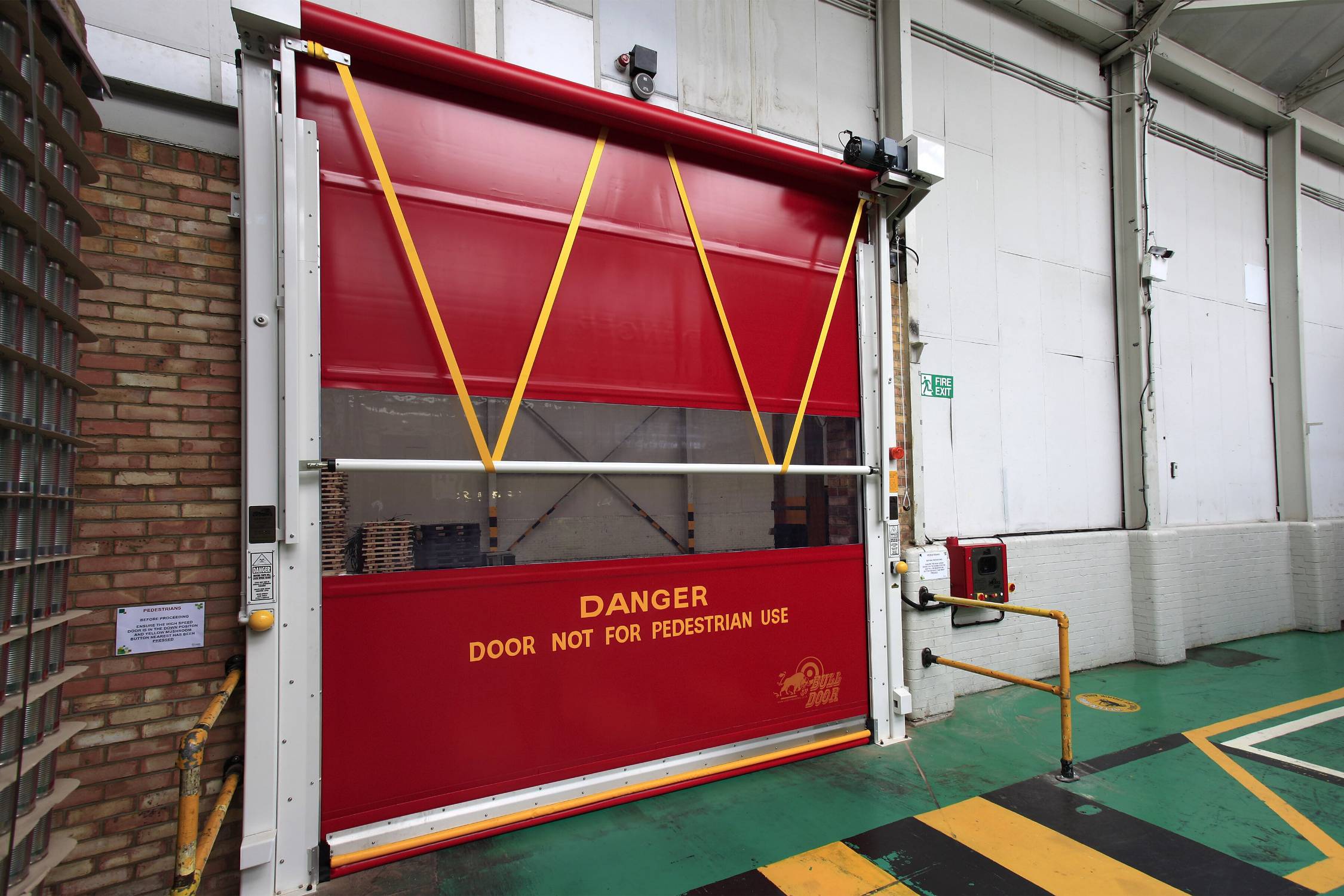

Bulldoor High Speed Roller Door

Application

  • Suitable for frequently-used doorways
  • Suitable for ambient and chilled environments.
  • Suitable for internal and external applications.
  • All Union Doors are designed and manufactured to order.
  • Contact Union Industries for bespoke requirements.

Description

Features and benefits:

  • For internal and external openings.
  • Standard Size Range – up to 4.5 m wide and 4.5 m high.
  • Crash-Out and Auto-Reset damage-protection feature.
  • Suitable for use by all traffic types.
  • Opening speed typically 1.6 m/s.
  • Can be mounted internally or externally.


Technical:

  • Door blade material ‘Ramskin’: 1.5mm thick single-ply PVC-coated polyester monofilament with anti-static additive.
  • Door blade colour: available as standard in yellow, blue and red.
  • Top roll: 168 x 5 mm CHS steel tube terminating at each end with 30 mm diameter EN24 stub shafts running in self aligning bearing units.
  • Columns and side guides: 5 mm wall, SHS steel columns with counterweight assisted opening, 155 mm deep pressed steel blade guides.
  • Back bar and top seal: a steel cross member bolted to the columns carries the top fixing brackets and provides a fixing for the top seal and brush strip damper.


General information

Color

Blade/Curtain colour.

Yellow

Red

Blue

Finish

Door frame.

Powder coating

Poly Powder Coating to any standard RAL number, or 304 Stainless Steel.

Material

Door frames - 5mm SHS steel columns with press steel guides. Door blade - 1.5mm PVC

Steel

PVC

Shape

Rectangle

Size

4500 mm (W) x 4500 mm (H) maximum clear opening. Contact Union Industries for bespoke requirements.

4500 x 4500 mm

WarrantyDescription

Lifetime warranty

12 month parts and labour inclusive warranty from date of door commissioning, plus free-entry into the Lifetime Warranty scheme (25 year warranty option).

Uniclass 2015

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High speed doors

Specification data - High-speed doorsets Enhanced data

Speed (minimum)

-

Opening

Variable up to 1.6m/sec (maximum).

Closing

Variable up to 0.7m/sec (maximum).

Arrangement

Bespoke. Contact manufacturer

Curtain material

‘Ramskin’ – 1.5mm thick single ply PVC coated polyester monofilament with anti-static additive.

Frame and guides

-

Material

5 mm wall, SHS steel columns with counterweight assisted opening, 155 mm deep pressed steel blade guides.

Finish and colour

Powder coating.

Operation

Induction loop.

Radar.

Pull switch.

Radio control.

Push button.

Photocell proximity sensors

PLC control.

Infrared

Accessories

Traffic lights.

Flashing beacons.

Audible warning devices.

Air-locks.

Interlocks.

Text/signage.

BMS outputs.

Safety barriers.

Impact protection.

Bollards.

Drive

1.5 kW foot-mounted brake geared motor unit.

Bottom bar

Steel cross member.

Seals

Side seals 100 mm inboard of the opening.

Safety

Double photo-electric cells.

Light curtains.

Manual break release.

Product Reference

Bulldoor High Speed Roller Door

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Steel frame and metal components widely recycled

-

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Literature

Bull door standard secification

Bull door standard secification

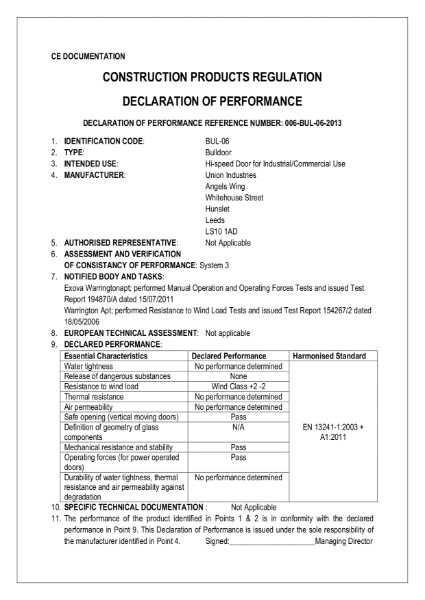

CE Declaration - Bulldoor
