BT2880-231WSA - Needle Valve Tap
Verified by manufacturer 3 months ago
Needle valve, bench mounted.
Application
Flow regulation of all laboratory gases, including special gases such as nitrogen, oxygen, helium and hydrogen. When ordered, valve may be specially cleaned, lubricated and packaged for pure gas service. Valve is certified for natural gas service by CSA International.
Description
Needle valve for flow regulation of all laboratory gases. Furnished with white powder-coated finish as standard. Also available in satin chrome plated finish with clear powder coating (SCC) and satin nickel plated finish with clear powder coating (SNC).
General information
Color | White Other |
Finish | Powder-coated Other |
Material | Brass Stainless steel |
Shape | Other |
Height | 145 mm |
Warranty description | One year |
Uniclass | |
CAWS | N10/130 Laboratory furniture |
Specification data - Laboratory gas taps
Mounting | Bench. |
Number of outlets | One. |
Nozzles | Removable. |
Operation | Handwheel. |
Colour coding | To BS EN 13792. |
Inlet connection | G1/2". |
Colour/ Finish | White powder-coated. Satin chrome plated (SCC). Satin nickel plated (SNC). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

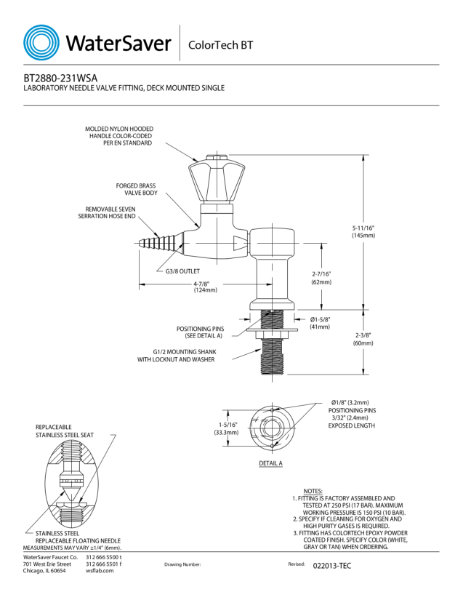

BT2880-231WSA Drawing
