BSO Outdoor Venetian Blinds - Blinds
Verified by manufacturer 3 days ago
Z70 Slat
Z70 Slat
QA Certificate
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Highly resistant effective thermal protection.
Application
For outdoor applications.
Description

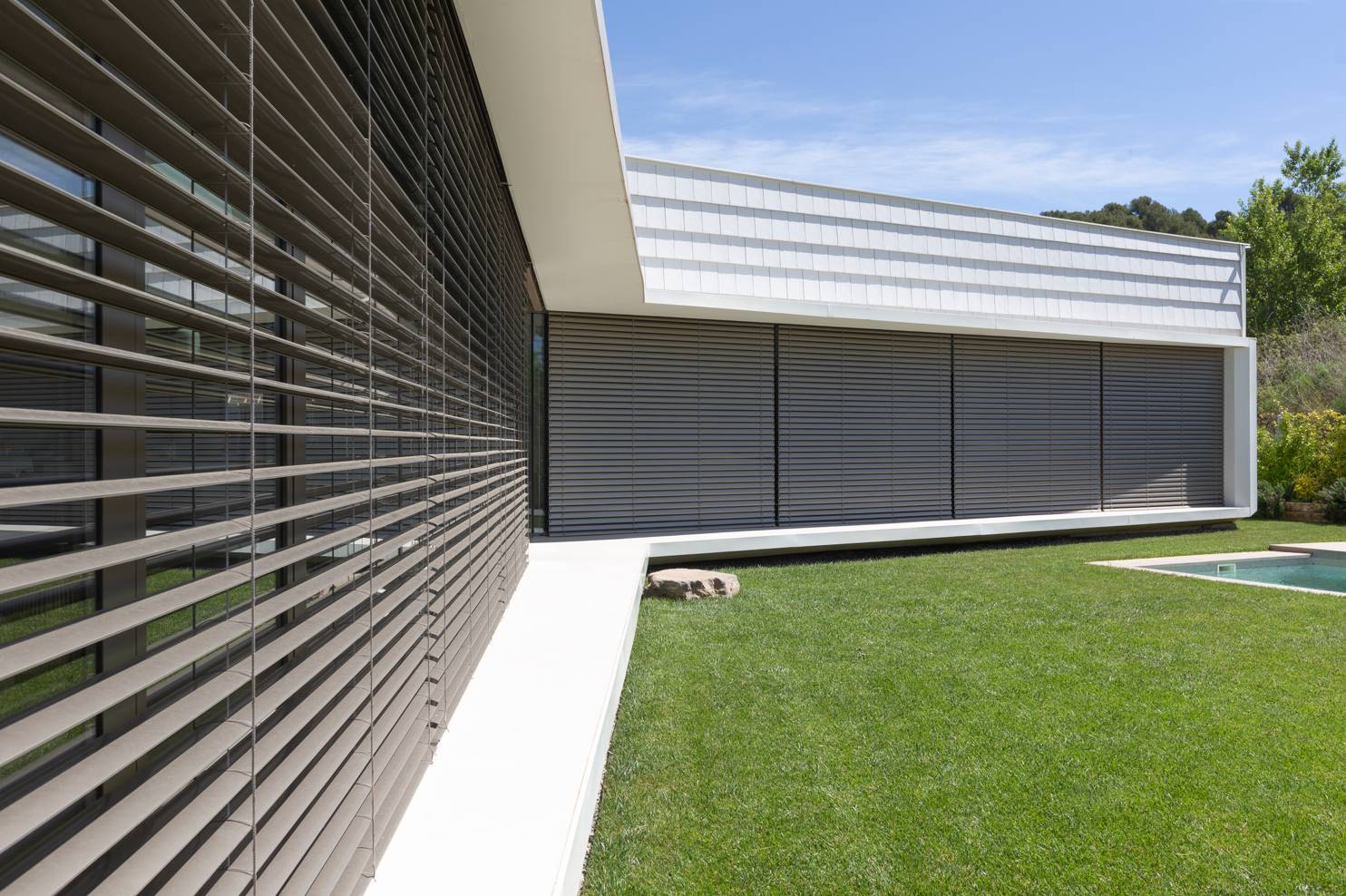

The outdoor aluminium Venetian blinds, known as Brise Soleil Orientable (BSO), afford highly effective protection from the heat and the sunlight. They afford precision sunlight management at any time of the day, thanks to their adjustable slats. Moreover, they fit into the façade of the building and reduce the effects of the heat, contributing to energy savings.
BSO blinds are made using rustproof materials that guarantee their maximum durability outdoors and their high resilience and safety in the face harsh weather conditions.
Features and benefits:
- Optimal light management.
- Energy saving.
- Highly durable and strong.
- Versatile and aesthetically pleasing.
- Seamless working conditions.
- Slats manufactured from thermo-coated anti-corrosive and resistant aluminium sheets.
- Highly resistant guiding track preventing noise and vibrations between parts.
- Provides the same colour for the slats, guides, terminal and hiding valance, ensuring integration into the design of the building.
- Texband® elevation band offers a 20-year warranty.
- Four year warranty.
General information
Color | Grey Black Blue Brown Silver |
Finish | Smooth Textured |
Material | Aluminium |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Four year 20 year Guidance for specification option: Texband® strap. |
Uniclass | |
CAWS | L10/59 Solar shading system L10/680 Solar shading system |
Specification data - External venetian blinds
Standards | To BS EN 13659. |
Position | Outdoor, ceiling mounted.Outdoor, wall mounted. |
Dimensions (minimum width x depth) | Manufacturer guidanceConsult manufacturer's literature and insert requirements. |
Slats | |
Width (maximum) | 70 mm.Guidance for specification option:
|
Material | Thermo-coated aluminium sheets. |
Finish | Thermo-coated aluminium. |
Colour | Antracita.Guidance for specification option: Smooth. Metallic Grey.Guidance for specification option: Smooth. Silver.Guidance for specification option: Smooth. Silver Texture.Guidance for specification option: Textured. Snow White.Guidance for specification option: Smooth. White.Guidance for specification option: Smooth. Manufacturer guidanceLadder colour: Black for anthracite slats; grey for the other slat colours. |
Headrail | |
Material | Steel.Guidance for specification option:
|
Colour | Galvanized. |
Operation | Hand crank.Guidance for specification option:
Motor, 230 V.Guidance for specification option:
|
Mechanism endurance | To BS EN 13561, class 3. |
Wind resistance | To BS EN 13659, class 6. |
Terminal | Z70 terminal. Guidance for specification option: Coordinated with slat colour. Manufacturer guidanceAluminium terminal adapted to the geometry of the slats. |
Valance | CL. CLp. CU. Side LT. Circular CC. Manufacturer guidance
|
Guides | "U"-shaped aluminium guide. Guidance for specification option:
Circular section self supporting guides. Guidance for specification option:
Rectangular section self supporting guides. Guidance for specification option:
|
Movement | Texband® strap. Guidance for specification option:
Manufacturer guidanceBlind lifting and lowering. |
Sustainability data
Material | Aluminium |
Recyclability | Yes, Aluminum and Stainless Steel Guidance for specification option: Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials. |
