BSEN 12825:2001 - Vinyl Edge Banded Panel
Description

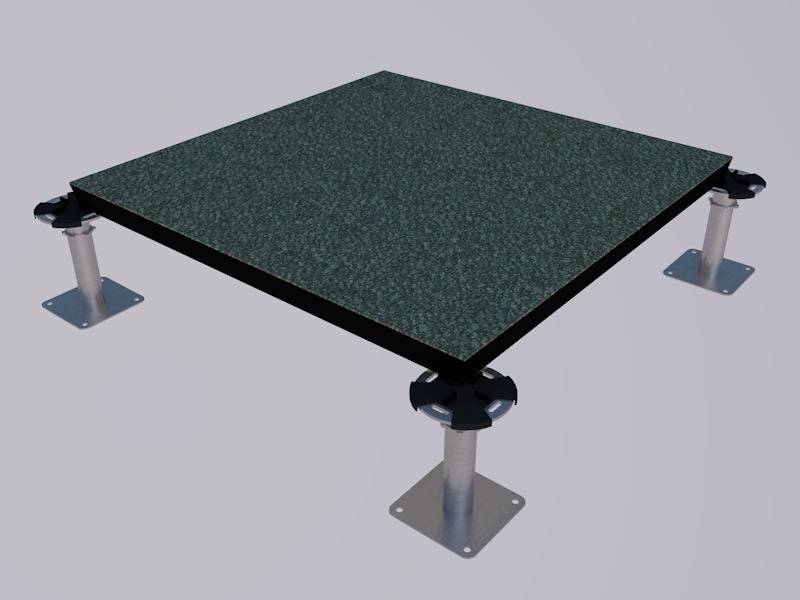

BE systems feature loose lay flooring panels that are fully tested to the requirements of the European Standard for raised access floors BS EN 12825.

BE loose lay panel systems are manufactured with a high performance particle board core.

Top and bottom surfaces are laminated with galvanised steel sheets before a surface finish is laminated to the top and trimmed to fit flush with the panel sides.

Panels are skilfully engineered with a full depth edge band to protect the surface finish.

The system provides full electrical continuity and static dispersion where required.
BE3V (8 kN ultimate loading) is ideal for general office use without heavy equipment.

BE5V (10 kN ultimate loading) and BE6V (12 kN ultimate loading) are both ideal for computer, comms and printer rooms.

BSEN 12825:2001 - Vinyl Edge Banded Panel:
- BSEN BE3V SD Vinyl Edge Banded Panel
- BSEN BE5V SD Vinyl Edge Banded Panel
- BSEN BE6V SD Vinyl Edge Banded Panel

General information

Features

FSC® certified, can be perforated for air flow, designed to be loose laid with complete electrical continuity, high resistance to damage

FSC® certified, extremely dimensionally accurate, designed to be loose laid with complete electrical continuity, high resistance to damage

Material

High density particle board core with steel top and bottom sheet and vinyl covering

Shape

Square

Size

600 x 600 x 33 mm

600 x 600 x 42 mm

Uniclass 2015

Pr_25_71_42_71 Raised access floor panels with finishPrimary
Specification data - Raised access floor panels with finish
Digital objects
Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
