Britannia Cast Iron Plain Half Round Gutter
Verified by manufacturer 27 days ago
100 mm
100 mm
A range of half-round gutters, manufactured from cast iron.
Application
Suitable for listed building, heritage and conservation projects.
Description
Britannia Cast Iron Plain Half Round gutters are available in various sizes and are supplied with a complete range of accessories such as angles, outlets, stop ends and various brackets. True radius gutters are also available on request.
Cast Iron gutters and rainwater pipes are the traditional choice for durable and aesthetically pleasing rainwater systems. It is still manufactured in the same shapes and sizes as 100 years ago, making it suitable for replacing existing cast iron products on heritage and listed building projects.
Features and benefits:
- Traditional sand cast iron, manufactured to BS 460:2002 with a life expectancy of over 100 years.
- Complies with all listed building, heritage and conservation requirements.
- Supplied transit primed or factory-applied wet paint finish in semi-gloss black as standard or to a specific RAL/BS colour on request.
General information
Color | Black Other |
Finish | Painted |
Material | Cast iron |
Shape | Other |
Length | 1830 mm |
Width | 100 mm 114 mm 125 mm 150 mm |
Height | 50 mm 55 mm 60 mm 65 mm |
Uniclass | |
CAWS | R10/12 Cast iron gutters R10/315 Cast iron gutters |
Specification data - Cast iron eaves gutters
Standard | To BS 460. |
Profile | Half-round. |
Size (nominal) | 100 mm. |
Joint type | Socketed. |
Finish | Mill.Powder coating. |
Colour | Manufacturer guidancePolyester powder-coating is available in RAL or BS standard colours. Consult manufacturer and insert requirements. |
Integral accessories | BI/HR40/A/90 - 90° Universal Angle.BI/HR40/A/120 - 120° Universal Angle.BI/HR40/A/135 - 135° Universal Angle.BI/HR40/RO/25 - Running Outlet (Ø2.5”).BI/HR40/RO/30 - Running Outlet (Ø3”).BI/HR40/DE/25/E - Dropend Outlet External (Ø2.5”).BI/HR40/DE/30E - Dropend Outlet External (Ø3”).BI/HR40/DE/25/I - Dropend Outlet Internal (Ø2.5”).BI/HR40/DE/30I - Dropend Outlet Internal (Ø3”).BI/HR40/SE/IN - Stopends Internal/External.BI/HR40/UC - Union Connector.BI/HR40/FB/CI - Fascia Bracket.BI/HR40/RB/TF - Top Fix Rafter Bracket.BI/HR40/RB/SF - Side Fix Rafter Bracket.BI/HR40/R&F/GS - Rise and Fall Bracket.BI/HR40/R&F/WS - Rise & Fall Bracket with Stay. |
Length | BI/HR40/6FT - 1830 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Cast iron |
Recyclability | Can be recycled at the end of its useful life |
Expected Life | 100 year |
Literature

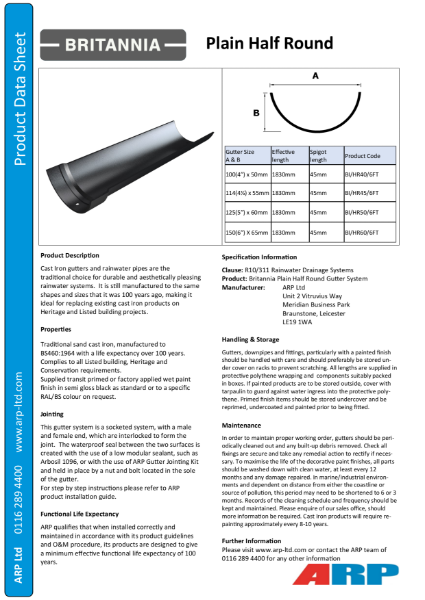

Britannia Plain Half Round Data Sheet
Technical Product Guide - Britannia
