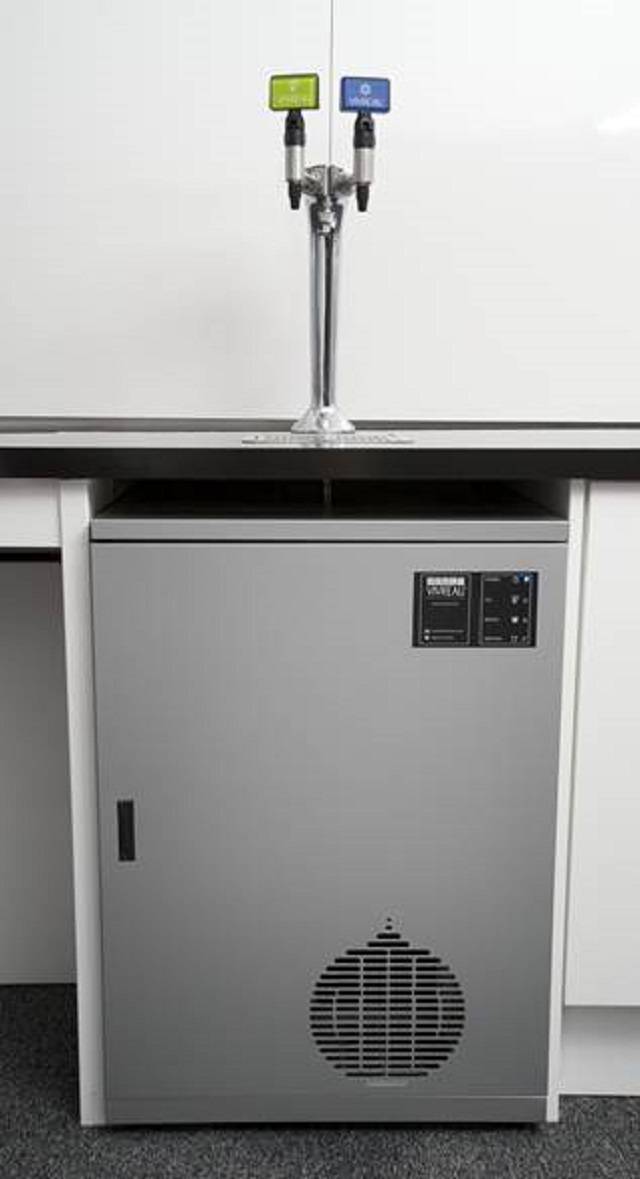

Brita Vivreau V3105 Bottler

Application

Suitable for use in the corporate, hospitality and catering environments, such as:

  • Large Offices
  • Corporate conference centres.
  • Hotels.
  • Restaurants.

Description

High performance water dispenser/ bottling system, providing water to meet individual requirements.


Features and benefits:

  • Available in five variations, which can provide chilled still and sparkling water.
  • Space-saving – helps to free up refrigerator space, and caters for individual installation and location needs.
  • Includes two designated dispense taps.
  • Provides high quality water from local sources.
  • Eliminates the need for costly and polluting transportation and packaging of bottles.
  • Equipped with ice-bank refrigeration, delivering unlimited chilled water at consistently low temperatures.
  • The dispense nozzles are removable to improve hygiene.
  • Includes a stainless steel drip tray with plumb to waste option.


Size (h x w x d):

  • Tap: 490 x 180 x 220 mm.
  • Cooler: 668 x 380 x 420 mm.
  • Cooler-carbonator: 440 x 360 x 360 mm.
  • Carbonator: 380 x 170 x 350 mm.
  • Cabinet: 850 x 595 x 590 mm.


Weight:

  • Tap: 2 kg.
  • Cooler: 50 kg.
  • Cooler-carbonator: 35.4 kg.
  • Carbonator: 13 kg.
  • Cabinet: 74.5 kg.


Technical characteristics:

  • Cooling capacity: Brita Vivreau Bottler 101–103: 180 L/h; Brita Vivreau Bottler 104–105: 80 L/h.
  • Dispensing height: Brita Vivreau Bottler 101–103: 325 mm; Brita Vivreau Bottler 104–105: 320 mm.
  • Maximum flow rate: Brita Vivreau Bottler 101–103: 3 L/minute; Brita Vivreau Bottler 104–105: 2 L/minute.
  • Maximum power consumption: Brita Vivreau Bottler 101–103: 690 W; Brita Vivreau Bottler 104–105: 565 W.

General information

Color

Silver

Finish

Chrome

Material

Brass

Size

490 x 180 x 220 mm

WarrantyDescription

Two year

Uniclass 2015

Pr_40_70_15_96 Water coolersPrimary

CAWS

N11/30 Sinks, taps, traps and wastes

N11/350 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

N13/379 Drinking fountains

Specification data - Water coolers Enhanced data

Flow rate

3 l/min.

Temperature of delivered water

Chilled.

Water inlet

0.25–0.4 MPa / 2.5–4 bar.

Power supply

230V.

Product Reference

Brita Vivreau Bottler V3105

Tap system. Fits into a cabinet of 800 x 600 x 600 mm (h x w x d).

Accessories/ Other requirements

Bottle washing tray.

Swing bottle.

Bottle with one-piece cap for improved hygiene. Available in different sizes, with personalization - consult manufacturer for details and insert requirements.

Twist bottle.

Available in 700ml size, with personalization - consult manufacturer for details and insert requirements.

Wave bottle.

Available in different sizes, with personalization - consult manufacturer for details and insert requirements.

Stackable fridge rack.
