Application

For walkway and sunscreen use.

Description

Aluminium dual purpose walkway/ sunscreen providing a versatile metal grating design that delivers excellent performance in a multitude of applications.

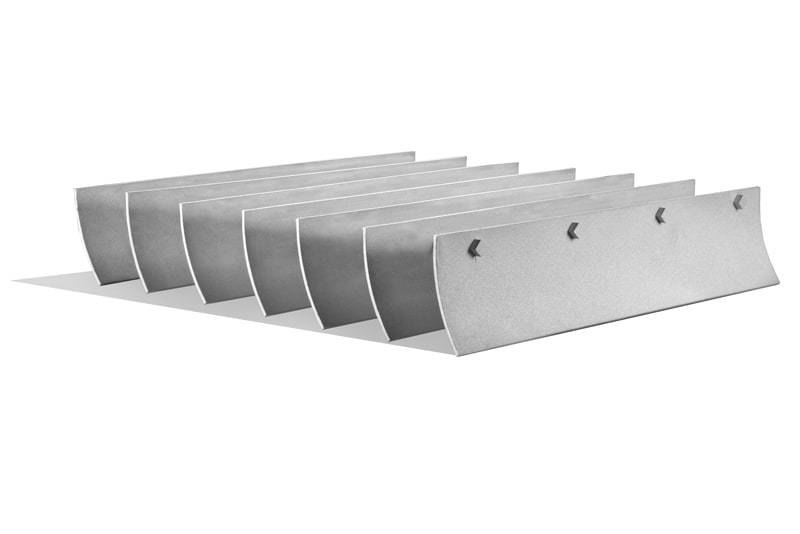

Brise Soleil uses curved alternate louvre extrusions to provide the same high performance as the Louvredek system, either as a combined walkway/ sunscreen or solely as a sunscreen. The system can be installed anywhere required: underfoot, on an angle or overhead.

It is an ecologically friendly product that is also lightweight yet extremely strong. Its modular connection system requires no welding for assembly on site.

Features and benefits:

  • Lightweight.
  • Environmentally friendly - 100% recyclable.
  • Maintenance free.
  • Aesthetically pleasing.
  • Non-toxic - inert material.
  • Non-combustible.
  • Corrosion-free.
  • Includes a lifetime guarantee.

Applications:

For walkway and sunscreen use.

General information
Features

Strong and durable, maintenance free, fireproof, eco friendly, solar protection, easy to install

Material

Aluminium alloy

WarrantyDescription

Lifetime guarantee

Uniclass 2015 Aluminium brise-soleil louvre blades (Pr_30_59_09_03)
Specification data
Product Reference

SS 3/73

Brise Soleil Sunscreen, louvre extrusions only, should not be walked on, 11 kg/m².

SWP 25/3/73

Brise Soleil Walkway, louvre extrusions and plain flat bars, 14.3 kg/m².

SWS 25/3/73

Brise Soleil Walkway, louvre extrusions and serrated flat bars, 14.6 kg/m².

Finish/ Colour

Mill

Standard.

Anodized

NEACO Fixing Clamps

Not required

Required

Standard product features

Material:

Aluminium alloy (6063 T4 and T6).

Bar:

  • Thickness: 3 mm (louvre extrusion has a width of 24 mm).
  • Spacing: Louvre extrusion: 60 mm; Flat bar: 100 mm.
  • Depth: Louvre extrusion: 73 mm; Flat bar: 25 mm.

Louvre extrusion angle:

62°.

Sun shade ratio:

1:1.88.
