Application

Suitable for use in various public locations and open spaces.

Description

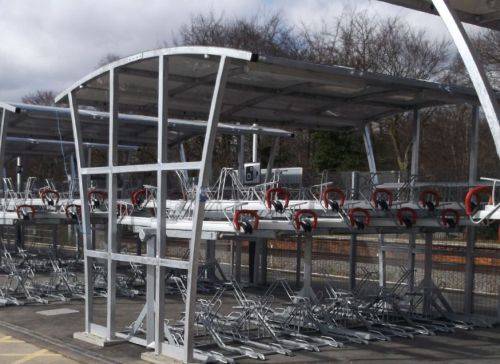

Two tier, double-sided shelter with curved roof, designed for use in conjunction with cycle stands.

Features and benefits:

  • Large enough to store up to 48 bikes using two tier cycle racks.
  • Modular design, which can be extended as required to suit project requirements.
  • Constructed with box section steel.
  • Structurally engineered to ensure safe loadings.
  • The hollow construction allows lighting and CCTV cables to run within the shelter legs to the underside of the roof.
  • A single-sided variant is available, consult manufacturer for details.
  • BREEAM and Code for Sustainable Homes compliant. Can help contribute towards gaining ENE8 Cycle Storage Credits when used in the appropriate situation, under the Code for Sustainable Homes.

Applications:

Suitable for use in various public locations and open spaces.

General information
Finish

Galvanized

Standard.

Galvanized and polyester powder-coated

Insert requirements.

Material

Box section: Galvanized steel, finished to BS EN ISO 1461

Fixing straps: Aluminium

End caps: Plastic

Nuts: Nyloc

Fixings: Bright zinc plated (BZP)

Roof: Powder coated aluminium composite panel

Size

Overall size (h x w x d): 3061 x 5000 x 3925 mm

Box section: 70 x 70 x 4 mm

Uniclass 2015 Open sided shelters (Pr_20_65_78_58)
Specification data
Product Reference

Brighton Two Tier Shelter Double Sided

Configuration

Insert drawing/ reference.

Finish

Galvanized

Standard.

Galvanized and polyester powder-coated

Insert requirements.

Fixing -
Fixing type

Aluminium

Galvanized steel

Fixing method

Root fixed

Surface fixed

Roof

Alupanel

Low maintenance. White to the underside to help reflect light.

Accessories/ Other requirements

Not required

LED lighting

Solar lighting

Standard product features

Material:

  • Box section: Galvanized steel, finished to BS EN ISO 1461.
  • Fixing straps: Aluminium.
  • End caps: Plastic.
  • Nuts: Nyloc.
  • Fixings: Bright zinc plated (BZP).
  • Roof: Powder coated aluminium composite panel.

Size:

  • Overall size (h x w x d): 3061 x 5000 x 3925 mm.
  • Box section: 70 x 70 x 4 mm.
