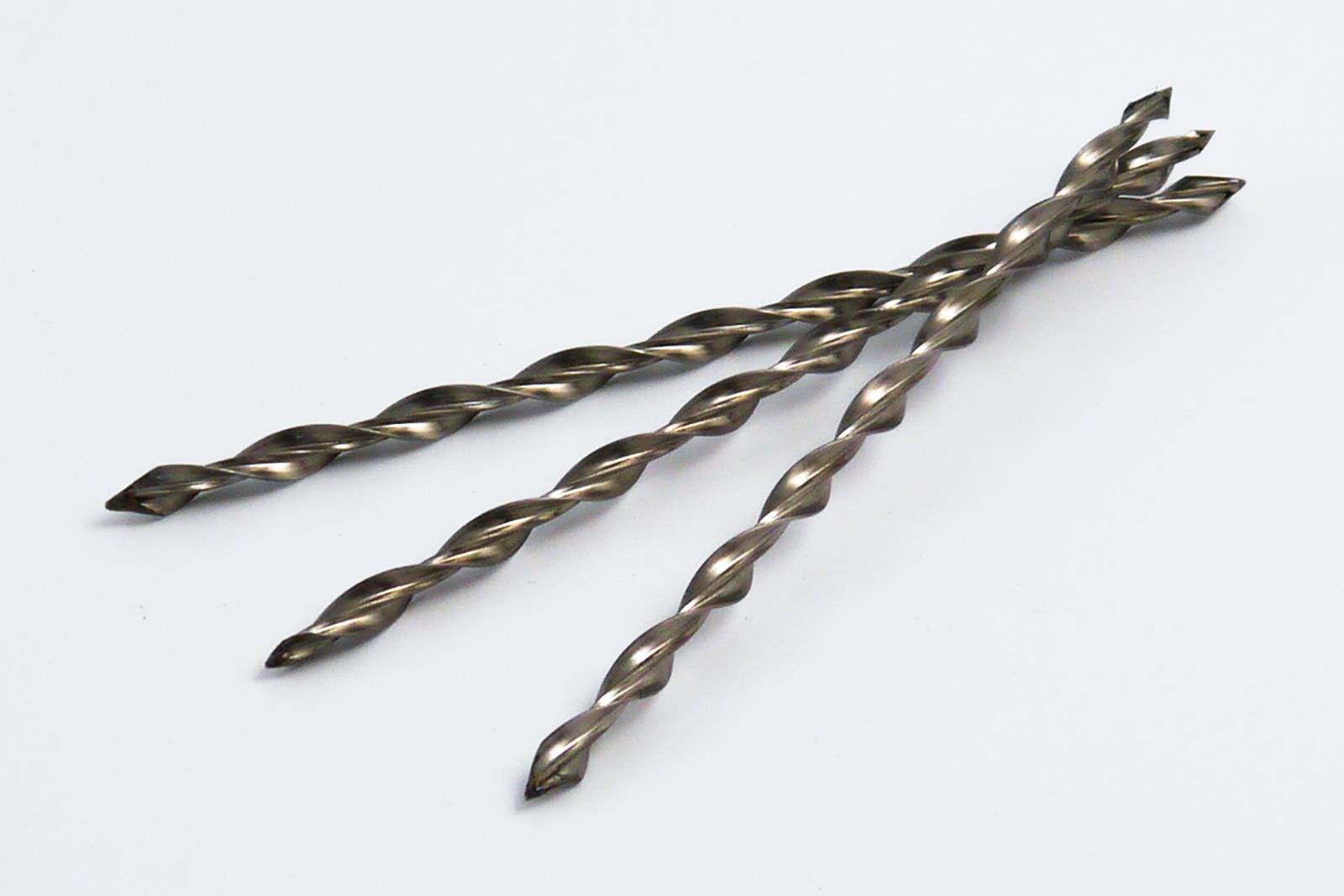

Brickfix DriveTie Helical Wall Tie

Description

Suitable for tying and pinning masonry to brick, block, concrete and timber.

To be applied by a suitably qualified contractor.

Benefits:

  • Quick and easy to install.
  • Helical design in grade 1.4301 stainless steel bar material. Grade 1.4401 available upon request.
  • Helical design ensures continuous drip, as well as accommodating normal building movement. Self-taps directly into a small pilot hole drilled into the substrate.
  • Provides a quick and simple stress-free fixing with the minimum of disturbance.
  • Unaffected by temperature or weather conditions.
  • Comprehensively tested and proven.

General information

Size

7 x 195 mm

7 x 220 mm

7 x 245 mm

8 x 170 mm

8 x 195 mm

Show more

Uniclass 2015

Pr_20_85_84_19 Cavity wall tiesPrimary

CAWS

C46/110 Inserting cavity wall ties

F30/214 Cavity wall ties

F30/215 Cavity wall ties used with partial fill insulation

F30/220 Wall ties

F30/225 Fixing ties in masonry cavity walls

F30/228 Fixing ties in masonry cavity walls with full fill cavity insulation

F30/233 Fixing ties in masonry cavity walls with partial fill cavity insulation

F30/24 Cavity wall ties

F30/25 Cavity wall ties used with partial fill insulation

F30/26 Wall ties

F30/28 Fixing ties in masonry cavity walls

F30/33 Fixing ties in masonry cavity walls with partial fill cavity insulation

F30/330 Damp proof courses

F30/48 Damp-proof course

Specification data - Cavity wall ties

Product Reference

Brickfix DriveTie Helical Wall Tie

Bar type

Grade 1.4301 stainless steel

Grade 1.4401 stainless steel

Size

7 x 195 mm

7 x 220 mm

7 x 245 mm

8 x 170 mm

8 x 195 mm

8 x 220 mm

8 x 245 mm

8 x 270 mm

8 x 170 mm

8 x 195 mm

8 x 220 mm

8 x 245 mm

8 x 270 mm

9 x 195 mm

9 x 220 mm

9 x 245 mm

Similar products from Safeguard Europe Ltd

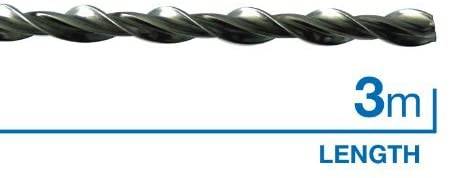

Brickfix Masonry Crack Stitching System
