Name: Brass Samson CE butt hinges
Brand: 7ULewr8aAUpnoo1xkxV21g
SKU: fgzZ2uDU1uWSwrCZM3DcZx

Uniclass 2015

Pr_30_36_36_79 Single axis door hingesPrimary

CAWS

P21/310 Single axis door hinges

P21/6 Single axis door hinges

Product Reference

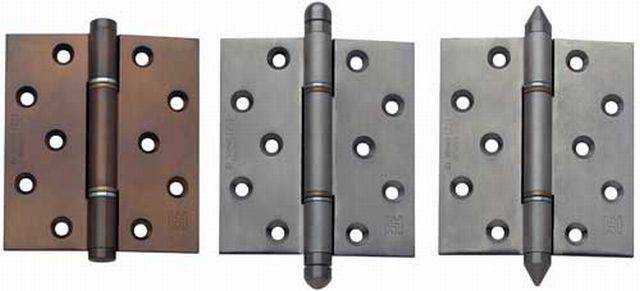

Brass Samson CE marked butt hinges

Type

926.23.002

Without finials, polished brass

926.23.010

Without finials, imitation bronze antique

926.23.040

Without finials, polished chrome plated

926.23.090

Without finials, pewter

926.23.171

Without finials, satin nickel plated

926.23.071

With rounded finials, satin nickel plated

926.23.271

With pointed finials, satin nickel plated

Accessories

5 mm diameter Hospa special fixing screws

980.15.900

Hydraulic damper unit

Standard product features

Brass Samson CE marked butt hinge:

Button tipped, high performance bearing hinge.

Dimensions: 100 x 90 mm x 3 mm thick.

Maximum adjusted door weight: 100 kg.

Available with or without finials.

BS EN 1935 grade 12.

CE marked and supplied with intumescent pads.

Suitable for use on fire doors up to one hour rated.

Maintenance-free.

25 year performance guarantee.

Finish: Available in 7 finishes.

Fixing screws included, to nearest matching finish available.

Product Options

Accessories:

Hospa special fixing screws:

Countersunk head with Pozidriv® cross slot.

Hydraulic damper unit:

Reference: 908.15.900.

Specifically designed to control the doors closing speed when used in conjunction with very heavy doors.

The stainless steel damper unit fits discretely into the hinge jamb and is fully adjustable.

Fixing screws included.
