BP45 Stepover Ladder
Verified by manufacturer 3 months ago
BP45-A-F
BP45-A-F

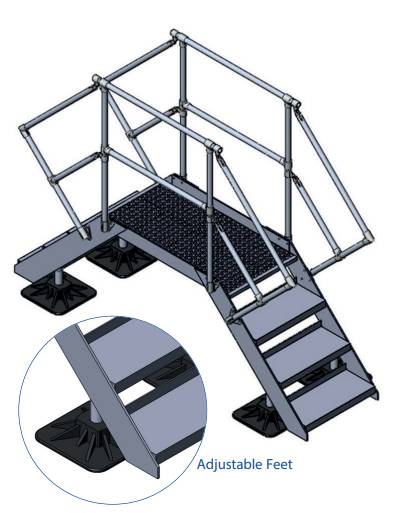

Free-standing or fixed step over ladders.
Application
For use wherever transit is required over ducting, parapet walls, conduit or any roof obstruction.
Description
Step Over Ladders are available freestanding or fixed to the ground and comply with the Work at Height Regulations as well as BS 5395-3 where applicable.
Features and benefits:
- Step over units give flexible access over a range of widths and heights while keeping the operative safe and enclosed in handrail at all times.
- Handrail on both sides of the ladder and platform.
Ladder:
- Width (overall): 600 mm.
- Angle (nominal): 45°.
General information
Finish | Galvanized Mill Manufacturer guidance[Finish, Aluminium: Mill; Steel: Galvanized] |
Material | Steel Aluminium |
Warranty description | One year |
Uniclass | |
CAWS | L35/340 High level walkways L35/350 Stairs |
Specification data - Working platform and walkway systems
Decking and flooring | |
Material | Open mesh alloy.Open mesh GRP.Open mesh steel.Solid alloy tread plate. |
Toe plates | Not required.Required. |
Handrail system | Top rail: 35 mm diameter tube; Midrail: 35 mm diameter tube. Height (nominal): Ladder: 900 mm; Platform: 1100 mm above surface of decking. |
Fixings | Ladder: Stainless steel grade A4; Platform: Internal dome fixings. |

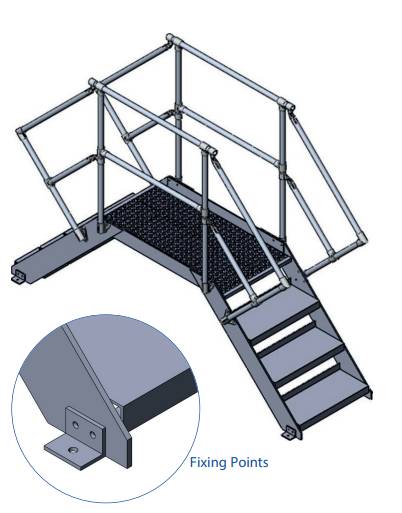

Form | Fixed; fixing points on corners. |
Material/ Finish | Mill finish aluminium. |
Sustainability data
Material | Steel Aluminium |
Literature

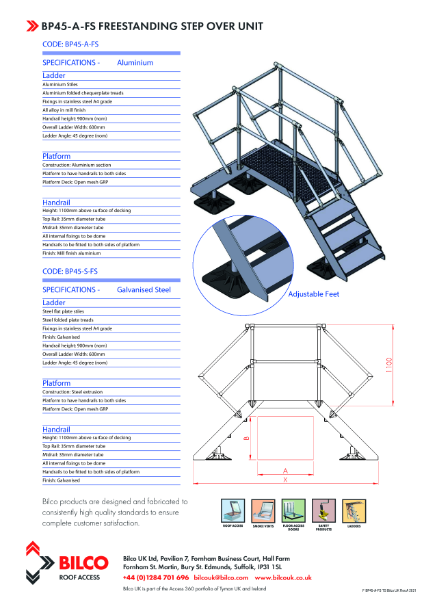

PRODUCT LITERATURE - FREE STANDING Step Over Ladders

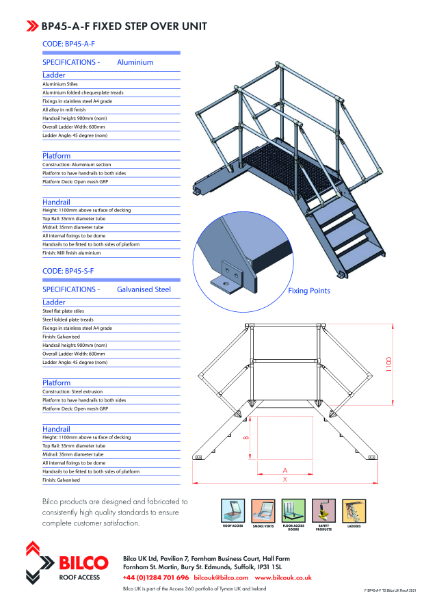

PRODUCT LITERATURE - FIXED Step Over Ladders

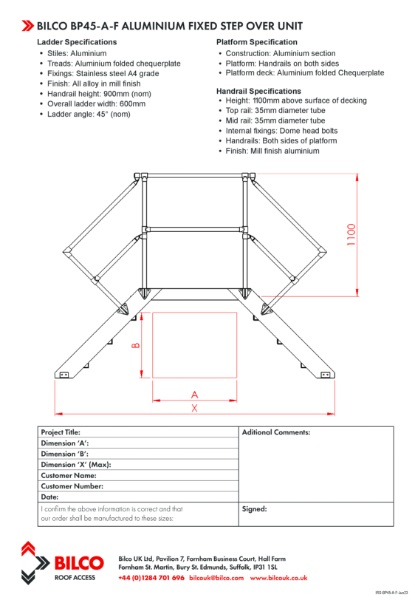

SPECIFICATION - ALUMINIUM FIXED Step Over Ladders
SPECIFICATION - ALUMINIUM FREE STANDING Step Over Ladders
