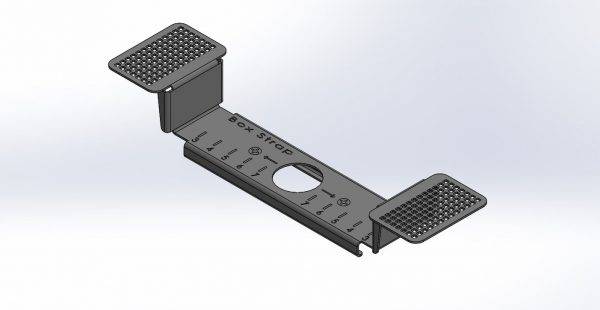

BOX STRAP Bracket - Steel Bracket
Verified by manufacturer 7 months ago
QA Certificate
Certificate type
Galvanized steel bracket, specifically designed to secure electrical metal backboxes on plasterboard walls
Application
- Specifically designed to secure electrical metal backboxes, ensuring a safe and efficient installation.
- Suitable for use with double or single metal electrical backboxes within closed stud walls.
Description
A galvanized steel bracket to support and secure double or single metal back boxes within stud walls, ensuring a safe and efficient installation
Features and benefits:
- Achieves a seamless finish when installing metal back boxes.
- Removes unwanted earth parallel paths during testing for an EIC.
- Flush finish.
- Fast and smooth installation.
- Reduces carbon footprint.
- Compatible with Hilti Fire stop putty pad CP617.
- Build baffle boxes with no clashes.
- Walls can be closed without cutting around back boxes.
- Strength tested for single layer and double later plasterboard.
General information
Color | Other Grey Clear |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle Other |
Length | 207 mm |
Width | 50 mm |
Height | 34 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P20/25 Metal P20/150 Metal P20/66 Bracket supports P20/425 Bracket supports |
Specification data - Carbon steel brackets
Factory finish | Pre-galvanized. |
Colour | Natural (steel). |
Section size | 207 x 50 x 34 mm.Guidance for specification option:
Manufacturer guidanceLength x width x height. |
Length | 207 mm. |
Thickness | 1 mm. Manufacturer guidanceMaterial thickness. |
Steel | DX54 + Z100 to EN10346-2015. Manufacturer guidanceSteel specification. |
Weight | 0.082 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.15 kg CO₂ eq/kg Self declared Guidance for specification option: Reduces carbon footprint by 2,843 kg of CO₂ across 200 apartments by using the alternative bracket. Visit the Boxstrap website for more information. |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
