Bowtop Railing Panel
Verified by manufacturer 1 month ago
900 mm high
900 mm high
Bow top fencing.
Application
Suitable for:
- Parks and public spaces.
- Playgrounds and recreational areas.
- Schools, colleges and universities.
- Residential properties and housing estates.
- Tourist resorts and hotels.
- Historical sites and heritage locations.
- Retail complexes.
Description
Bow top fencing panels available in a range of heights and styles to suit individual requirements.
Features and benefits:
- Manufactured in accordance with BS 1722-9.
- Security fixings included.
- Stepping cleats included.
- Low to medium level security.
- Gates in any width or height can be manufactured to suit requirements.
- Polyester powder-coated option available.
- Laser cut and robotically welded using modern folding and bending machines.
General information
Color | Green Yellow Black White Red |
Finish | Galvanized Powder-coated |
Material | Metal |
Shape | Rectangle |
Width | 2720 mm |
Height | 600 mm 900 mm 1000 mm 1200 mm 1800 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q40/340 Steel vertical bar fencing Q40/30 Proprietary fencing Q41/135 Proprietary protective barriers Q41/130 Protective barriers Q41/110 Pedestrian restraint systems in metal Q40/430 Proprietary fencing Q41/130 Protective barriers Q41/110 Pedestrian restraint systems in metal |

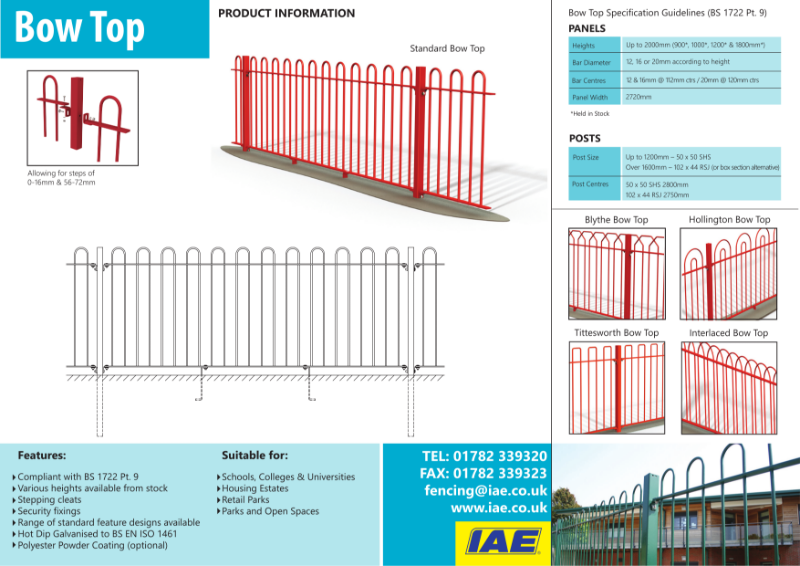

Specification data - Metal post and rail barrier systems
Standard | To BS 1722-9. |
Posts | 50 x 50 mm (SHS).Guidance for specification option: Up to 1200 mm. |
Rails | Standard bow top.Blythe bow top.Hollington bow top.Tittesworth bow top.Interlaced bow top. |
Site applied finishes | Hot dip galvanized.Guidance for specification option: To BS EN ISO 1461. Polyester powder-coated.Guidance for specification option: Insert colour requirement. |
System accessories | Not required.Gate.Guidance for specification option: Can be manufactured to suit any width, height and design. Contact manufacturer for details. |
Bar diameter | 12 mm. Guidance for specification option: For 112 mm bar centres. 16 mm. Guidance for specification option: For 112 mm bar centres. 20 mm. Guidance for specification option: For 120 mm bar centres. Manufacturer guidanceAccording to height. |
Bar centres: | 112 mm. Guidance for specification option: 12 and 16 mm bar diameter. 120 mm. Guidance for specification option: 20 mm bar diameter. |
Post centres | 2800 mm. Guidance for specification option: 50 x 50 SHS. |
Dimensions | 900 x 2720 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/unit Self declared |
Recyclability | 100 |
